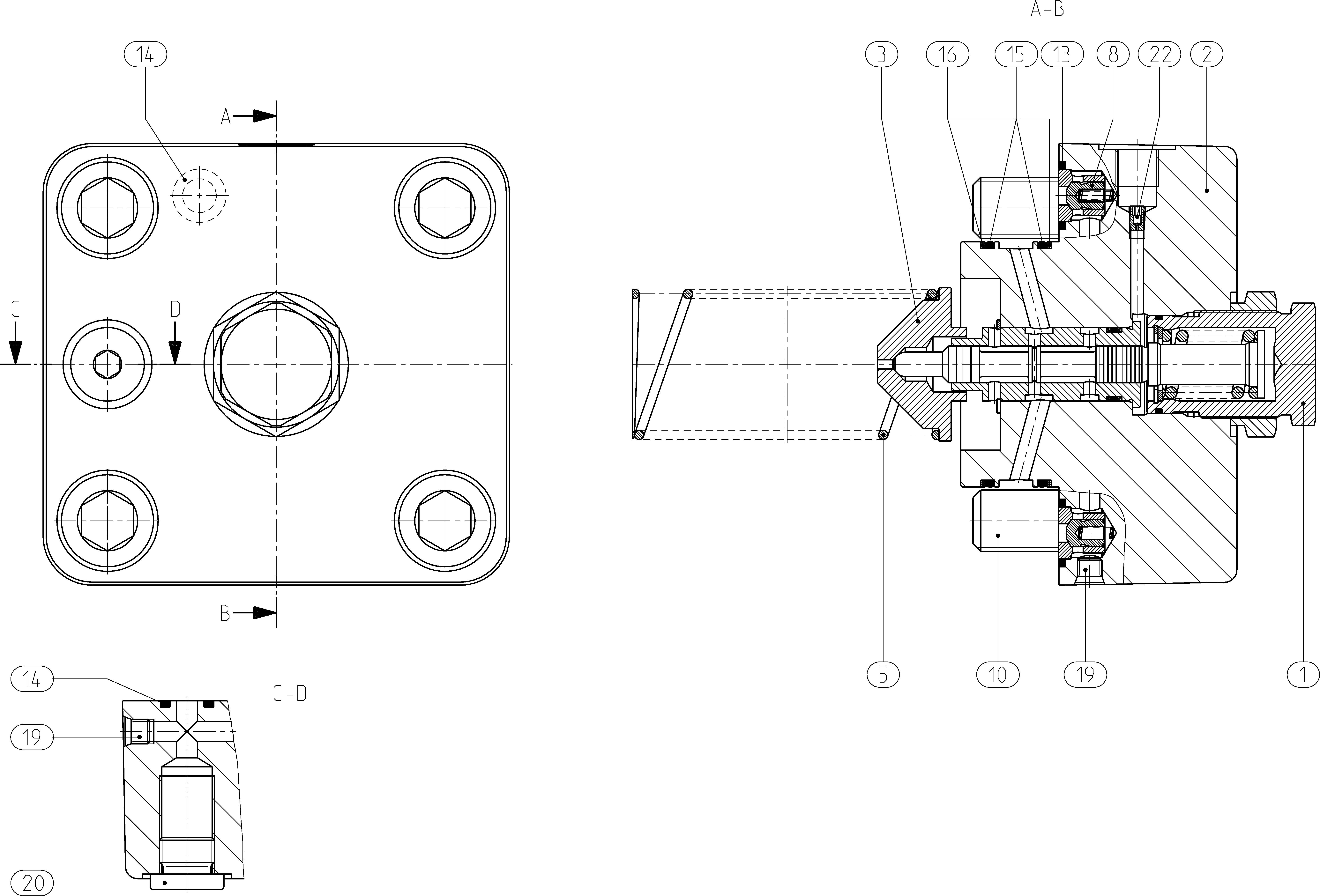

Baugruppe
CONTROL PARTR902409358
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910926601 | VALVE INSERT | 1 | ||
| R910947817 | CONTROL HOUSING | 1 | ||
| R910947042 | SPRING DISK | 1 | ||
| R910947869 | COMPRESSION SPRING | 1 | ||
| R910974764 | HY-CHECK VALVE | 2 | ||
| R910705799 | SOCKET HEAD CAP SCREW | 4 | ||
| R910515574 | O-RINGD | 2 | ||
| R910518336 | O-RINGD | 4 | ||
| R910910194 | O-RINGD | 2 | ||
| R910948533 | BACKUP RINGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| R910923856 | NOZZLE | 1 |
