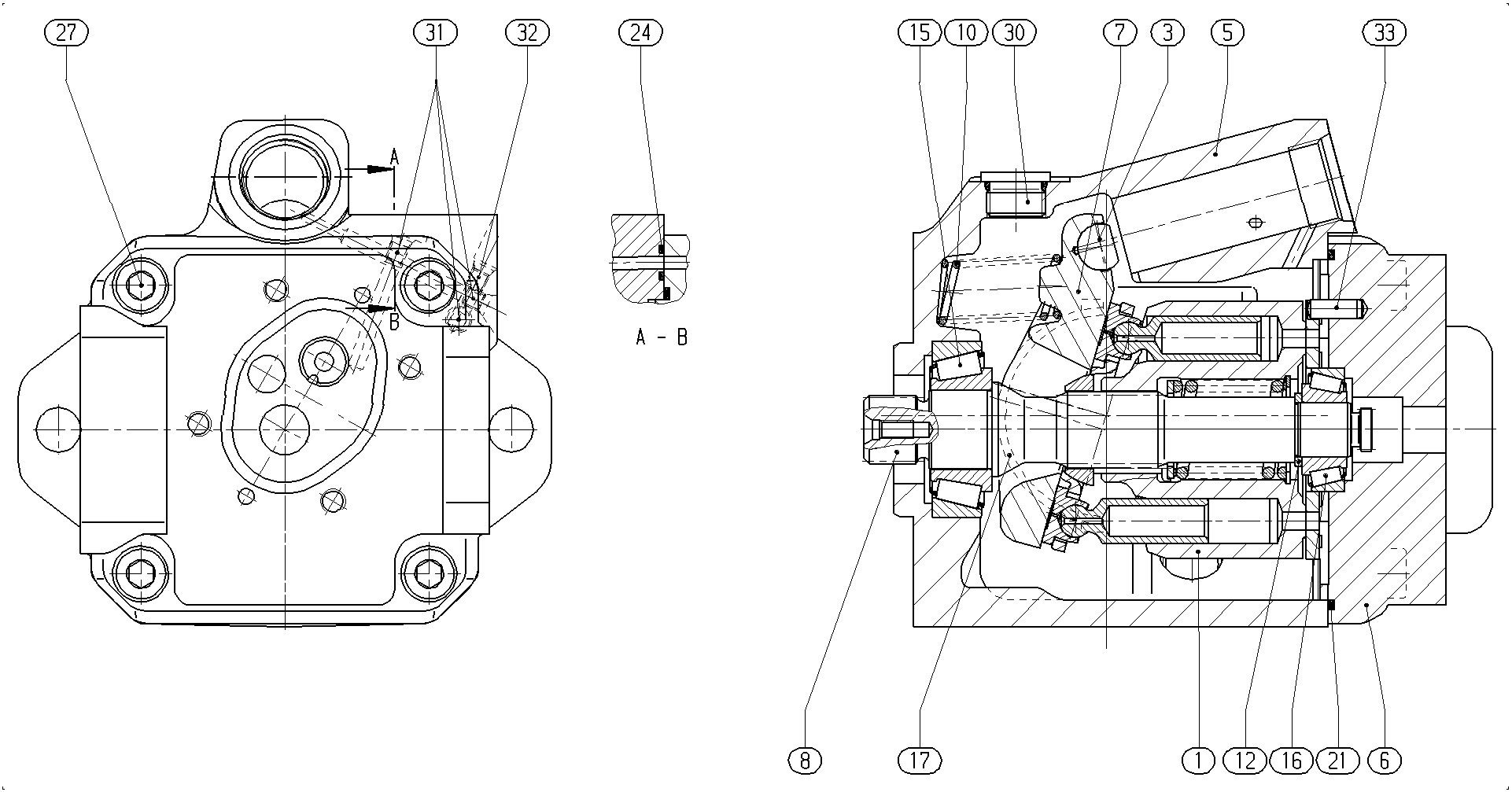

Baugruppe
BASE UNITR902412950
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902439597 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902412473 | PUMP HOUSING | 1 | ||
| R902412570 | CONNECTION PLATE | 1 | ||
| R902411869 | SWASH PLATE | 1 | ||
| R902412529 | DRIVE SHAFT | 1 | ||
| R910947314 | COMPRESSION SPRING | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902410506 | BEARING SHELL | 2 | ||
| R913052046 | O-RINGD | 1 | ||
| R910942134 | R-RINGD | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910978752 | BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
