Baugruppe

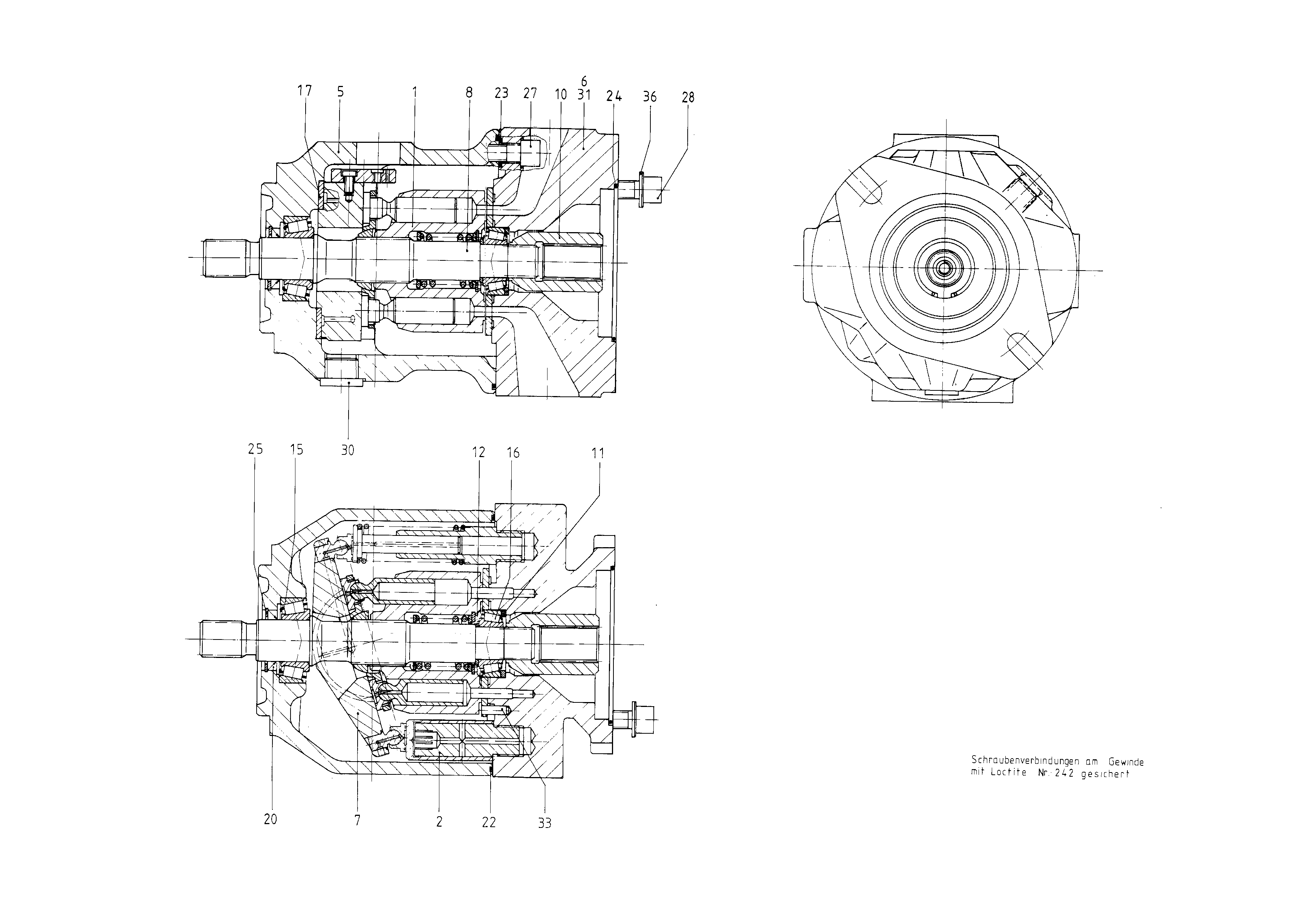

BASE UNITR902416010
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902437376 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910974898 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902546053 | PUMP HOUSING | 1 | ||
| R910997146 | CONNECTION PLATE | 1 | ||
| R910961029 | SWASH PLATE Stückliste der Baugruppe →L | 1 | ||
| R902417395 | DRIVE SHAFT | 1 | ||
| R910943529 | SPLINED COUPLING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| 14 | R910987963 | STOP RING | 1 | |
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| R910793698 | O-RINGD | 1 | ||
| R913052111 | R-RINGD | 4 | ||
| R910357049 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 |
