Baugruppe

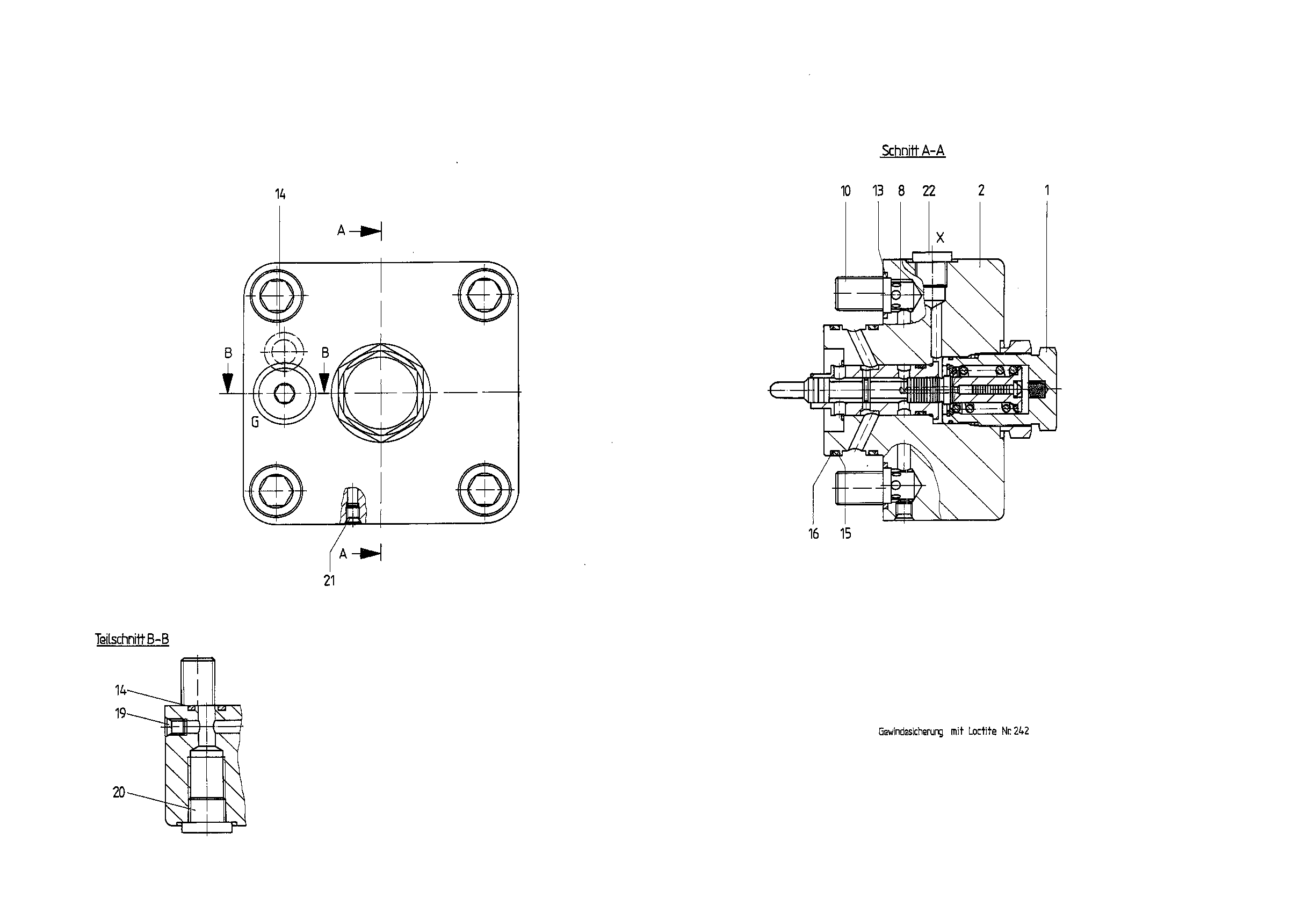

CONTROL PARTR902416869
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902559863 | VALVE INSERT | 1 | ||
| R910931367 | CONTROL HOUSING | 1 | ||
| 8 | R910974764 | HY-CHECK VALVE | 2 | |
| 10 | R909153934 | SOCKET HEAD CAP SCREW | 4 | |
| 13 | R910515574 | O-RINGD | 2 | |
| 14 | R910518336 | O-RINGD | 4 | |
| 15 | R910930814 | O-RINGD | 2 | |
| 16 | R910927882 | BACKUP RINGD | 2 | |
| 19 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 20 | R909156651 | SCREW PLUGD | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 22 | R909153930 | SCREW PLUG | 1 |
