Baugruppe

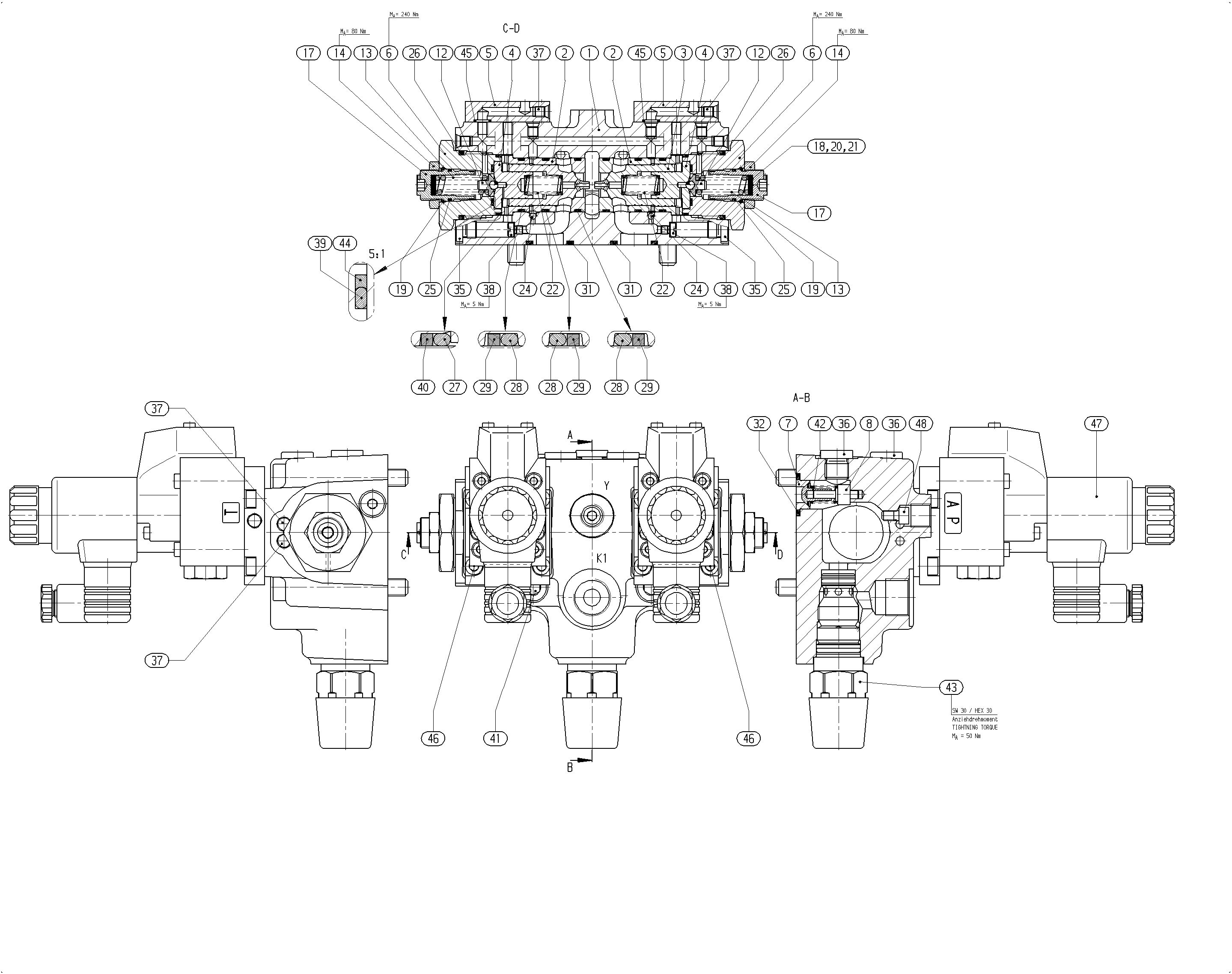

VALVE BLOCKR902425624
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910927575 | HOUSING | 1 | ||
| R902488949 | VALVE INSERT | 2 | ||
| R910927646 | INTERMEDIATE PLATE | 2 | ||
| R910754633 | SCREW PLUG | 2 | ||
| R910754668 | CONE SEAT | 1 | ||
| R910754641 | GUIDE PIN | 1 | ||
| R910754692 | DUMMY | 2 | ||
| R910754706 | COMPRESSION SPRING | 2 | ||
| R910754714 | NUT | 2 | ||
| R910754722 | ADJUSTING SCREW | 2 | ||
| 18 | R910757489 | SHIM RING | 4 | |
| 19 | R910754757 | SNAP RING | 2 | |
| 20 | R910754773 | SHIM RING | 2 | |
| 21 | R910754773 | SHIM RING | 2 | |
| R910754781 | COMPRESSION SPRING | 2 | ||
| R910754803 | BALL | 2 | ||
| R910514993 | O-RINGD | 2 | ||
| R910111414 | O-RINGD | 2 | ||
| R910759228 | O-RINGD | 2 | ||
| R910754811 | O-RINGD | 6 | ||
| R910754978 | BACKUP RINGD | 6 | ||
| R910102202 | O-RINGD | 2 | ||
| R910111147 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| R909151979 | SCREW PLUGD | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R910100579 | NOZZLE | 2 | ||
| R910919497 | O-RINGD | 2 | ||
| R910900613 | BACKUP RINGD | 2 | ||
| 41 | R910295396 | SOCKET HEAD CAP SCREW | 4 | |
| R910754838 | CHECK VALVE | 1 | ||
| R900422817 | PRESSURE RELIEF VALVE | 1 | ||
| R910919519 | BACKUP RINGD | 2 | ||
| R910942134 | R-RING | 4 | ||
| R910109282 | SOCKET HEAD CAP SCREW | 8 | ||
| R902410397 | SEAT VALVE Stückliste der Baugruppe →L | 2 | ||
| R910109258 | SOCKET HEAD CAP SCREW | 1 |
