Baugruppe

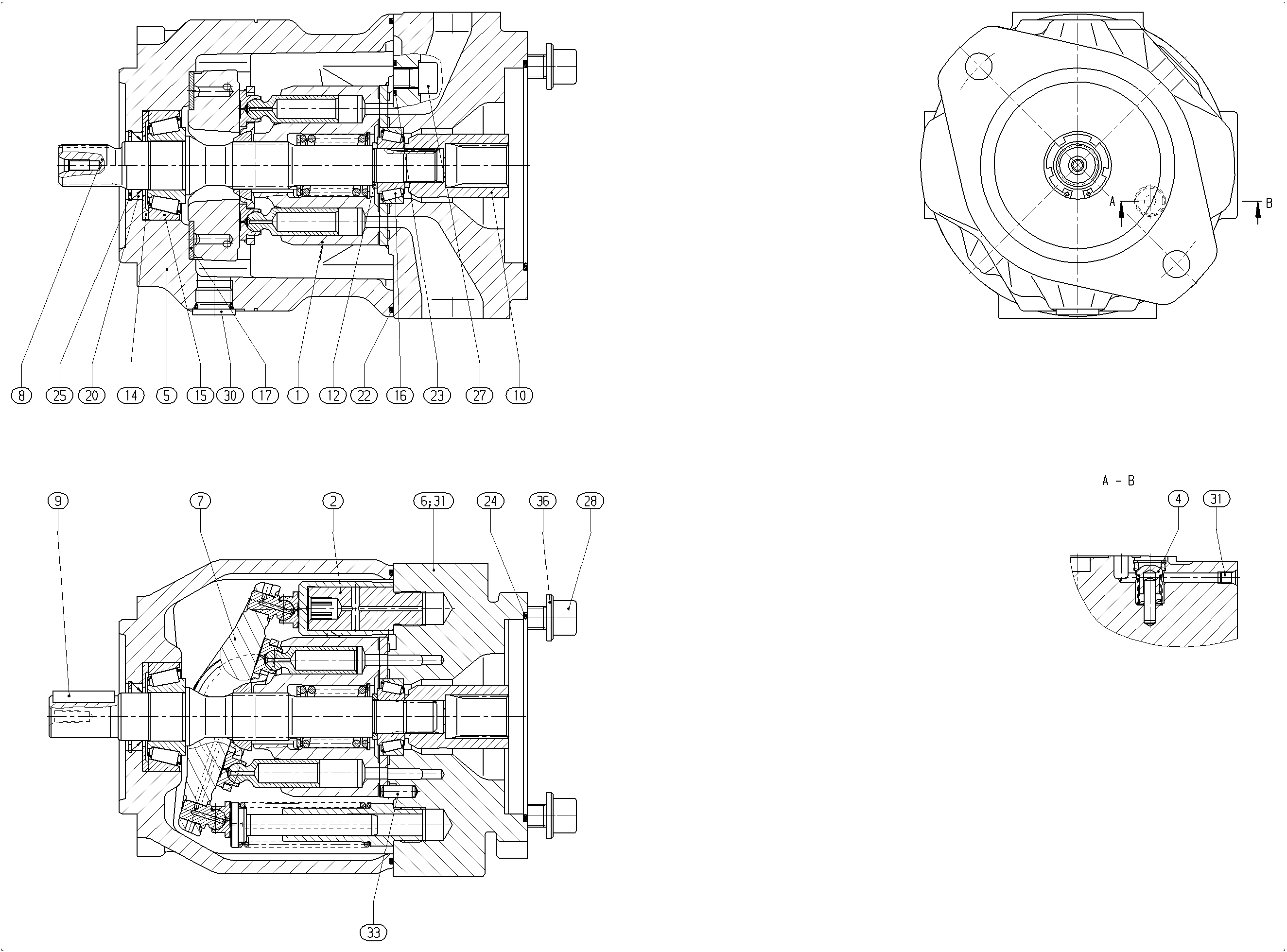

BASE UNITR902425966
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902439596 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910911162 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902405844 | CHECK VALVE | 1 | ||
| R902550207 | PUMP HOUSING | 1 | ||
| R902425925 | CONNECTION PLATE | 1 | ||
| R910960999 | SWASH PLATE | 1 | ||
| R902417369 | DRIVE SHAFT | 1 | ||
| R910986299 | SPLINED COUPLING | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910987890 | STOP RING | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910988019 | SHAFT SEALING RINGD | 1 | ||
| R910730041 | O-RINGD | 1 | ||
| R913052108 | R-RINGD | 4 | ||
| R910111945 | O-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 |
