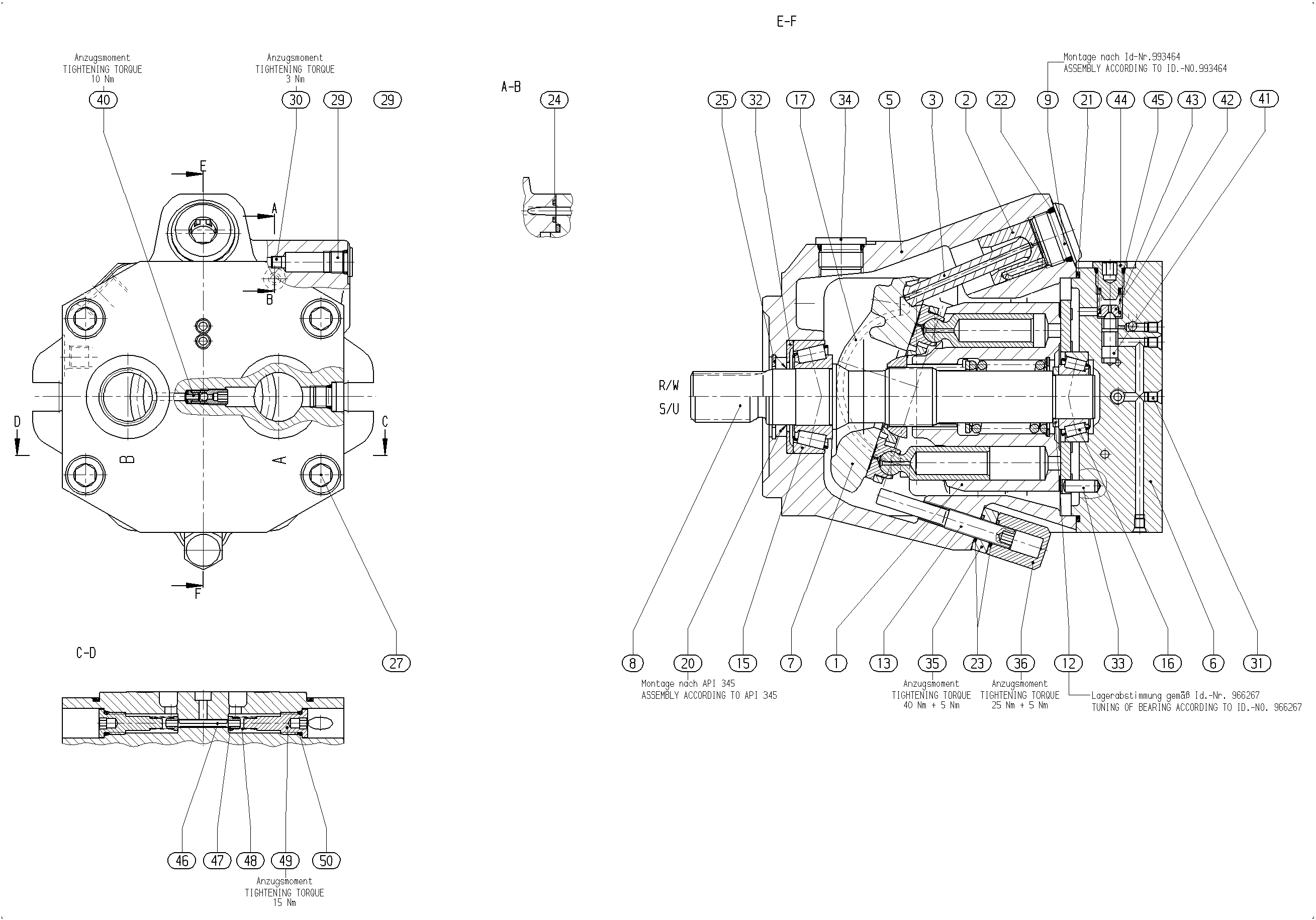

Baugruppe
BASE UNITR902427175
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902435770 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910993694 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902427042 | MOTOR HOUSING | 1 | ||
| R902426915 | CONNECTION PLATE | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| R902408467 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Stückliste der Baugruppe →L | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910933408 | STOP SCREW | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933793 | BEARING SHELL | 2 | ||
| R910985471 | SHAFT SEALING RING | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R910942133 | R-RING | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110248 | SOCKET HEAD CAP SCREW | 4 | ||
| R910764647 | SCREW PLUG | 3 | ||
| R910436941 | NOZZLE | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910987963 | STOP RING | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R902424169 | SHUTTLE VALVE Stückliste der Baugruppe →L | 1 | ||
| R909426137 | CONTROL PISTON | 1 | ||
| R909426138 | SPRING DISK | 1 | ||
| R909432802 | COMPRESSION SPRING | 1 | ||
| R902427088 | SCREW PLUG | 1 | ||
| R909153837 | O-RING | 1 | ||
| R909432535 | FLUSHING NEEDLE | 1 | ||
| R909449269 | SPRING DISK | 2 | ||
| R909432675 | COMPRESSION SPRING | 2 | ||
| R902427087 | SCREW PLUG | 2 | ||
| R909154479 | O-RING | 2 |
