Baugruppe

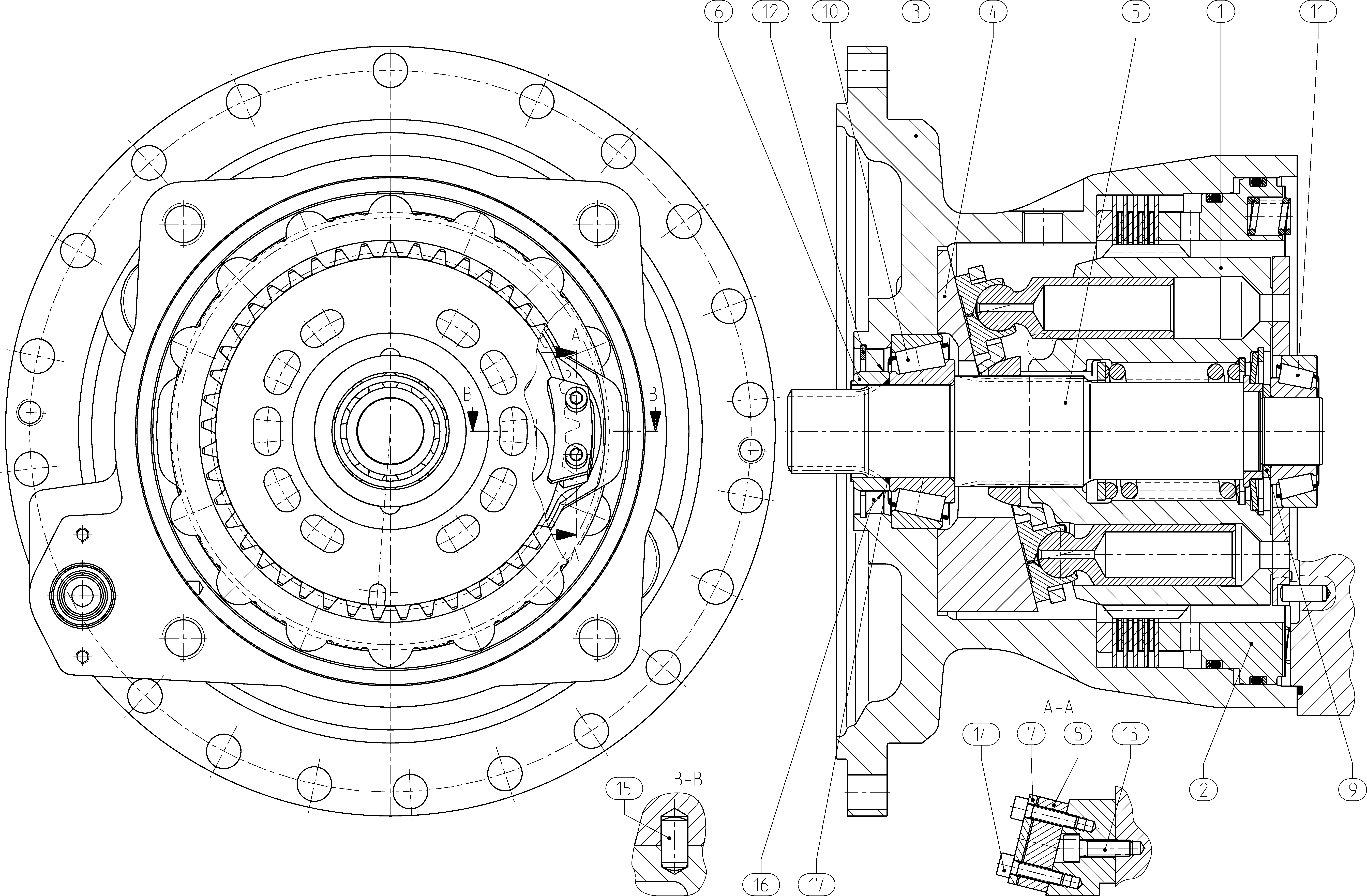

BASE UNITR902431558
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910998858 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902430953 | THRUST RING | 1 | ||
| R902431552 | MOTOR HOUSING | 1 | ||
| 4 | R902549608 | CAM PLATE | 1 | |
| 5 | R910997734 | DRIVE SHAFT | 1 | |
| R910998573 | STOP SLEEVE | 1 | ||
| R902574076 | SEGMENT | 2 | ||
| R910998276 | SPACER SEGMENT | 2 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R910720232 | TAPERED-ROLLER BEARING | 1 | |
| R909832149 | RETAINING RING | 1 | ||
| 13 | R913001596 | SOCKET HEAD CAP SCREWD | 2 | |
| 14 | R913001593 | SOCKET HEAD CAP SCREWD | 4 | |
| R910924011 | STRAIGHT PIND | 2 | ||
| R909831179 | ROTARY SHAFT LIP SEAL | 1 | ||
| 17 | R902400984 | O-RING | 1 | |
| 18 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
