Baugruppe

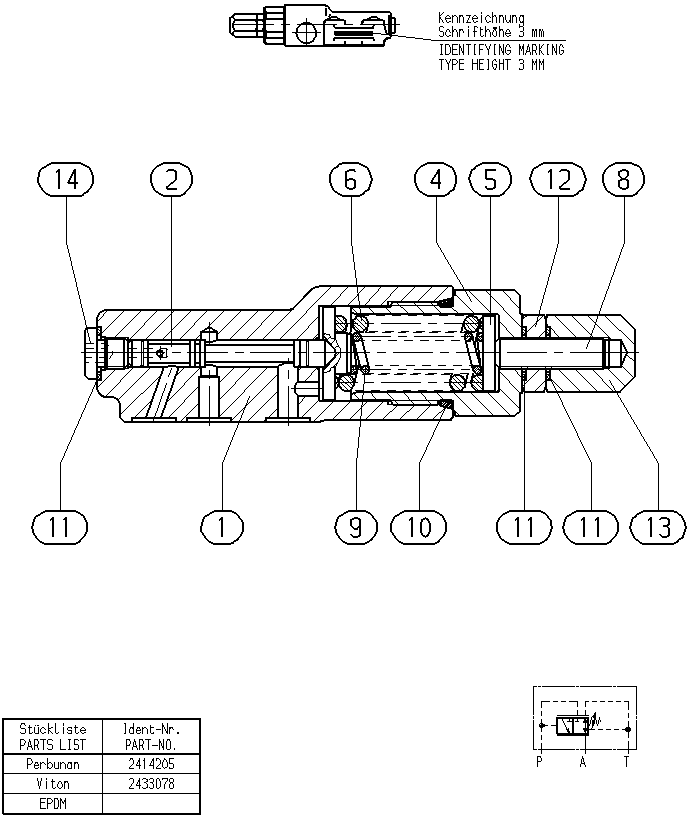

CONTROL VALVER902433078
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910991470 | VALVE HOUSING | 1 | ||
| R910991469 | VALVE SPOOL | 1 | ||
| R910707023 | SPRING DISK | 1 | ||
| R910913809 | SCREW PLUG | 1 | ||
| R910900389 | WASHER | 1 | ||
| R910707031 | COMPRESSION SPRING | 1 | ||
| R910913807 | SETSCREW | 1 | ||
| R910911509 | COMPRESSION SPRING | 1 | ||
| R910919322 | O-RINGD | 1 | ||
| R910642827 | BONDED SEAL RINGD | 3 | ||
| R910913806 | NUT | 1 | ||
| R910913805 | CAP NUT | 1 | ||
| R910933812 | SCREW PLUG | 1 |
