Baugruppe

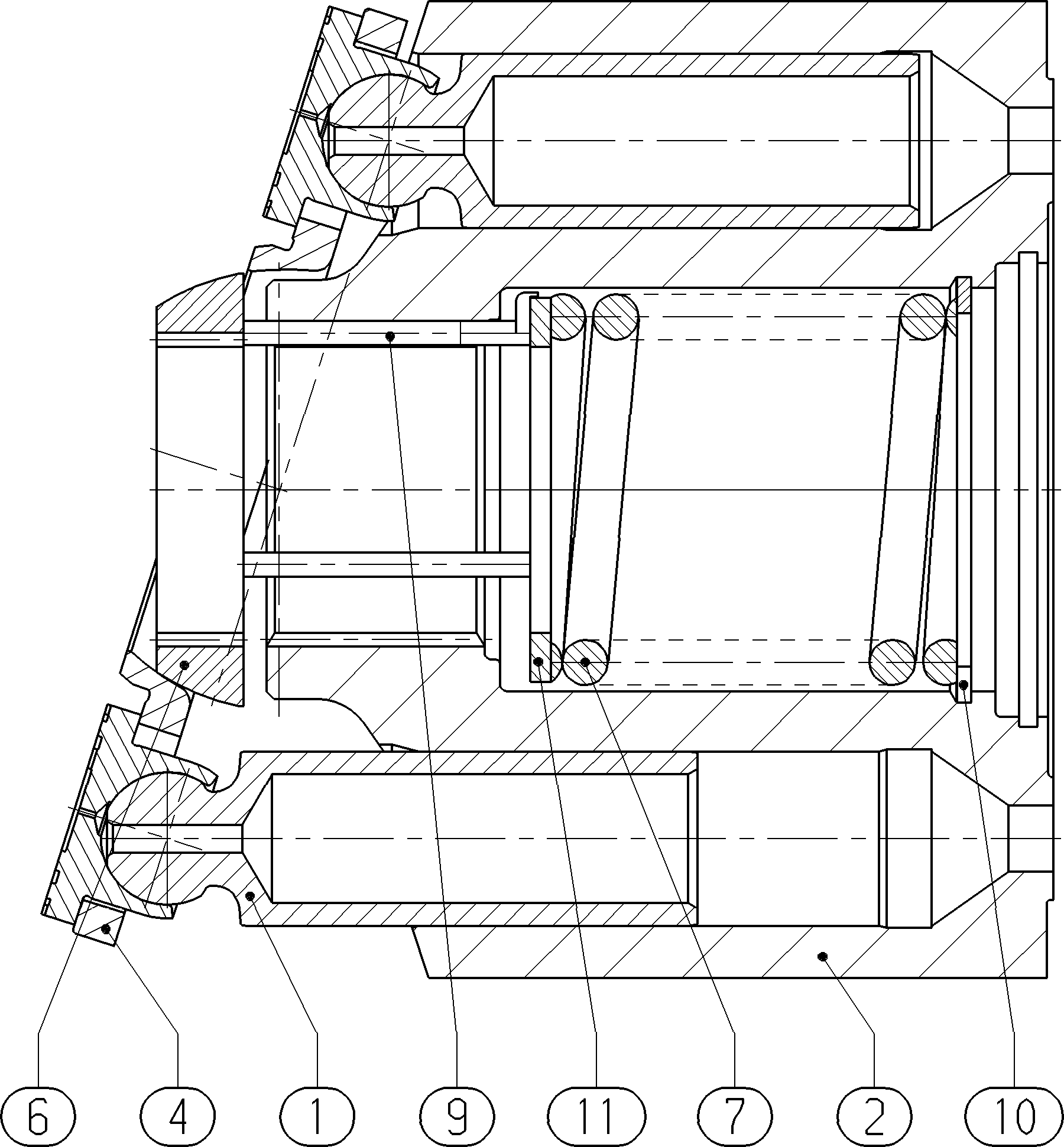

ROTARY GROUPR902436909
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902436308 | PISTON PAD Stückliste der Baugruppe →L | 9 | ||
| R902420835 | CYLINDER | 1 | ||
| R902433261 | RETAINING PLATE | 1 | ||
| R902443451 | RETAINING BALL | 1 | ||
| R910918171 | COMPRESSION SPRING | 1 | ||
| R910917728 | PRESSURE PIN | 3 | ||
| R910918189 | RETAINING RING | 1 | ||
| R902423609 | SUPPORTING DISC | 1 |
