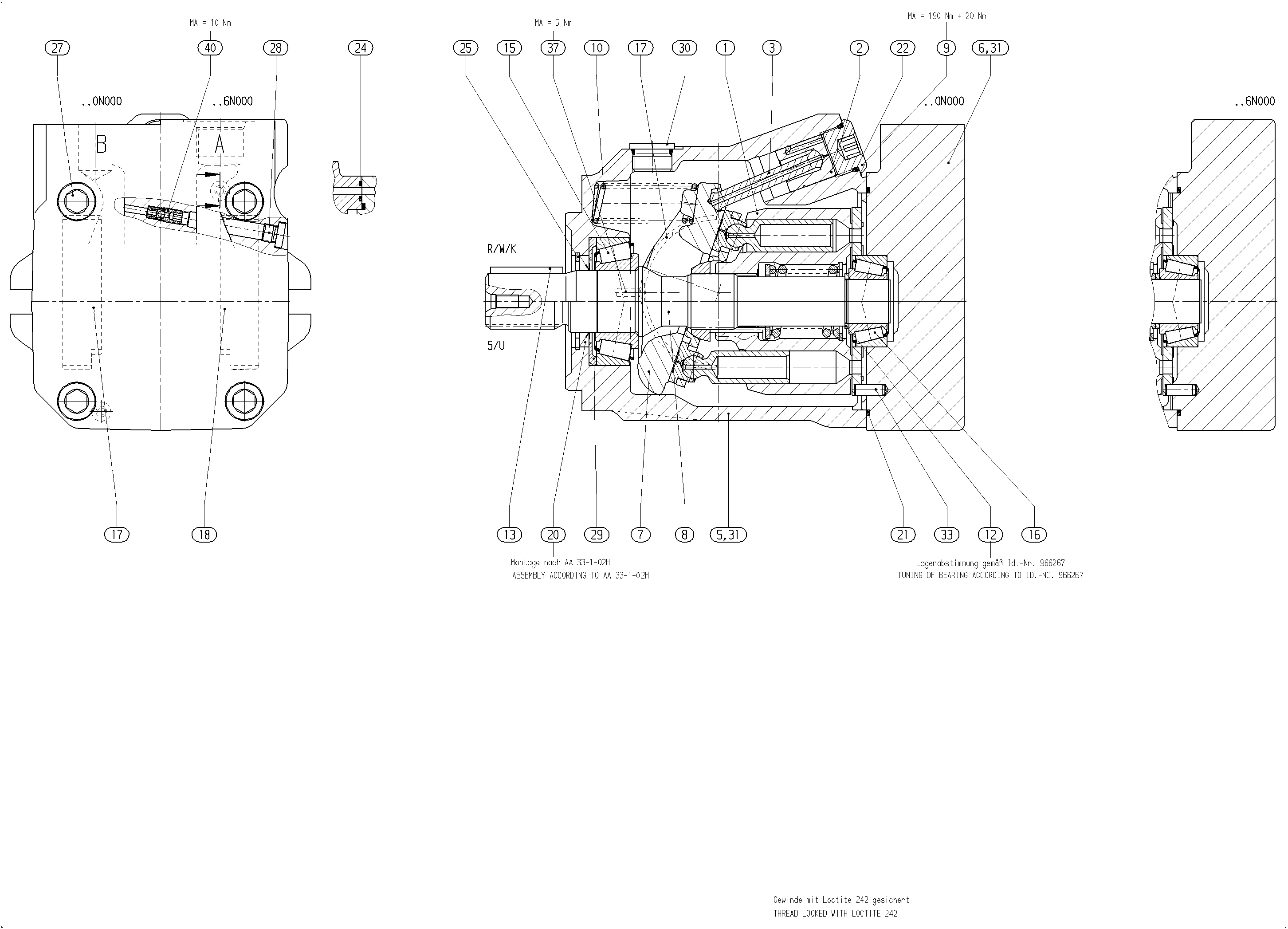

Baugruppe
BASE UNITR902439112
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902409705 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| 5 | R902419469 | PUMP HOUSING | 1 | |
| 6 | R902439101 | CONNECTION PLATE | 1 | |
| 7 | R902405055 | SWASH PLATE | 1 | |
| R910992482 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Stückliste der Baugruppe →L | 1 | ||
| 10 | R910973548 | COMPRESSION SPRING | 1 | |
| 12 | R910966528 | ADJUSTMENT SHIM | 1 | |
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R902413637 | BEARING SHELL | 1 | ||
| R902413636 | BEARING SHELL | 1 | ||
| 20 | R909831661 | SHAFT SEALING RINGD | 1 | |
| 21 | R913050498 | O-RING | 1 | |
| R910942133 | R-RING | 2 | ||
| R910941918 | RETAINING RING | 1 | ||
| R909831123 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUG | 1 | ||
| 29 | R910989235 | STOP RING | 1 | |
| 30 | R910967343 | SCREW PLUG | 1 | |
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 4 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R902424169 | SHUTTLE VALVE Stückliste der Baugruppe →L | 1 |
