Baugruppe

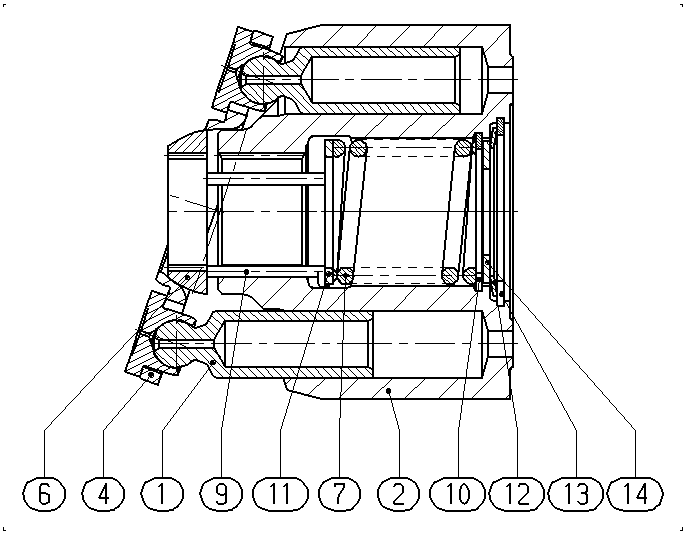

ROTARY GROUPR902444394
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902415963 | PISTON PAD | 9 | ||
| R910986393 | CYLINDER | 1 | ||
| R902400567 | RETAINING PLATE | 1 | ||
| R902400723 | RETAINING BALL | 1 | ||
| R902400724 | COMPRESSION SPRING | 1 | ||
| R902400725 | PRESSURE PIN | 3 | ||
| R902400726 | V-RING | 1 | ||
| R902400727 | SUPPORTING DISC | 1 | ||
| R909074125 | CUP-SPRING STACK | 0.25 | ||
| R909083403 | RETAINING RING | 1 | ||
| R902436334 | SHIM RING | 1 |
