Baugruppe

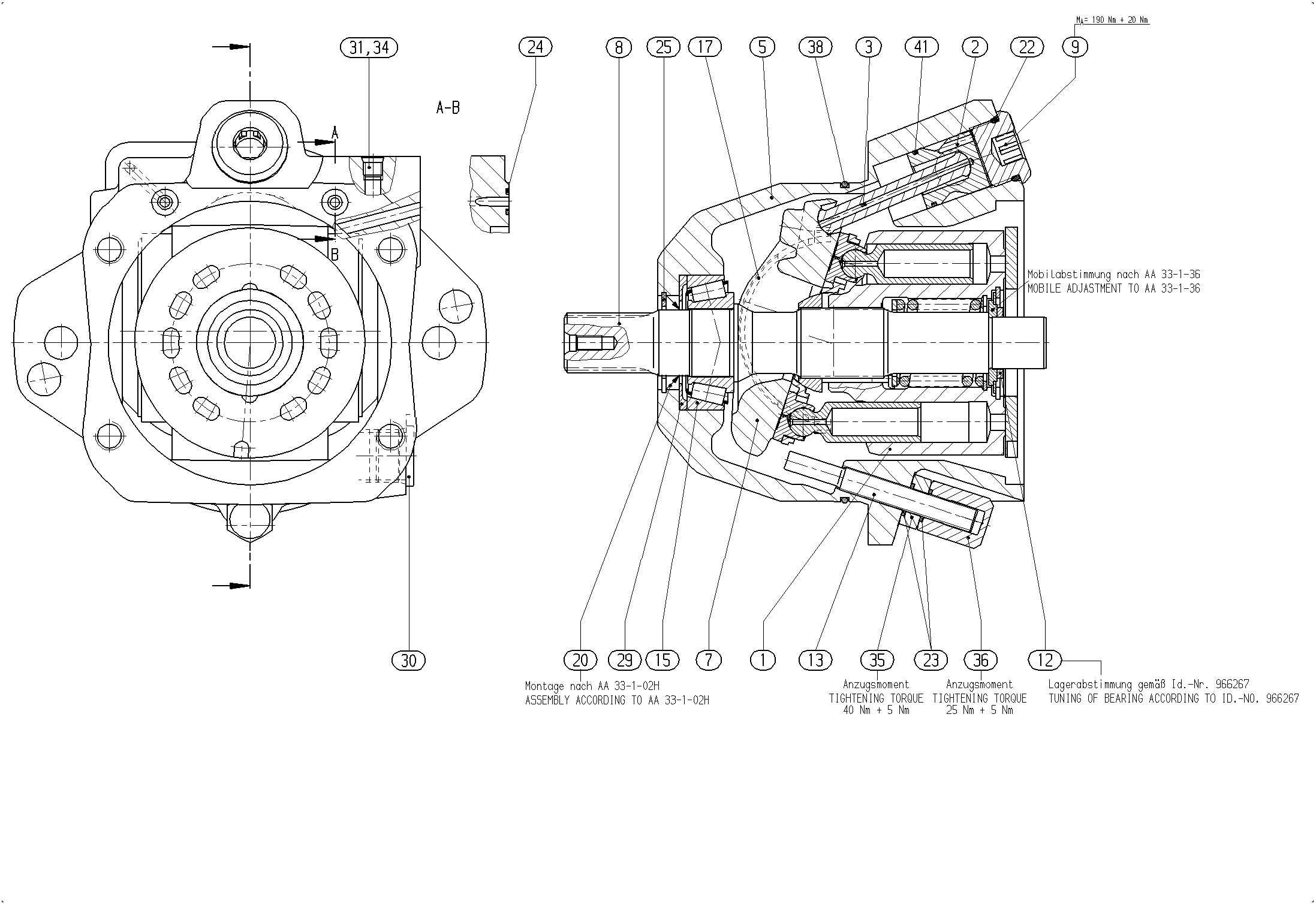

BASE UNITR902445336
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910969289 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R910994095 | MOTOR HOUSING | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| R902417390 | DRIVE SHAFT | 1 | ||
| R902402379 | SCREW PLUG | 1 | ||
| 12 | R910938955 | ADJUSTMENT SHIM | 1 | |
| 13 | R910933408 | STOP SCREW | 1 | |
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910933792 | BEARING SHELL | 2 | ||
| 20 | R910985471 | SHAFT SEALING RINGD | 1 | |
| R910965435 | O-RINGD | 1 | ||
| 23 | R910804886 | O-RINGD | 2 | |
| R910942133 | R-RING | 2 | ||
| R902403814 | RETAINING RING | 1 | ||
| 29 | R910987963 | STOP RING | 1 | |
| R910967343 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910977645 | BREAK-OFF PLUG | 1 | ||
| 35 | R910998240 | NUT | 1 | |
| R910961839 | CAP NUT | 1 | ||
| R910928325 | O-RING | 1 | ||
| R909156962 | R-RING | 1 |
