Baugruppe

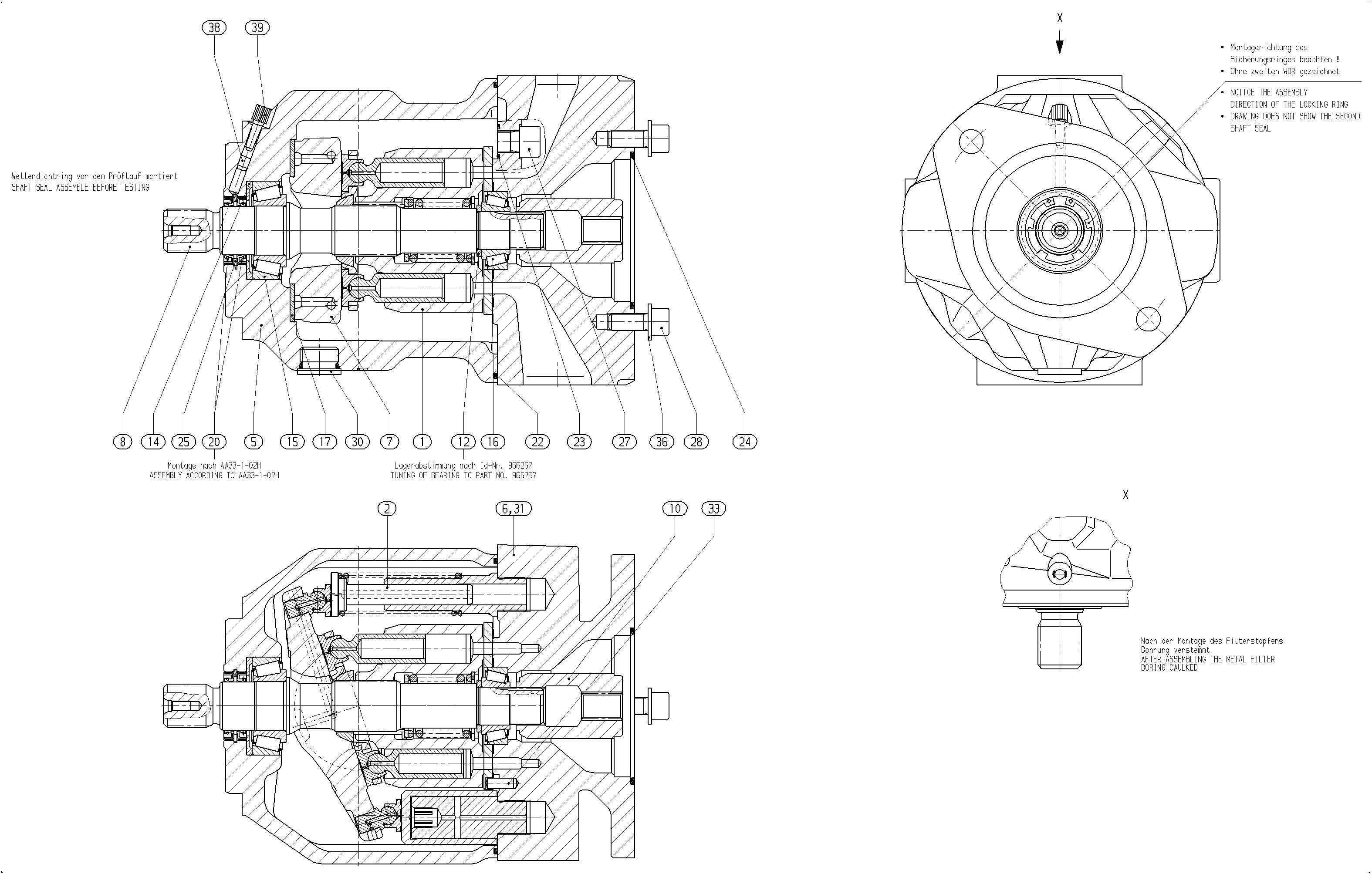

BASE UNITR902447206
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902435271 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910910852 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902546039 | PUMP HOUSING | 1 | ||
| R902413103 | CONNECTION PLATE | 1 | ||
| R910961024 | SWASH PLATE Stückliste der Baugruppe →L | 1 | ||
| R902416901 | DRIVE SHAFT | 1 | ||
| R910943529 | SPLINED COUPLING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 2 | ||
| R910704997 | O-RINGD | 1 | ||
| R913052114 | R-RINGD | 4 | ||
| R910111945 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910970159 | PLUG | 1 | ||
| R910973909 | GUARD PLUG | 1 |
