Baugruppe

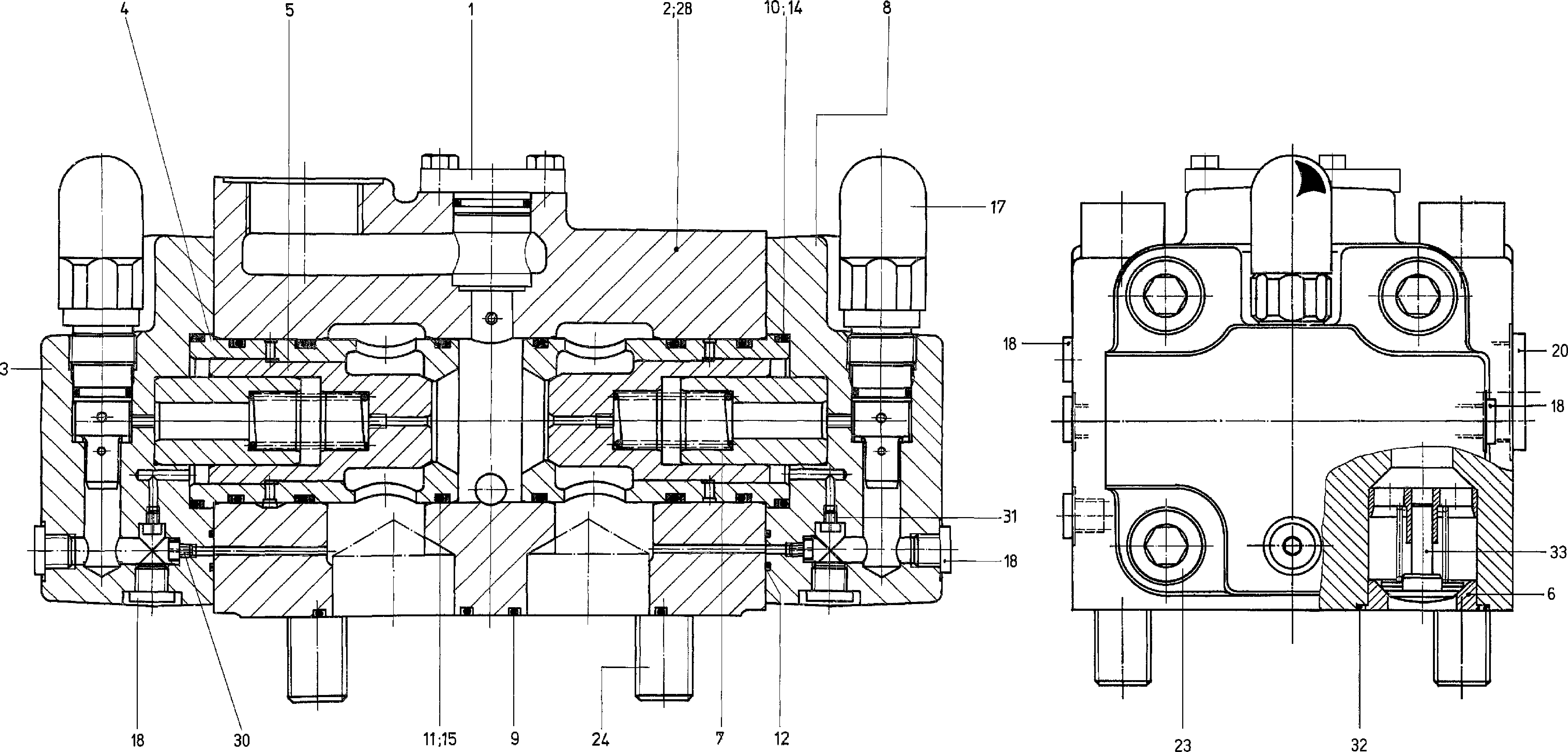

FLUSHING BLOCKR902448717
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910966821 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910964073 | VALVE HOUSING | 1 | ||
| R910996862 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910733393 | VALVE INSERT | 2 | ||
| R910733407 | VALVE SPOOL | 2 | ||
| R910964075 | VALVE SEAT | 1 | ||
| R910051365 | COMPRESSION SPRING | 2 | ||
| R910996861 | COVER Stückliste der Baugruppe →L | 1 | ||
| R910102598 | O-RINGD | 2 | ||
| R910513709 | O-RINGD | 2 | ||
| R910523267 | O-RINGD | 6 | ||
| R910102067 | O-RINGD | 2 | ||
| R910650927 | BACKUP RINGD | 2 | ||
| R910650935 | BACKUP RINGD | 8 | ||
| R900438939 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 2 | ||
| R909151979 | SCREW PLUGD | 12 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R910120782 | SOCKET HEAD CAP SCREW | 8 | ||
| R910121045 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R910116084 | NOZZLE | 2 | ||
| R910100595 | NOZZLE | 2 | ||
| R910534528 | O-RING | 1 | ||
| R910990093 | VALVE INSERT | 1 |
