Baugruppe

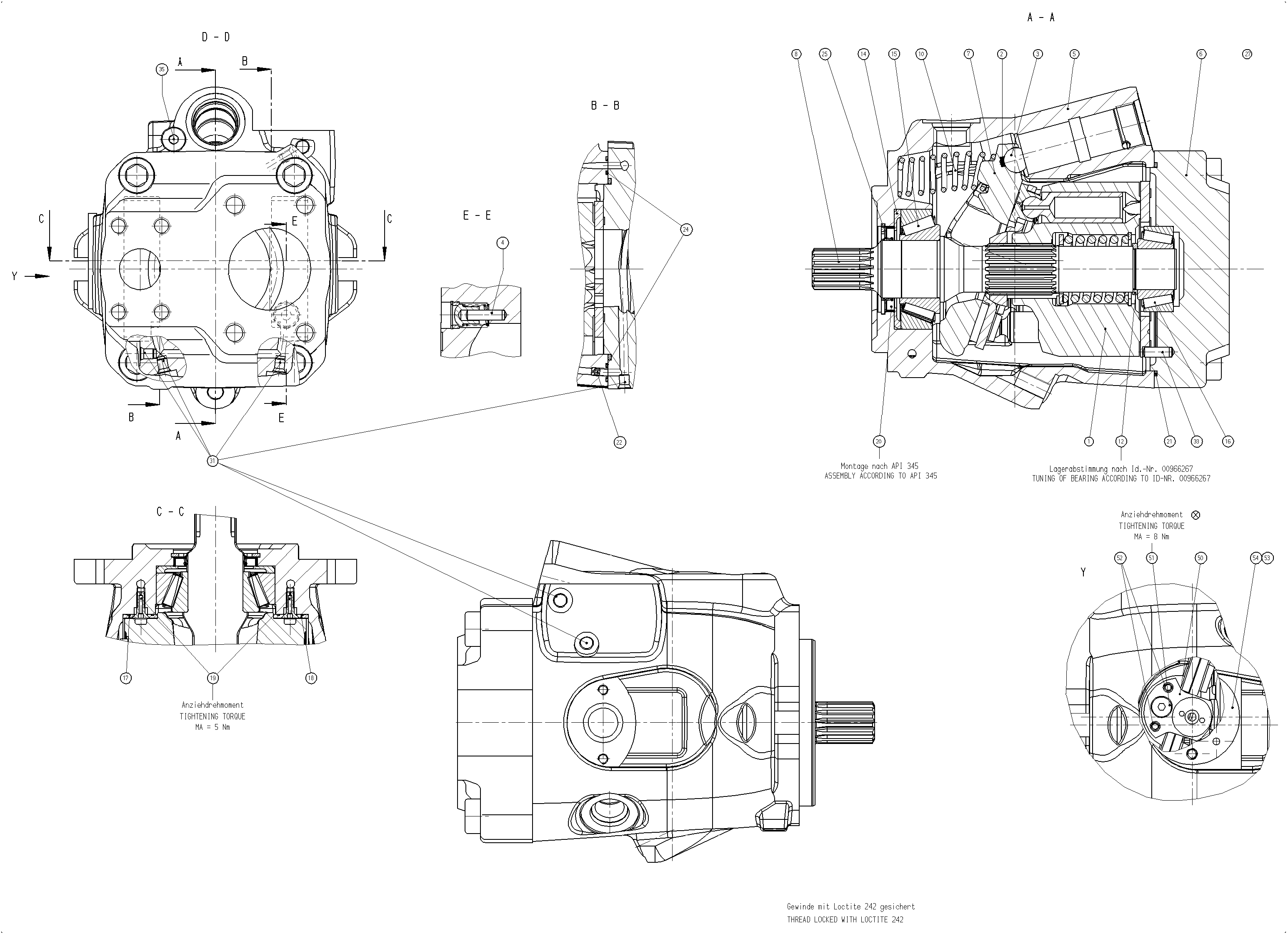

BASE UNITR902449301
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902435774 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902473753 | COMPRESSION SPRING | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902521024 | PUMP HOUSING | 1 | ||
| R910975517 | CONNECTION PLATE | 1 | ||
| R902425299 | SWASH PLATE | 1 | ||
| R902417398 | DRIVE SHAFT | 1 | ||
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910987963 | STOP RING | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R902445112 | BEARING SHELL | 2 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| R910100889 | SETSCREWD | 1 | ||
| R910942133 | R-RINGD | 2 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910514195 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R909156649 | SCREW PLUG | 1 | ||
| 39 | R910640182 | O-RING | 1 | |
| R902418548 | SPACER RING | 1 | ||
| R910756598 | O-RING | 1 | ||
| 55 | R910109177 | SOCKET HEAD CAP SCREW | 4 |
