Baugruppe

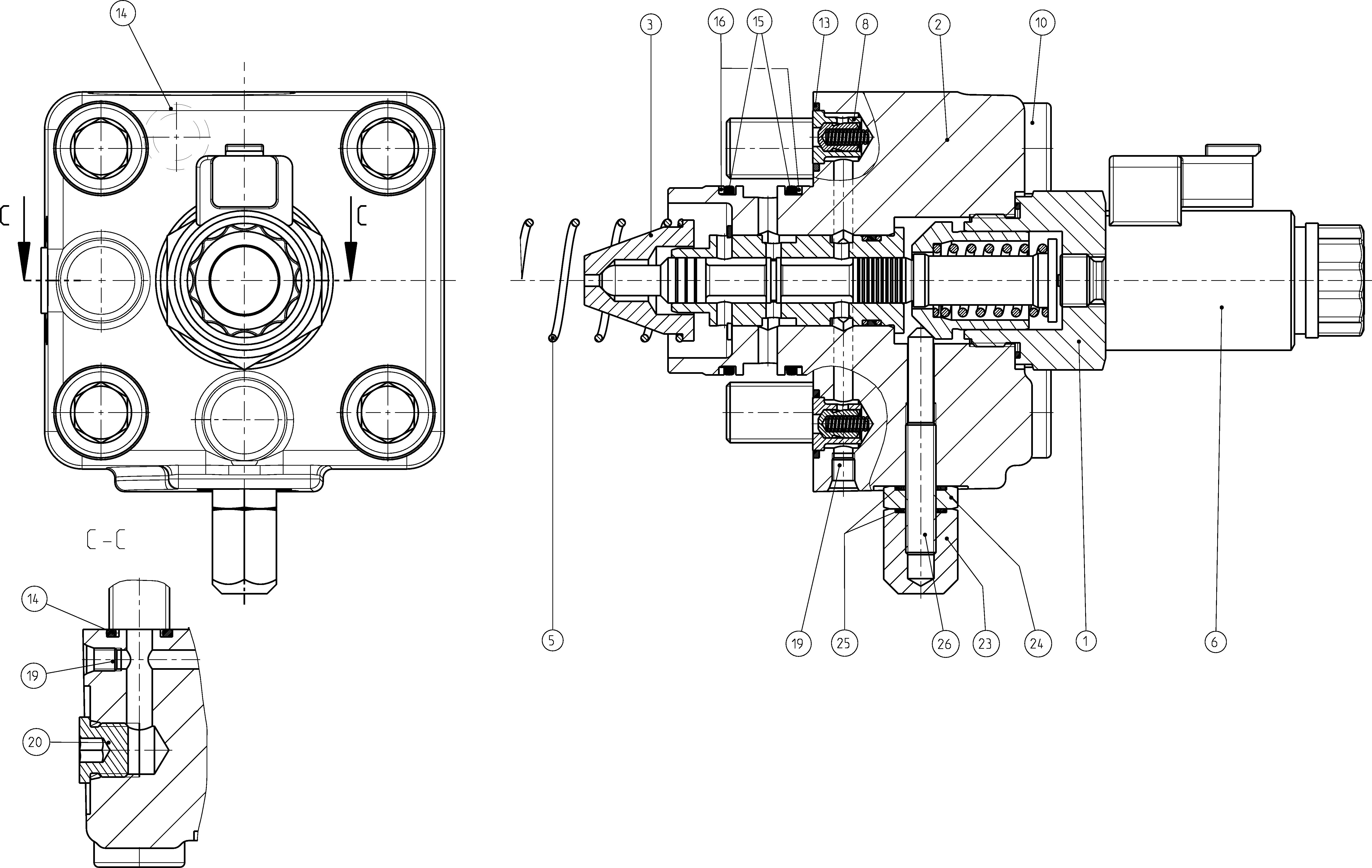

CONTROL PARTR902451280
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902557115 | VALVE INSERT | 1 | ||
| R902464975 | CONTROL HOUSING | 1 | ||
| R902448721 | SPRING DISK | 1 | ||
| R902650939 | COMPRESSION SPRING | 1 | ||
| R902603454 | PROPORTIONAL SOLENOID | 1 | ||
| R910974659 | HY-CHECK VALVE | 2 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| R910976410 | O-RING | 2 | ||
| R910518336 | O-RING | 3 | ||
| R910929855 | O-RING | 2 | ||
| R910929791 | BACKUP RING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910913805 | CAP NUT | 1 | ||
| R910913806 | NUT | 1 | ||
| R910642827 | BONDED SEAL RING | 2 | ||
| R902450261 | SETSCREW | 1 |
