Baugruppe

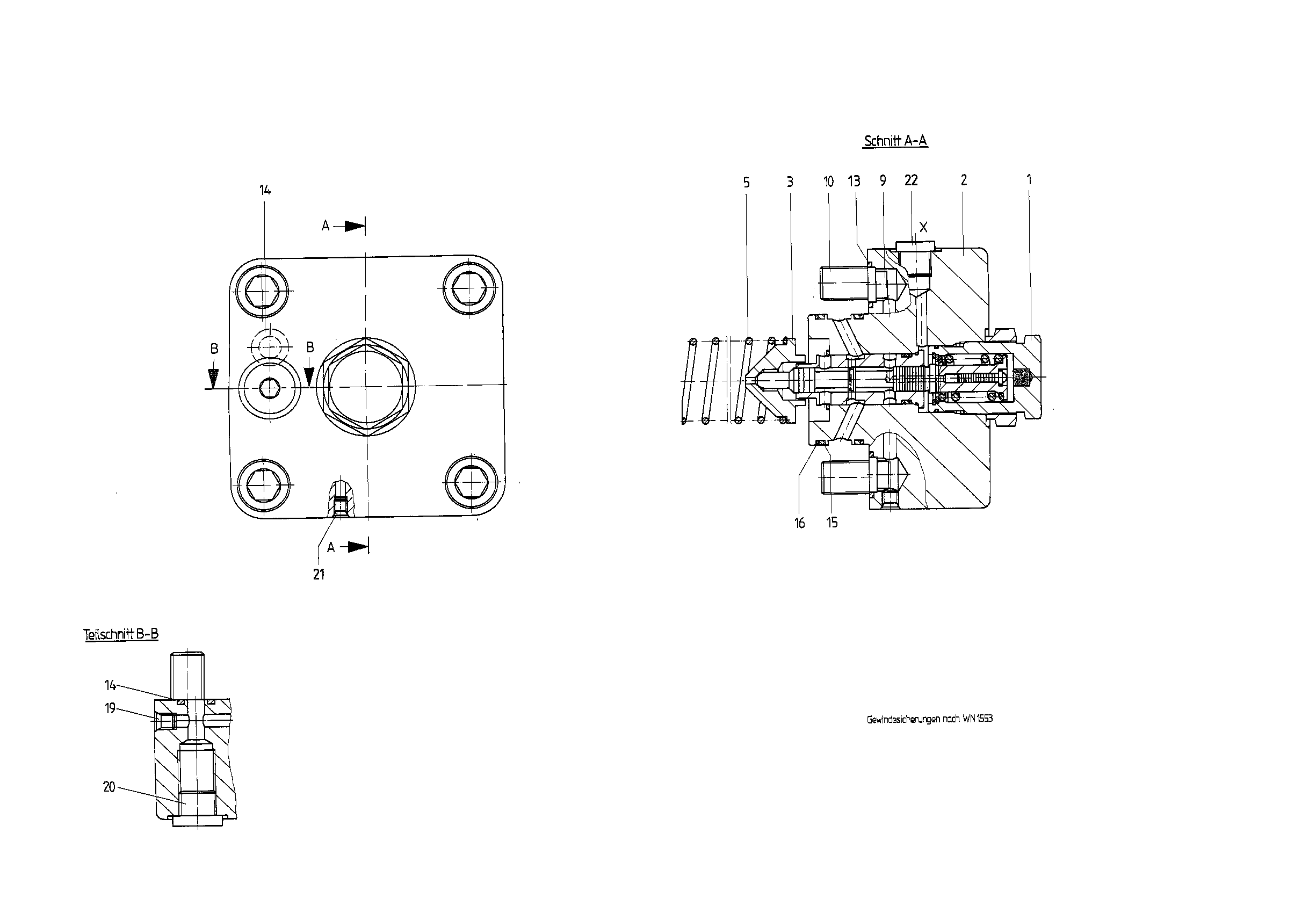

CONTROL PARTR902453194
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902559863 | VALVE INSERT | 1 | |
| 2 | R910931367 | CONTROL HOUSING | 1 | |
| 3 | R910930294 | SPRING DISK | 1 | |
| 5 | R910930286 | SPRING | 1 | |
| R902430576 | PLUG | 2 | ||
| 10 | R909153934 | SOCKET HEAD CAP SCREW | 4 | |
| 13 | R910515574 | O-RINGD | 2 | |
| 14 | R910518336 | O-RINGD | 4 | |
| 15 | R910930814 | O-RINGD | 2 | |
| R910927882 | BACKUP RINGD | 2 | ||
| 19 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 22 | R909153930 | SCREW PLUG | 1 |
