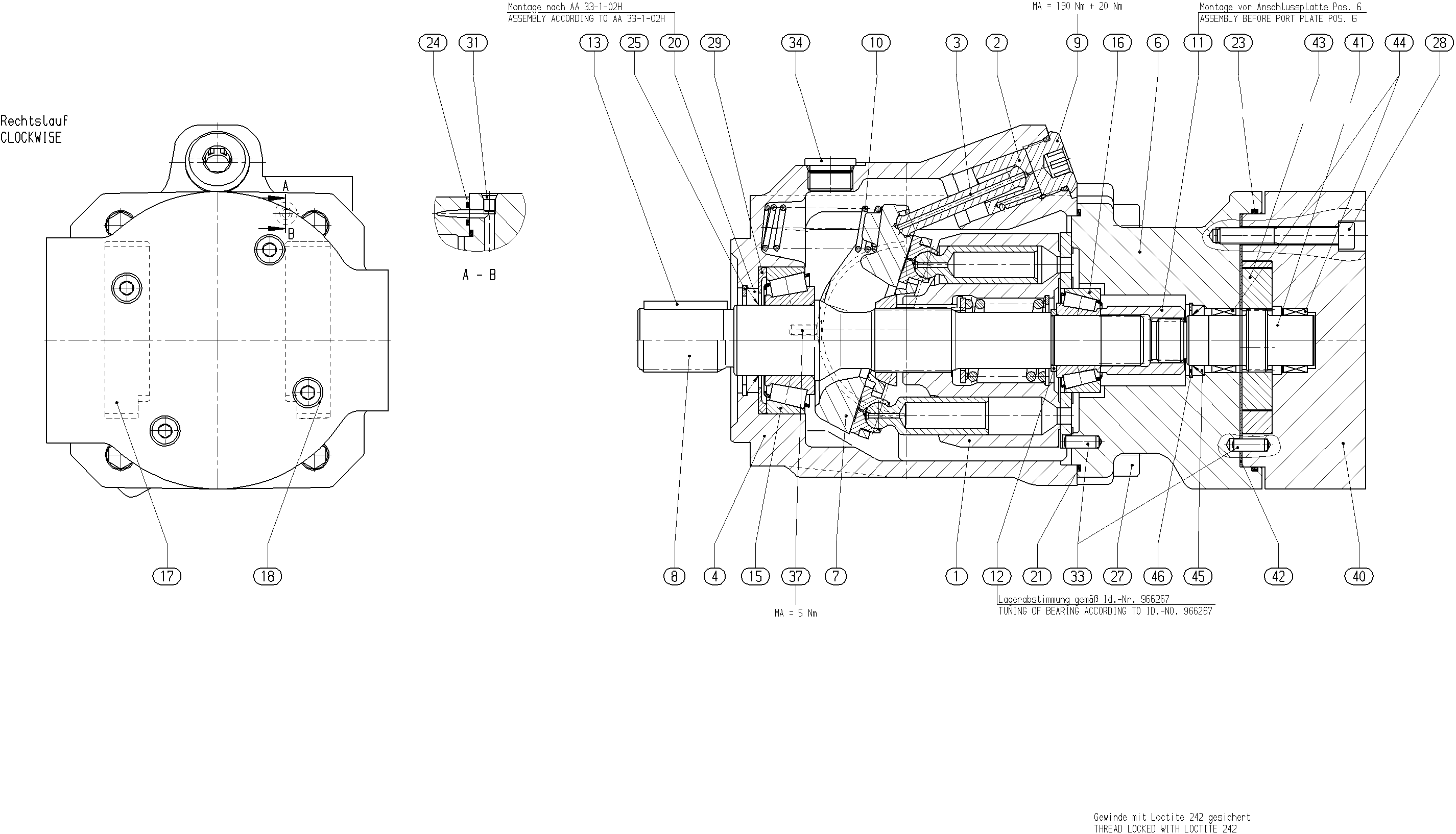

Baugruppe
BASE UNITR902454447
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902454130 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902419467 | PUMP HOUSING | 1 | ||
| R902454301 | CONNECTION PLATE | 1 | ||
| R902437115 | SWASH PLATE | 1 | ||
| R902413426 | DRIVE SHAFT | 1 | ||
| R902447574 | SCREW PLUG Stückliste der Baugruppe →L | 1 | ||
| R910973548 | COMPRESSION SPRING | 1 | ||
| R902454437 | SPLINED COUPLING | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R902413637 | BEARING SHELL | 1 | ||
| R902413636 | BEARING SHELL | 1 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R913050498 | O-RINGD | 1 | ||
| R909830536 | O-RING | 1 | ||
| R910942133 | R-RINGD | 1 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083047 | SOCKET HEAD CAP SCREW | 4 | ||
| R910989235 | STOP RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 3 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R902454302 | CONNECTION COVER | 1 | ||
| R902454416 | SHAFT | 1 | ||
| R902454409 | WEAR PLATE | 1 | ||
| R902454410 | WHEEL SET | 1 | ||
| R910989433 | NEEDLE BUSH | 2 | ||
| R910988019 | SHAFT SEALING RING | 1 | ||
| R902403815 | RETAINING RING | 1 |
