Baugruppe

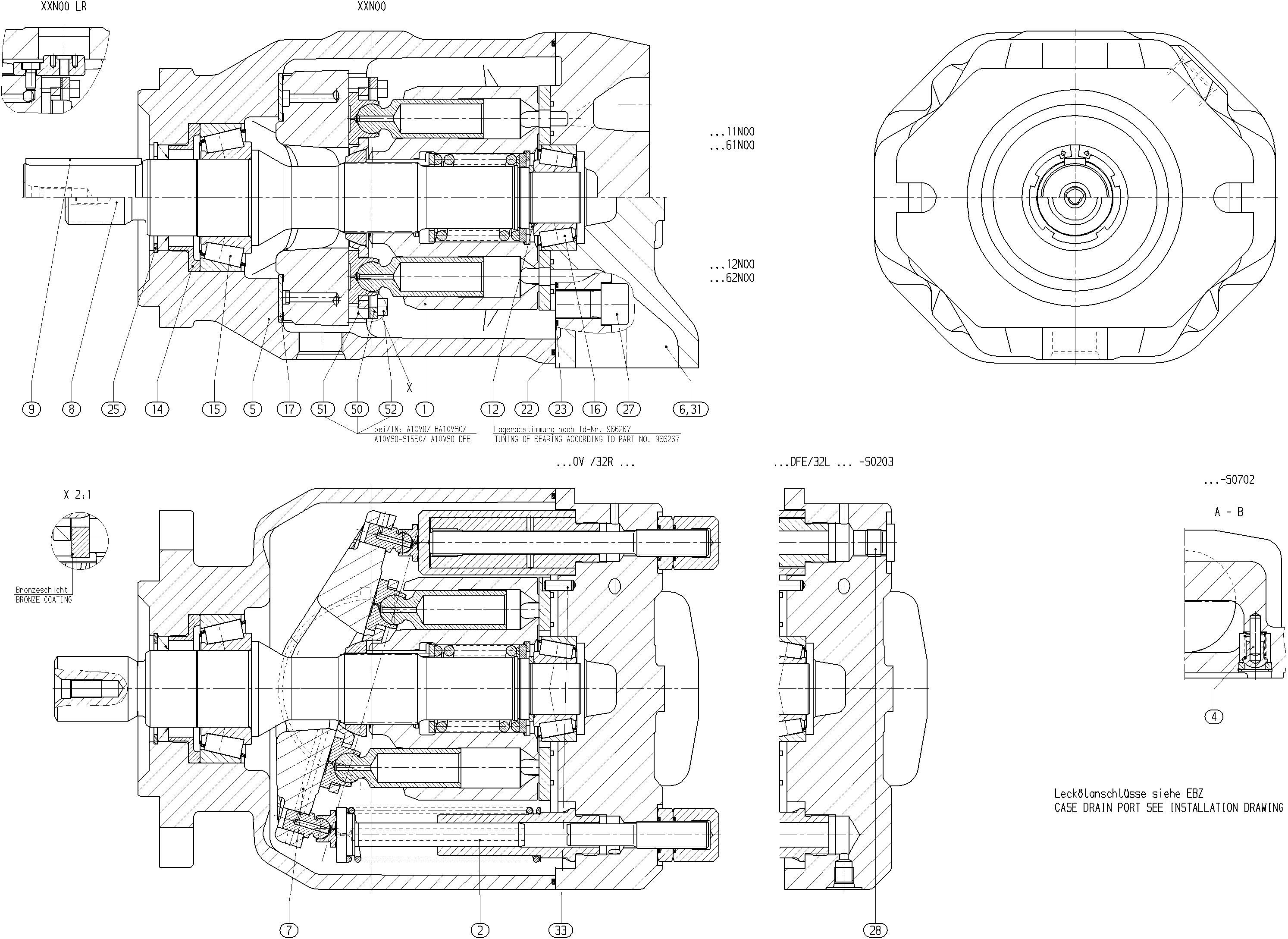

BASE UNITR902454956
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902466604 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910961984 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R910988365 | PUMP HOUSING | 1 | ||
| R902460137 | CONNECTION PLATE | 1 | ||
| R902459544 | SWASH PLATE | 1 | ||
| R902463833 | DRIVE SHAFT | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R910987869 | STOP RING | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| 20 | R909831179 | ROTARY SHAFT LIP SEALD | 1 | |
| R910912756 | O-RINGD | 1 | ||
| R913050578 | R-RINGD | 4 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156864 | SCREW PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902570108 | SEGMENT | 2 | ||
| R902432711 | SPACER SLEEVE | 4 | ||
| R902530616 | SOCKET HEAD CAP SCREW | 4 |
