Baugruppe

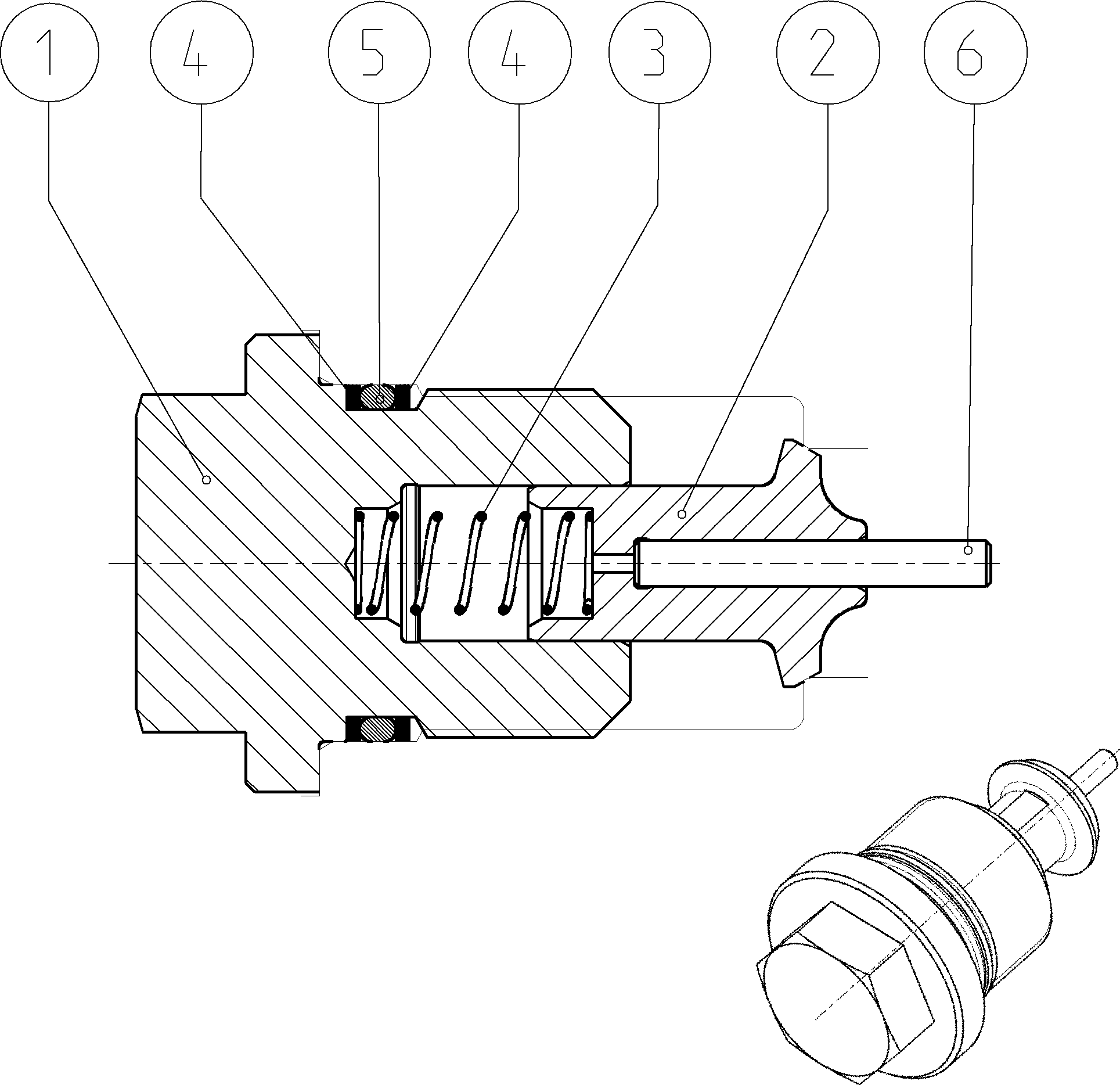

ANTI-CAVITATION CHECK VALVER902459834
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902439746 | SCREW PLUG | 1 | ||
| R902439747 | VALVE CONE | 1 | ||
| R902467186 | COMPRESSION SPRING | 1 | ||
| R902400971 | BACKUP RING | 2 | ||
| R910514519 | O-RING | 1 | ||
| R902439770 | DOWEL PIN | 1 |
Baugruppe
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902439746 | SCREW PLUG | 1 | ||
| R902439747 | VALVE CONE | 1 | ||
| R902467186 | COMPRESSION SPRING | 1 | ||
| R902400971 | BACKUP RING | 2 | ||
| R910514519 | O-RING | 1 | ||
| R902439770 | DOWEL PIN | 1 |
