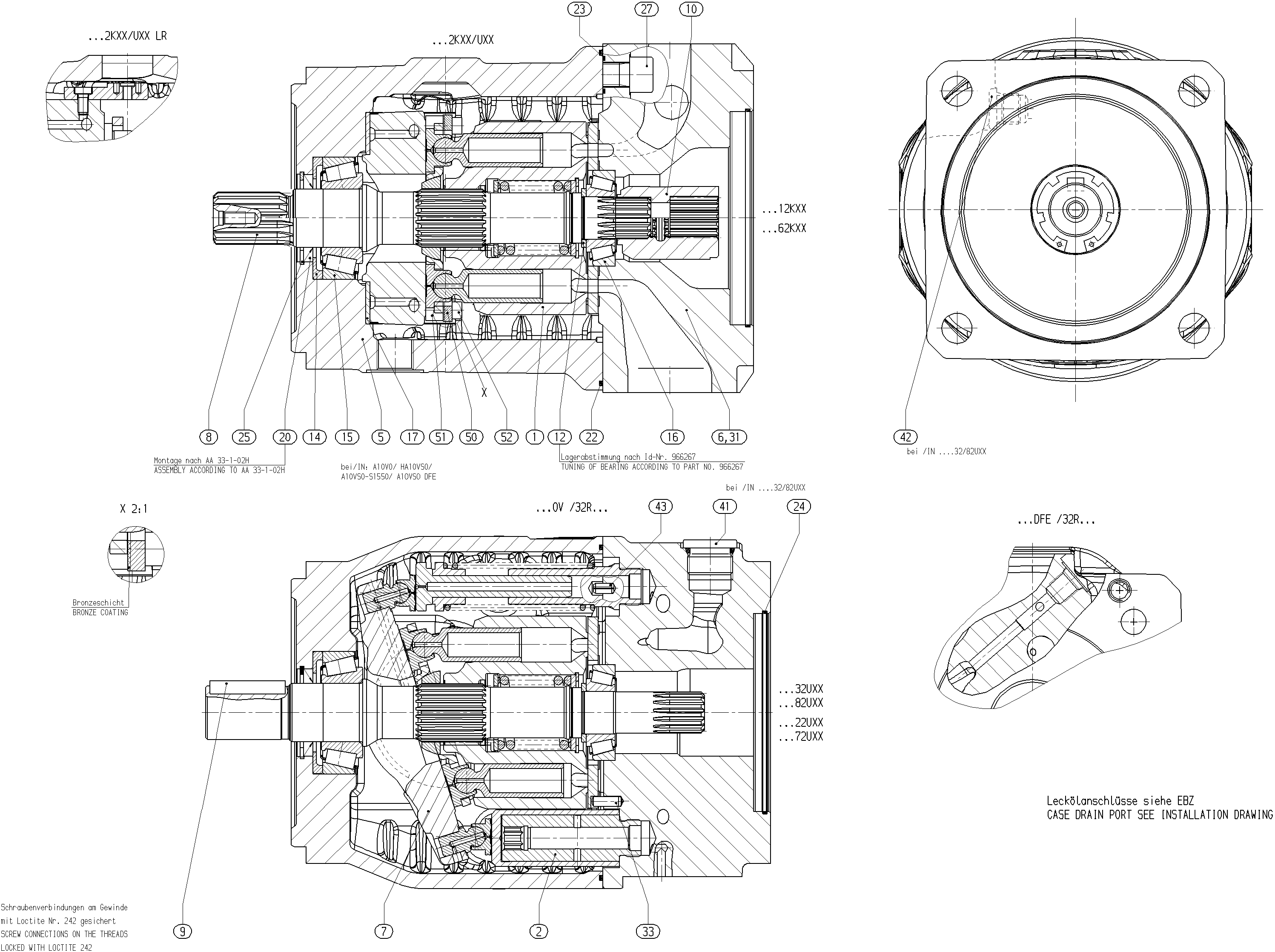

Baugruppe
BASE UNITR902461465
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902454147 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910935916 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902433606 | PUMP HOUSING | 1 | ||
| R902557418 | CONNECTION PLATE | 1 | ||
| R902460803 | SWASH PLATE | 1 | ||
| R902455658 | DRIVE SHAFT | 1 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910987843 | STOP RING | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R910764728 | O-RINGD | 1 | ||
| R913052117 | R-RINGD | 4 | ||
| R909156462 | O-RINGD | 1 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902601712 | SCREW PLUG | 2 | ||
| R902601709 | SCREW PLUG | 1 | ||
| R900002645 | SLOTTED SPRING PIN | 1 | ||
| R902570107 | SEGMENT | 2 | ||
| R902451537 | SPACER SLEEVE | 4 | ||
| R902530616 | SOCKET HEAD CAP SCREW | 4 |
