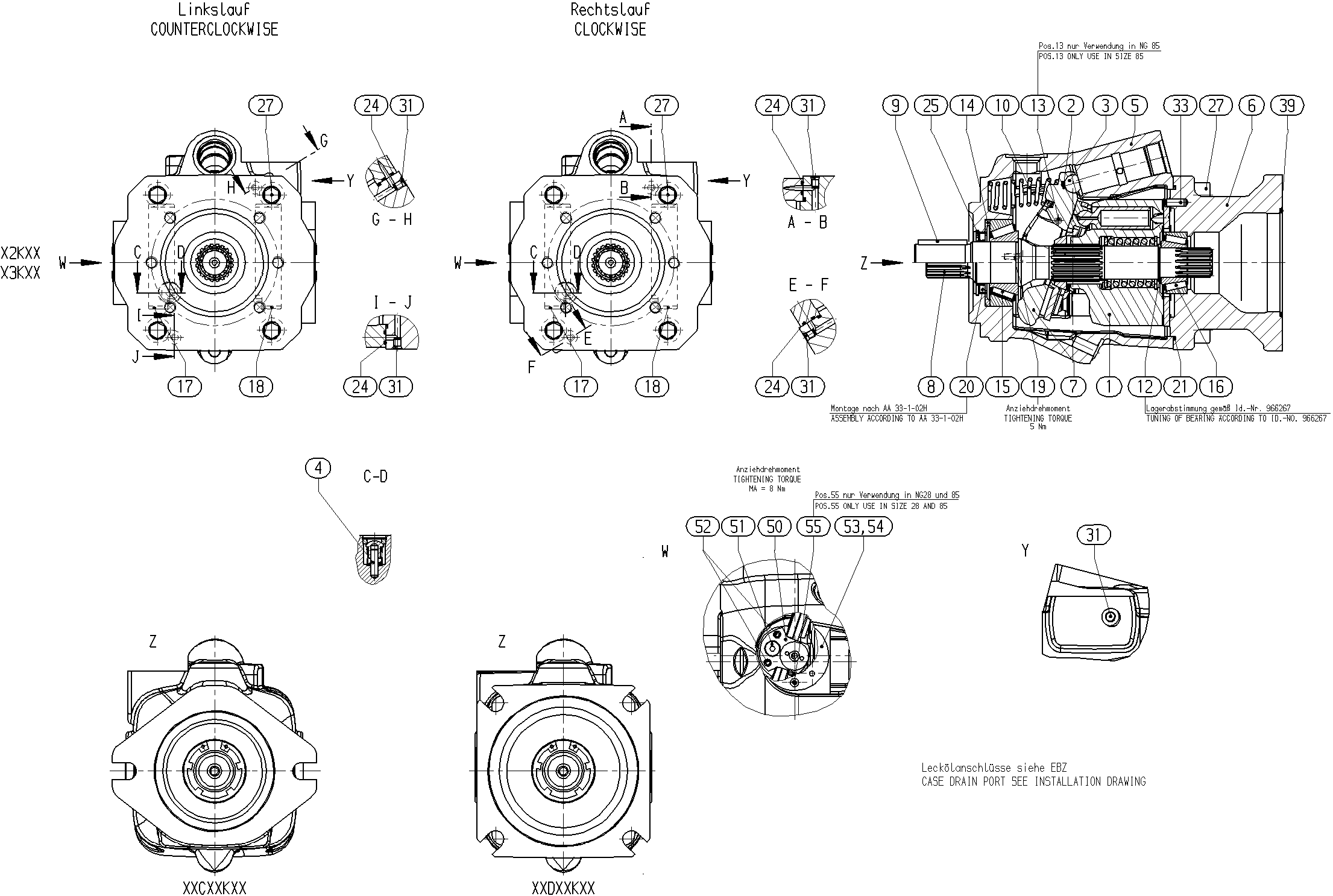

Baugruppe
BASE UNITR902462312
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902439596 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902473753 | COMPRESSION SPRING | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902405844 | CHECK VALVE | 1 | ||
| R902462300 | PUMP HOUSING | 1 | ||
| R902462306 | CONNECTION PLATE | 1 | ||
| R902462685 | SWASH PLATE | 1 | ||
| R902417369 | DRIVE SHAFT | 1 | ||
| R902418549 | COMPRESSION SPRING | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910987890 | STOP RING | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902416852 | BEARING SHELL | 2 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R910988019 | SHAFT SEALING RING | 1 | ||
| R902650851 | O-RING | 1 | ||
| R910942133 | R-RING | 2 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910640182 | O-RING | 1 | ||
| R902418546 | WASHER | 1 | ||
| 2910130191 | SOCKET HEAD CAP SCREW | 1 | ||
| R910585351 | STRAIGHT PIN | 2 | ||
| R902418548 | SPACER RING | 1 | ||
| R910756598 | O-RING | 1 | ||
| R910109177 | SOCKET HEAD CAP SCREW | 4 |
