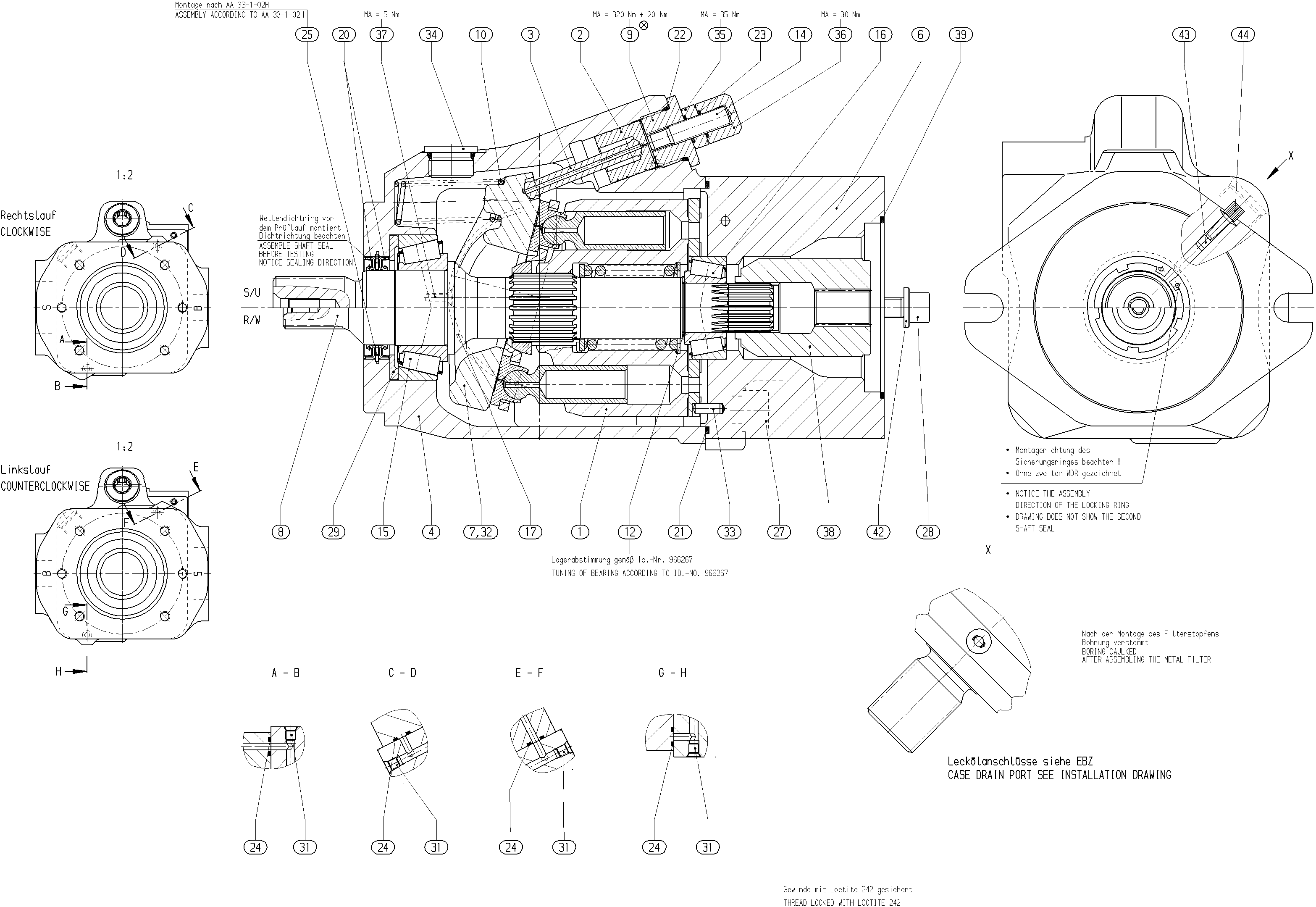

Baugruppe
BASE UNITR902462479
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902473198 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902417392 | ADJUSTING PISTON | 1 | ||
| R910989909 | PISTON ROD | 1 | ||
| R902462460 | PUMP HOUSING | 1 | ||
| R902412519 | CONNECTION PLATE | 1 | ||
| R902443503 | SWASH PLATE | 1 | ||
| R902462461 | DRIVE SHAFT | 1 | ||
| R902566187 | SCREW PLUG | 1 | ||
| R910573345 | COMPRESSION SPRING | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R902532356 | STOP SCREW | 1 | ||
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910990277 | BEARING SHELL | 2 | ||
| R910113174 | SHAFT SEALING RINGD | 2 | ||
| R913052062 | O-RINGD | 1 | ||
| R910973148 | O-RINGD | 1 | ||
| R910919314 | O-RING | 2 | ||
| R910942133 | R-RINGD | 2 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R902435278 | STOP RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910925530 | NOZZLE | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902426516 | SCREW PLUG | 1 | ||
| R910903390 | NUT | 1 | ||
| R910903349 | CAP NUT | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R902436101 | SPLINED COUPLING | 1 | ||
| R910640182 | O-RING | 1 | ||
| R910970159 | PLUG | 1 | ||
| R910973909 | GUARD PLUG | 1 |
