Baugruppe

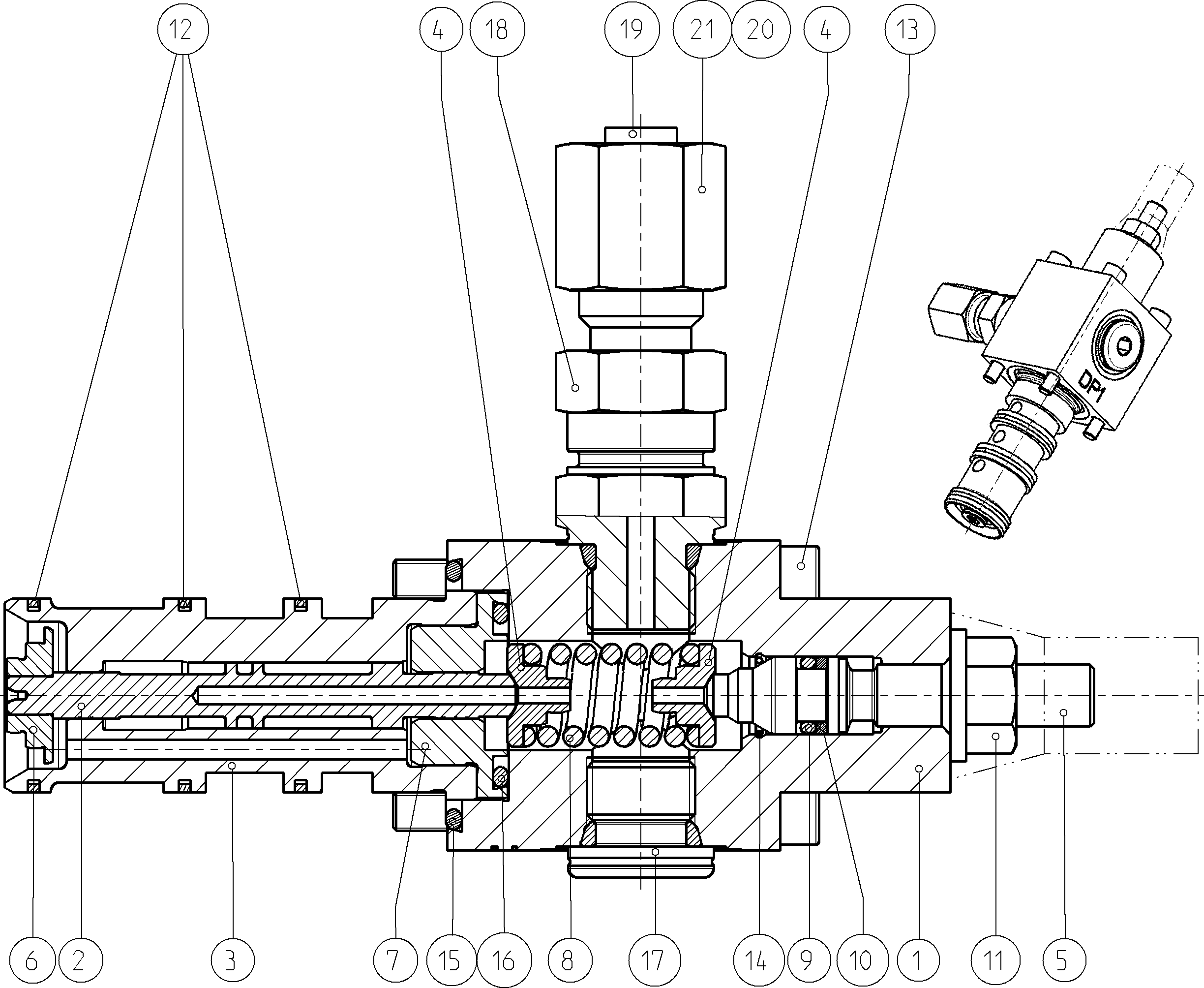

CONTROL ELEMENTR902472579
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902472581 | CONNECTING PIECE | 1 | ||
| R902538263 | VALVE SPOOL | 1 | ||
| R902472580 | CONTROL SLEEVE | 1 | ||
| R902465399 | SPRING DISK | 2 | ||
| R902548796 | STUD BOLT | 1 | ||
| R902475017 | SPRING DISK | 1 | ||
| R902472583 | BUSHING | 1 | ||
| R902565661 | COMPRESSION SPRING | 1 | ||
| R910080519 | O-RING | 1 | ||
| R910946269 | BACKUP RING | 1 | ||
| R910783307 | DUMMY | 1 | ||
| R902562584 | R-RING | 3 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154421 | SNAP RING | 1 | ||
| R910973148 | O-RING | 1 | ||
| R909154235 | O-RING | 1 | ||
| R909831482 | SCREW PLUG | 1 | ||
| R902483479 | CHECK VALVE | 1 | ||
| R910723126 | PLUG | 1 | ||
| R910947703 | SLEEVE | 1 | ||
| R910960554 | UNION NUT | 1 | ||
| 22 | R909154494 | SAFETY CAP | 1 |
