Baugruppe

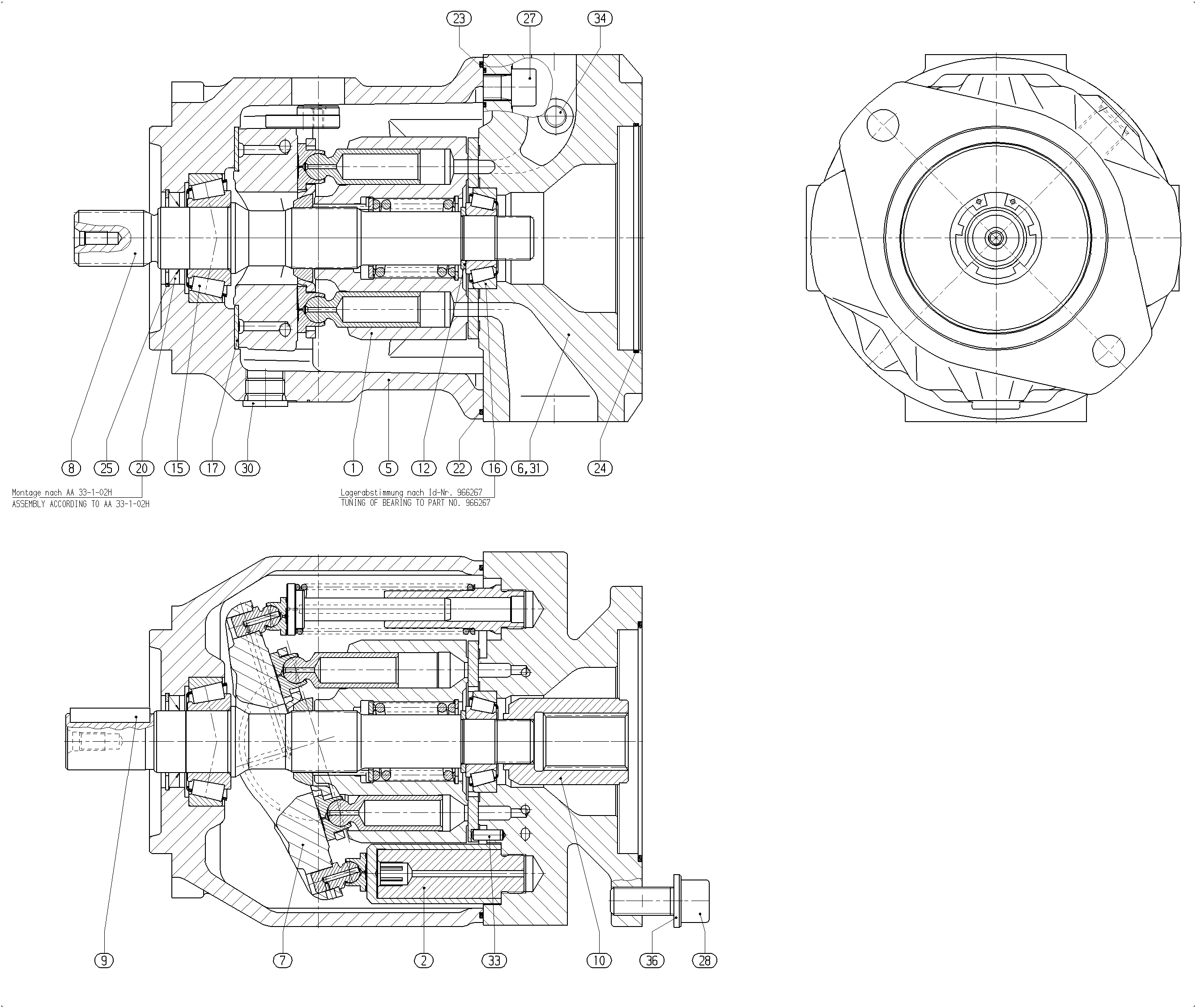

BASE UNITR902474472
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910956007 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910917199 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R910917320 | PUMP HOUSING | 1 | ||
| R902474304 | CONNECTION PLATE | 1 | ||
| R910961022 | SWASH PLATE | 1 | ||
| R902412024 | DRIVE SHAFT | 1 | ||
| R902436104 | SPLINED COUPLING | 1 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R910764701 | SHAFT SEALING RINGD | 1 | ||
| R910764728 | O-RINGD | 1 | ||
| R913052117 | R-RINGD | 4 | ||
| R910640182 | O-RINGD | 1 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R913011609 | SCREW PLUG | 1 |
