Baugruppe

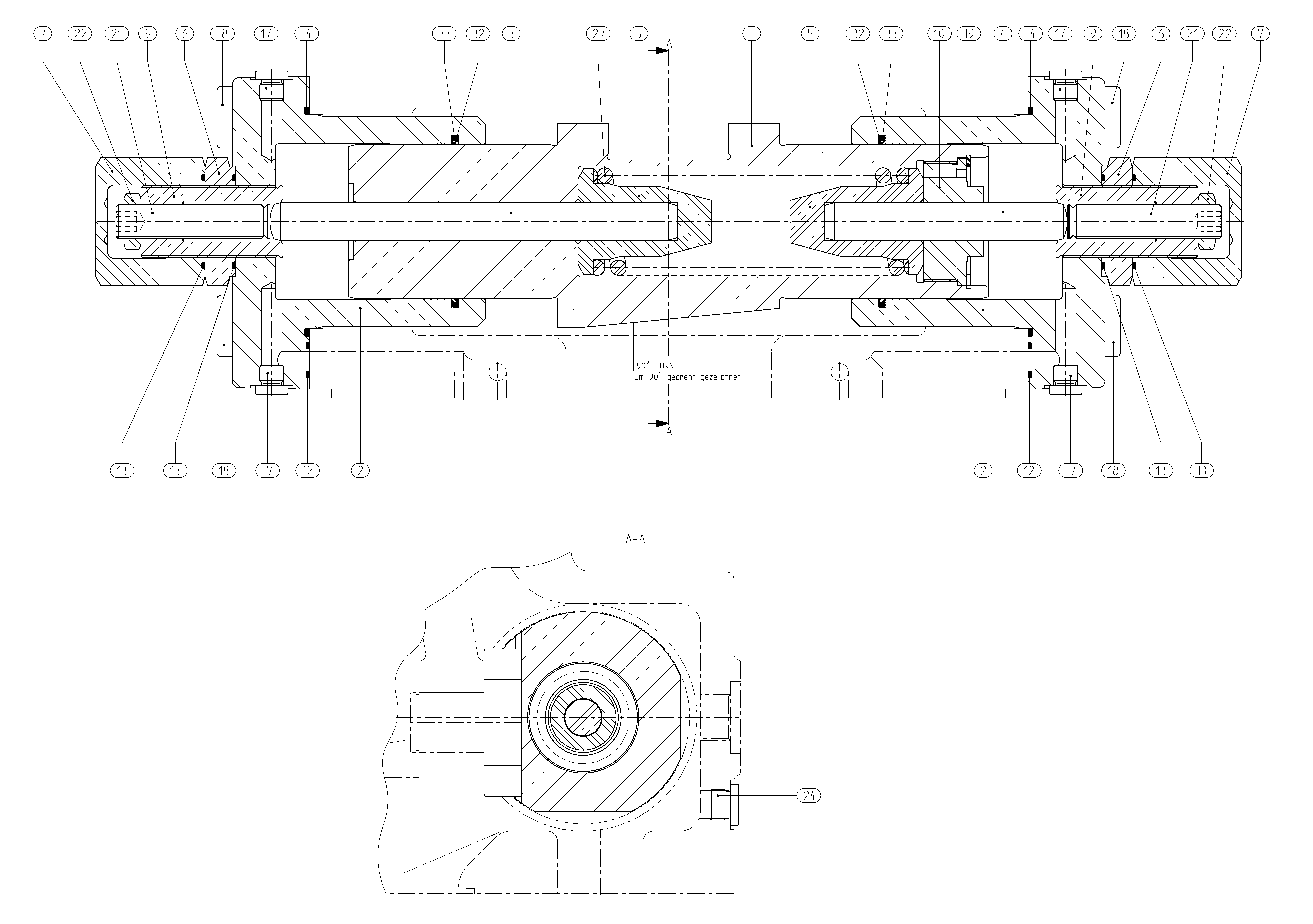

ADJUSTING PIECER902475371
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902530765 | ADJUSTING PISTON | 1 | ||
| R910962806 | PISTON HOUSING | 2 | ||
| R910962907 | BOLT | 1 | ||
| R910937891 | BOLT | 1 | ||
| R910962908 | SPRING DISK | 2 | ||
| R910937890 | NUT | 2 | ||
| R910937889 | CAP NUT | 2 | ||
| R902519617 | STOP SCREW | 2 | ||
| R902519848 | PISTON GUIDE | 1 | ||
| R910514985 | O-RING | 2 | ||
| R910534528 | O-RING | 4 | ||
| R910963152 | O-RING | 2 | ||
| R909151979 | SCREW PLUG | 8 | ||
| R910922408 | SOCKET HEAD CAP SCREW | 8 | ||
| R910150681 | RETAINING RING | 1 | ||
| R902519565 | STUD BOLT | 2 | ||
| R910105333 | HEXAGON NUT | 2 | ||
| R909153815 | SCREW PLUG | 2 | ||
| R910962977 | COMPRESSION SPRING | 1 | ||
| R910962999 | RING | 2 | ||
| R910963001 | O-RING | 2 |
