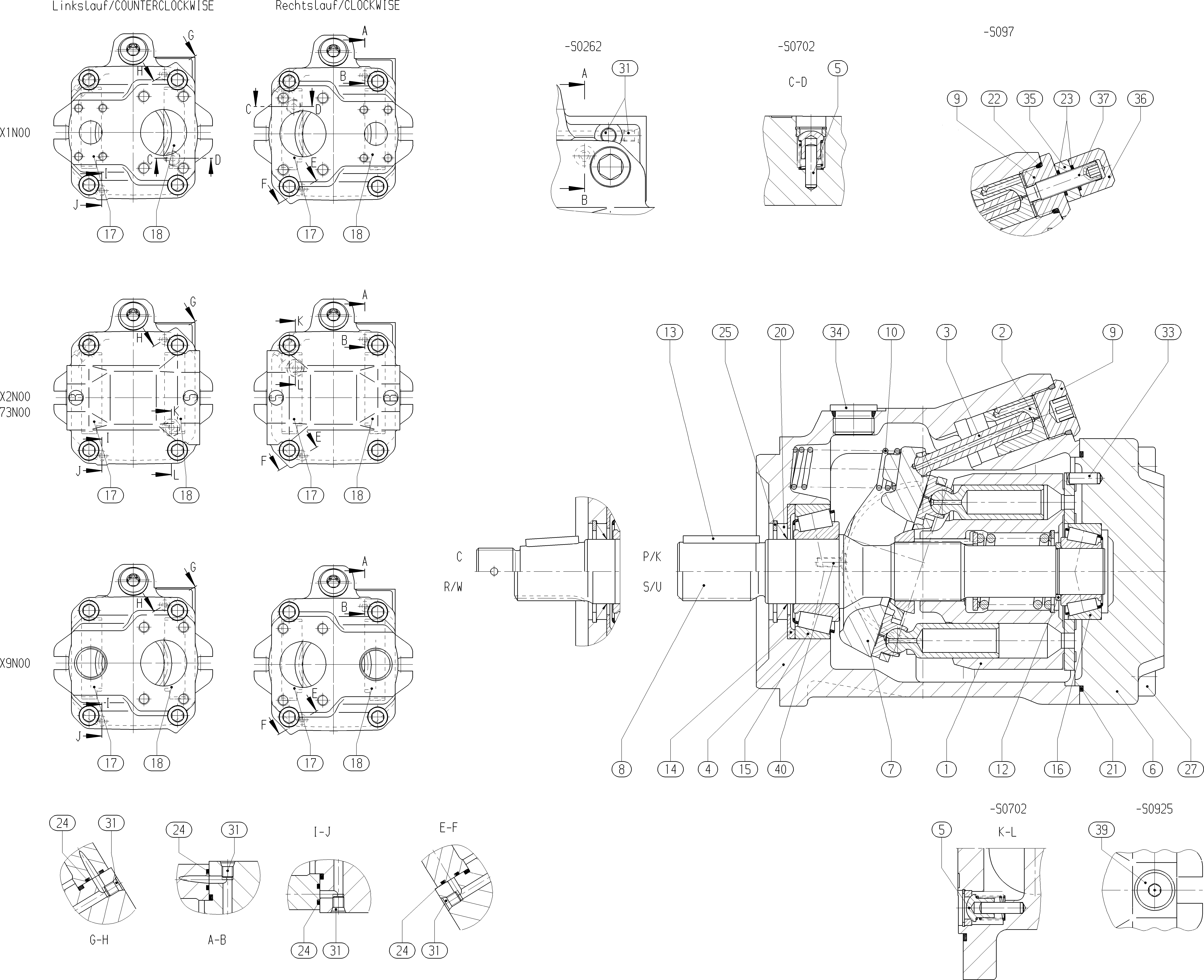

Baugruppe
BASE UNITR902480719
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902454130 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902419467 | PUMP HOUSING | 1 | ||
| R902405844 | NON-RETURN VALVE | 1 | ||
| R902411350 | CONNECTION PLATE | 1 | ||
| R902437115 | SWASH PLATE | 1 | ||
| R902413421 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG | 1 | ||
| R910973548 | COMPRESSION SPRING | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910989235 | STOP RING | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R902413637 | BEARING SHELL | 1 | ||
| R902413636 | BEARING SHELL | 1 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| — | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 2 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910604976 | SOCKET HEAD CAP SCREW | 4 | ||
| — | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 |
