Baugruppe

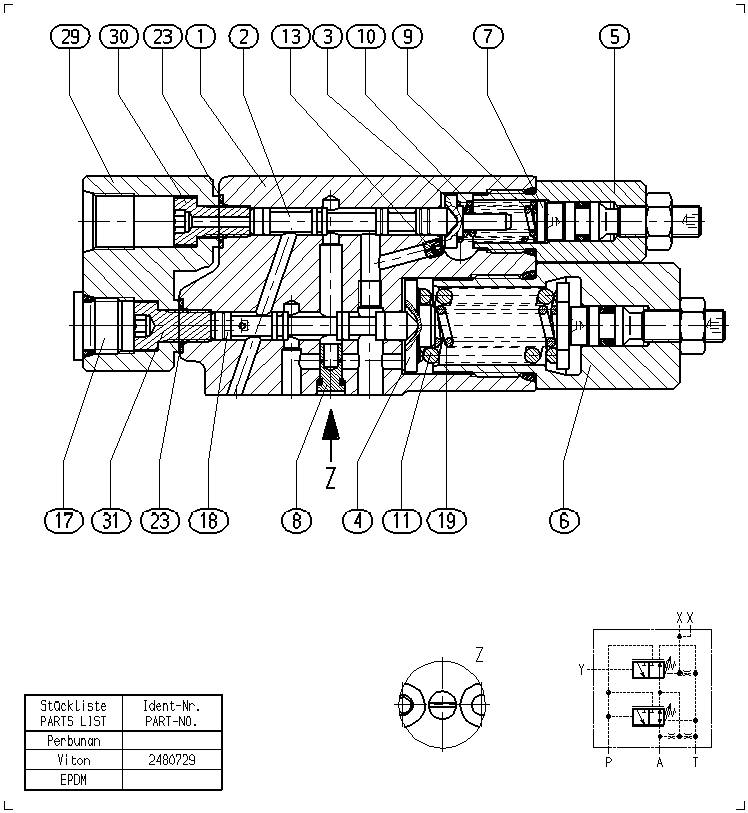

CONTROL VALVER902480729
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902453416 | VALVE HOUSING | 1 | ||
| R910900495 | VALVE SPOOL | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902449500 | SPRING DISK | 1 | ||
| R902451578 | SERVO UNIT Stückliste der Baugruppe →L | 1 | ||
| R902451580 | SERVO UNIT Stückliste der Baugruppe →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902451582 | ORIFICE Stückliste der Baugruppe →L | 1 | ||
| R910924695 | COMPRESSION SPRING | 1 | ||
| R910924709 | COMPRESSION SPRING | 1 | ||
| R910707031 | COMPRESSION SPRING | 1 | ||
| R910914740 | NOZZLE | 1 | ||
| R909157039 | SCREW PLUG | 1 | ||
| R910900311 | VALVE SPOOL | 1 | ||
| R910911509 | COMPRESSION SPRING | 1 | ||
| R910642827 | BONDED SEAL RING | 2 | ||
| R902408724 | DOUBLE ADAPTER | 1 | ||
| R910965426 | HOLLOW BOLT | 1 | ||
| R902423290 | SCREW | 1 |
