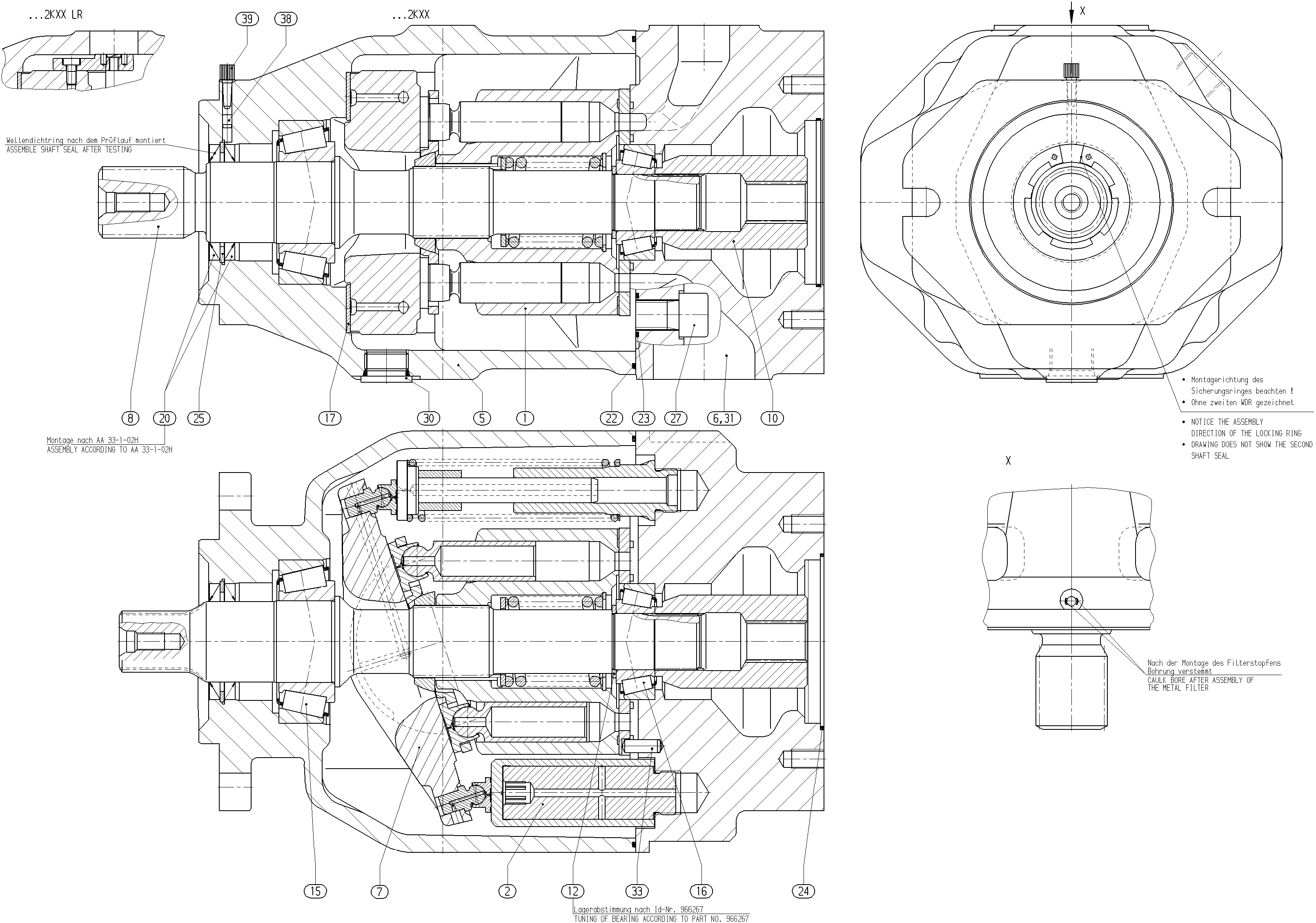

Baugruppe
BASE UNITR902484709
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910948999 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902484795 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902447522 | STOP SCREW | 1 | ||
| R902484219 | PUMP HOUSING | 1 | ||
| R902484230 | CONNECTION PLATE | 1 | ||
| R910961083 | SWASH PLATE | 1 | ||
| R902484844 | DRIVE SHAFT | 1 | ||
| R902436204 | SPLINED COUPLING | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R910978001 | SHAFT SEALING RINGD | 2 | ||
| R910930461 | O-RINGD | 1 | ||
| R913053032 | R-RINGD | 4 | ||
| R910640182 | O-RINGD | 1 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967351 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910922017 | STRAIGHT PIN | 1 | ||
| R910970159 | PLUG | 1 | ||
| R910973909 | GUARD PLUG | 1 |
