Baugruppe

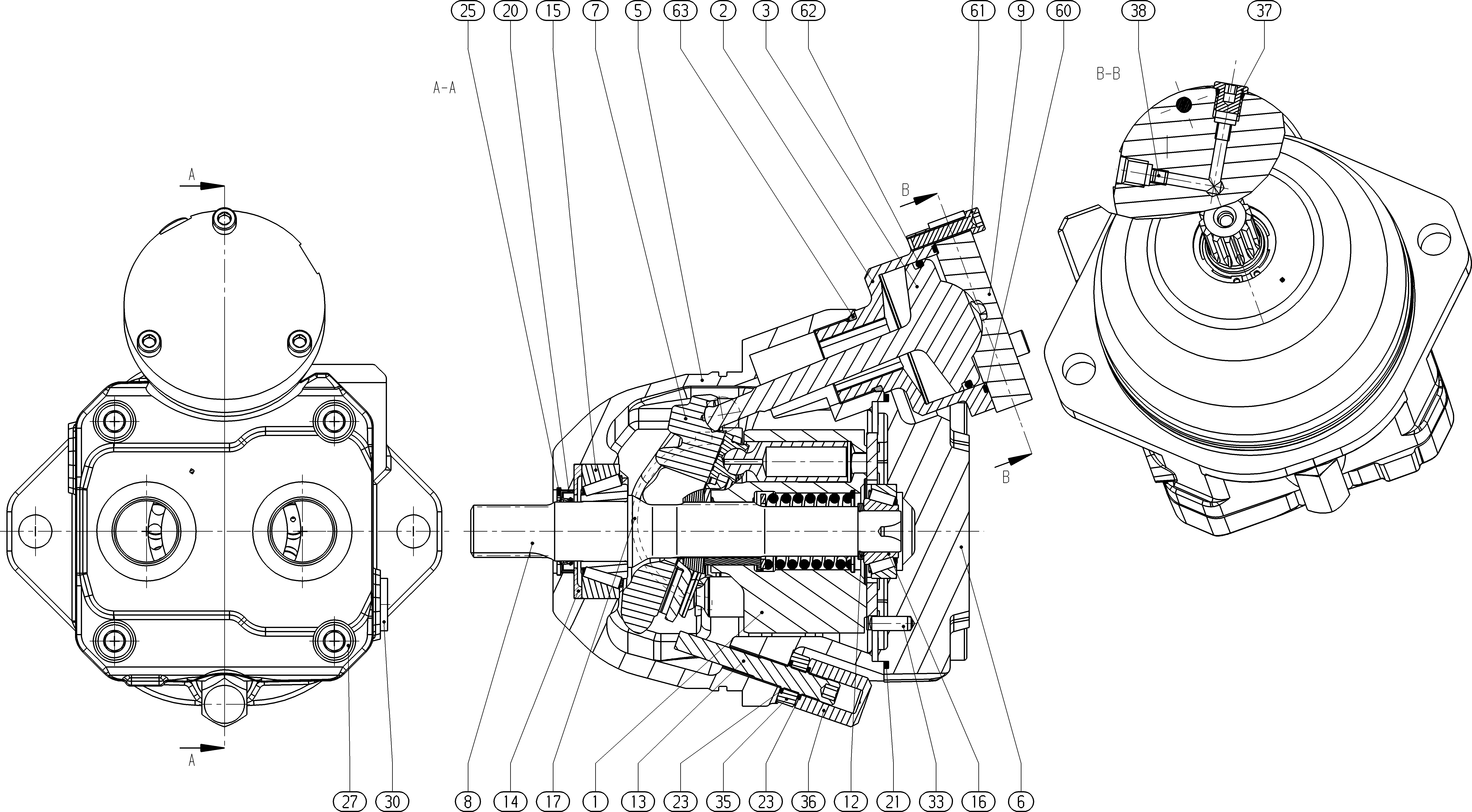

BASE UNITR902485742
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902459330 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902486951 | PISTON HOUSING | 1 | ||
| R902485739 | POSITIONING PISTON | 1 | ||
| R902485732 | MOTOR HOUSING | 1 | ||
| R902486912 | CONNECTION PLATE | 1 | ||
| R902486910 | SWASH PLATE | 1 | ||
| R902417183 | DRIVE SHAFT | 1 | ||
| R902485738 | COVER PLATE | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910933408 | STOP SCREW | 1 | ||
| R910987890 | STOP RING | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902410506 | BEARING SHELL | 2 | ||
| R910988019 | SHAFT SEALING RINGD | 1 | ||
| R902650851 | O-RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R902403815 | RETAINING RING | 1 | ||
| R909153089 | SOCKET HEAD CAP SCREW | 4 | ||
| R910901969 | SCREW PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R910322687 | O-RING | 1 | ||
| R909156524 | SOCKET HEAD CAP SCREW | 3 | ||
| R910973241 | O-RING | 1 | ||
| R909830870 | O-RING | 1 |
