Baugruppe

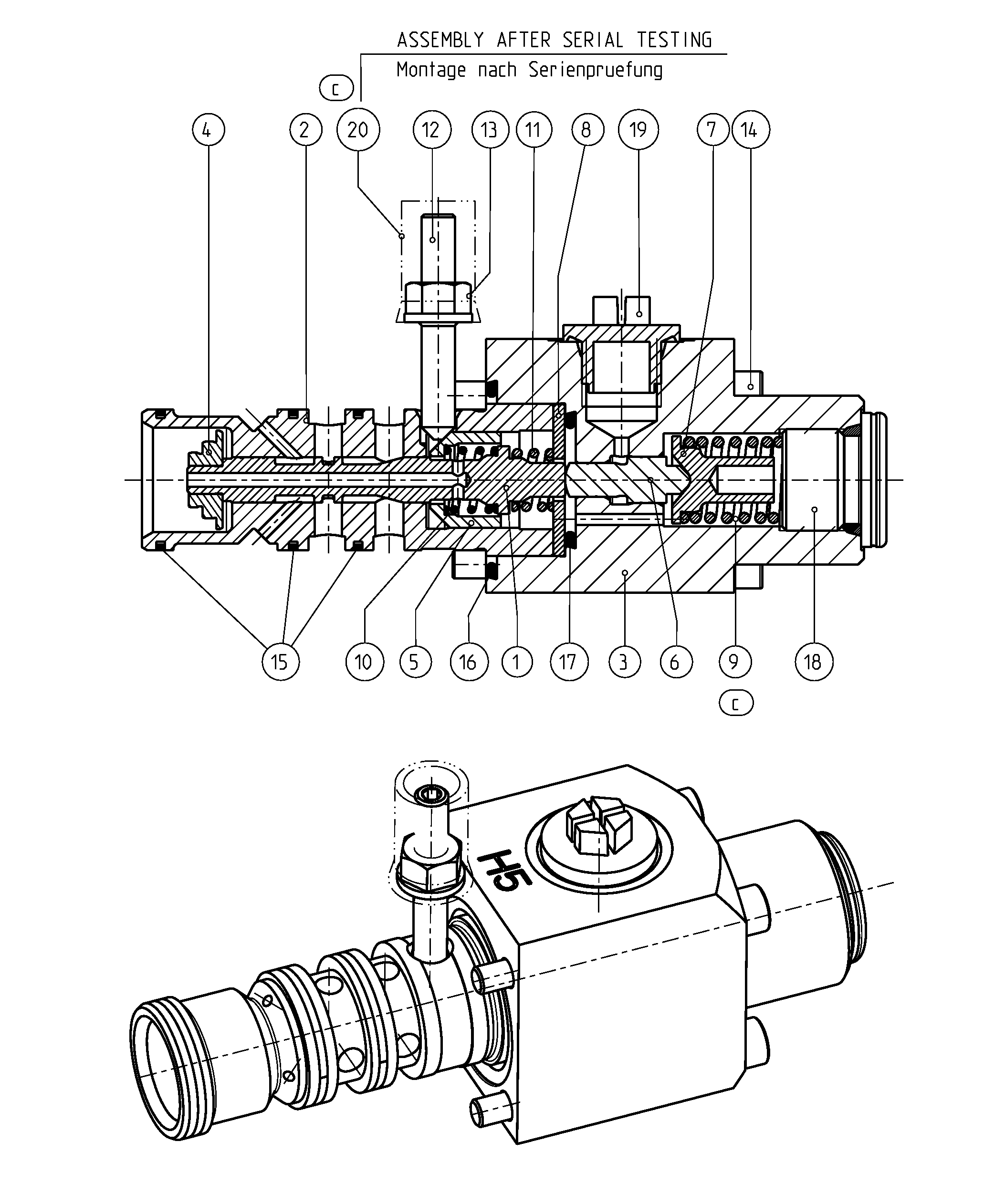

CONTROL ELEMENTR902488679
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902471910 | VALVE SPOOL | 1 | ||
| R902471909 | CONTROL SLEEVE | 1 | ||
| R902489115 | CONNECTING PIECE | 1 | ||
| R902475017 | SPRING DISK | 1 | ||
| R902471912 | ADJUSTING BUSHING | 1 | ||
| R902489114 | DIFFERENTIAL PISTON | 1 | ||
| R902475013 | SPRING DISK | 1 | ||
| R902475410 | WASHER | 1 | ||
| R902517905 | COMPRESSION SPRING | 1 | ||
| R902468677 | COMPRESSION SPRING | 1 | ||
| R902471927 | COMPRESSION SPRING | 1 | ||
| R909154865 | SETSCREW | 1 | ||
| R909152425 | SEALING NUT | 1 | ||
| R910120162 | SOCKET HEAD CAP SCREW | 4 | ||
| R902562584 | R-RING | 3 | ||
| R910973148 | O-RING | 1 | ||
| R910545155 | O-RING | 1 | ||
| R902601709 | SCREW PLUG | 1 | ||
| R902602008 | SEAL SCREW | 1 | ||
| R909831568 | SAFETY CAP | 1 |
