Baugruppe

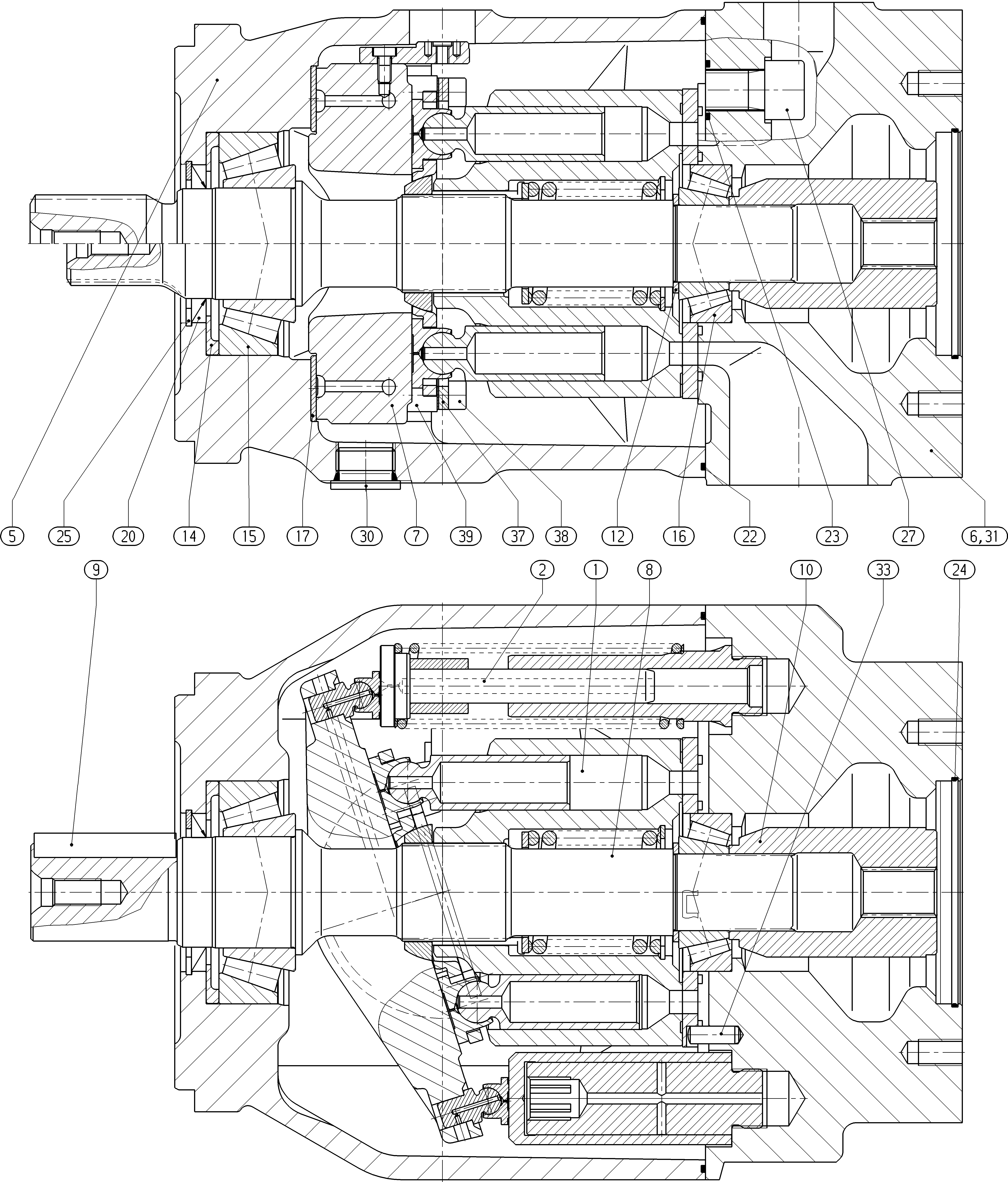

BASE UNITR902490357
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910948999 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910917597 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902450259 | PUMP HOUSING | 1 | ||
| R910961118 | CONNECTION PLATE | 1 | ||
| R902409622 | SWASH PLATE | 1 | ||
| R902410706 | DRIVE SHAFT | 1 | ||
| R902436102 | SPLINED COUPLING | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R910988055 | STOP RING | 1 | ||
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R910918201 | TAPERED-ROLLER BEARING | 1 | ||
| R910918174 | BEARING SHELL | 2 | ||
| R910978001 | SHAFT SEALING RINGD | 1 | ||
| R910930461 | O-RINGD | 1 | ||
| R913053032 | R-RINGD | 4 | ||
| R910640182 | O-RINGD | 1 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967351 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 | ||
| R902570109 | SEGMENT | 2 | ||
| R902530618 | SOCKET HEAD CAP SCREW | 4 | ||
| R902408275 | SPACER SLEEVE | 4 |
