Baugruppe

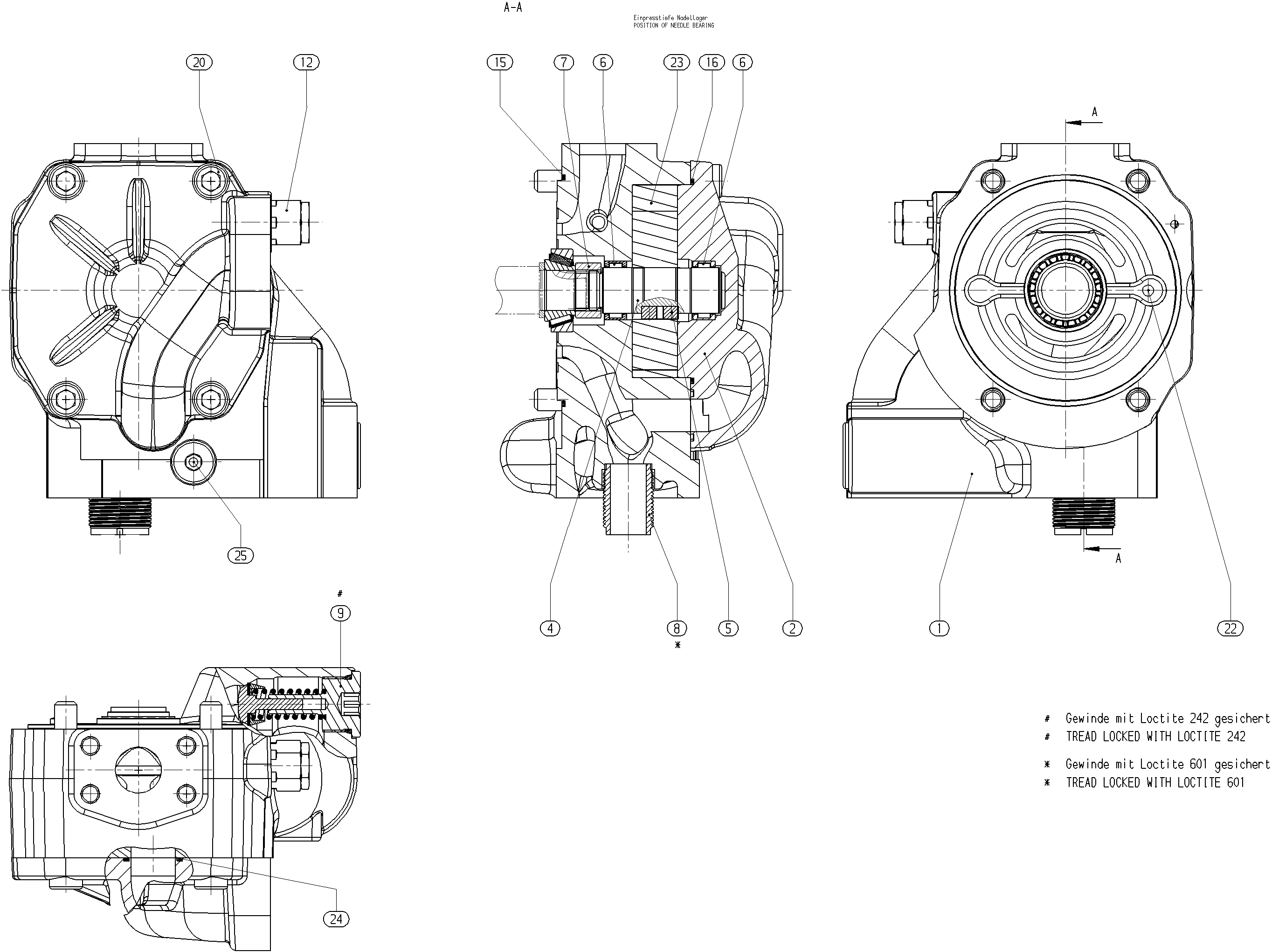

CONNECTION PLATER902494005
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902460615 | CONNECTION PLATE | 1 | ||
| R902471608 | COVER | 1 | ||
| R902494093 | GEROTOR SHAFT | 1 | ||
| R910103403 | PARALLEL KEY | 1 | ||
| R910989433 | NEEDLE BUSH | 2 | ||
| R902404689 | COUPLING HUB | 1 | ||
| R902412574 | NECK | 1 | ||
| R902454731 | NON-RETURN VALVE | 1 | ||
| R931002586 | SCREW-IN CARTRIDGE VALVE | 1 | ||
| — | O-RING | 1 | ||
| — | O-RING | 1 | ||
| R910989431 | SOCKET HEAD CAP SCREW | 4 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902650836 | WHEEL SET | 1 | ||
| R910470317 | O-RING | 1 | ||
| R902601709 | SCREW PLUG | 1 |
