Baugruppe

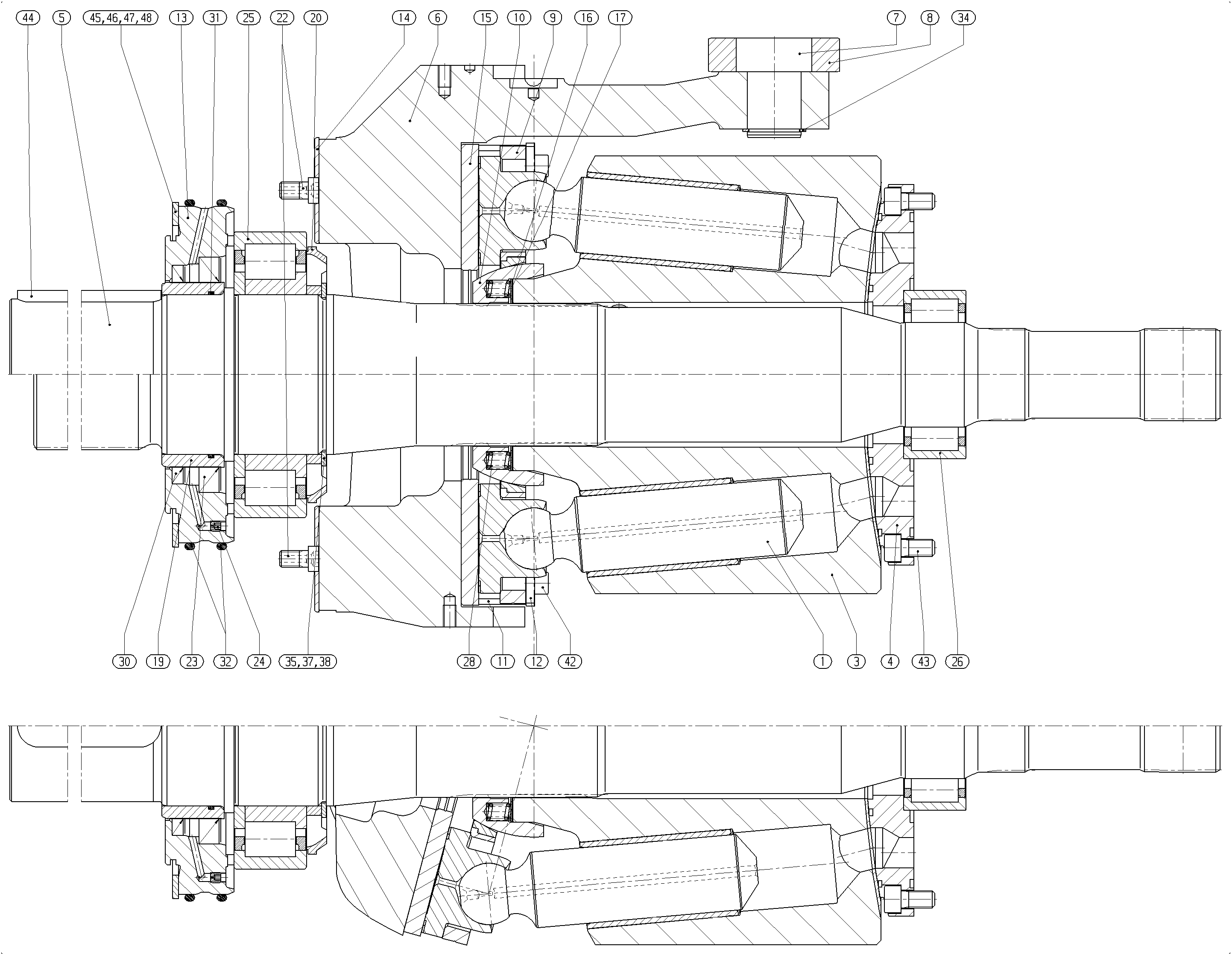

ROTARY GROUPR902494200
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902493173 | PISTON PAD | 9 | ||
| R902423078 | CYLINDER | 1 | ||
| R902472079 | DISTRIBUTOR PLATE | 1 | ||
| R902469946 | DRIVE SHAFT | 1 | ||
| R910967562 | SWASH PLATE | 1 | ||
| R910935543 | DRIVER PIVOT | 1 | ||
| R910935544 | SLIDER | 1 | ||
| R910967569 | RETAINING PLATE | 1 | ||
| R910983757 | RETAINING BALL | 1 | ||
| R910967566 | SPACER SEGMENT | 4 | ||
| R902570177 | SEGMENT | 4 | ||
| R902419378 | SEALING FLANGE | 1 | ||
| R910946533 | BEARING SHELL | 2 | ||
| R910983271 | SLIDING DISC | 1 | ||
| R910969282 | SHIM RING | 2 | ||
| R910960755 | SHIM RING | 2 | ||
| R902419357 | SEAL BUSHING | 1 | ||
| R910984822 | FEED WHEEL | 1 | ||
| R910969259 | SETTING SCREW | 2 | ||
| R902650458 | SHAFT SEALING RINGD | 1 | ||
| R910836796 | NOZZLE | 1 | ||
| R910966760 | CYL. ROLLER BEARING | 1 | ||
| R910978527 | CYL. ROLLER BEARING | 1 | ||
| R910965727 | COMPRESSION SPRING | 20 | ||
| R902400800 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910404209 | O-RINGD | 1 | ||
| R910967196 | O-RINGD | 2 | ||
| R910187976 | RETAINING RING | 1 | ||
| R910436674 | RETAINING RING | 1 | ||
| R910984818 | RETAINING RING | 1 | ||
| R910984817 | RETAINING RING | 1 | ||
| R902650871 | SOCKET HEAD CAP SCREW | 8 | ||
| R910109592 | SOCKET HEAD CAP SCREW | 6 | ||
| R910991999 | RETAINING RING | 1 | ||
| R910992000 | RETAINING RING | 1 | ||
| R910992001 | RETAINING RING | 1 | ||
| R910992002 | RETAINING RING | 1 |
