Baugruppe

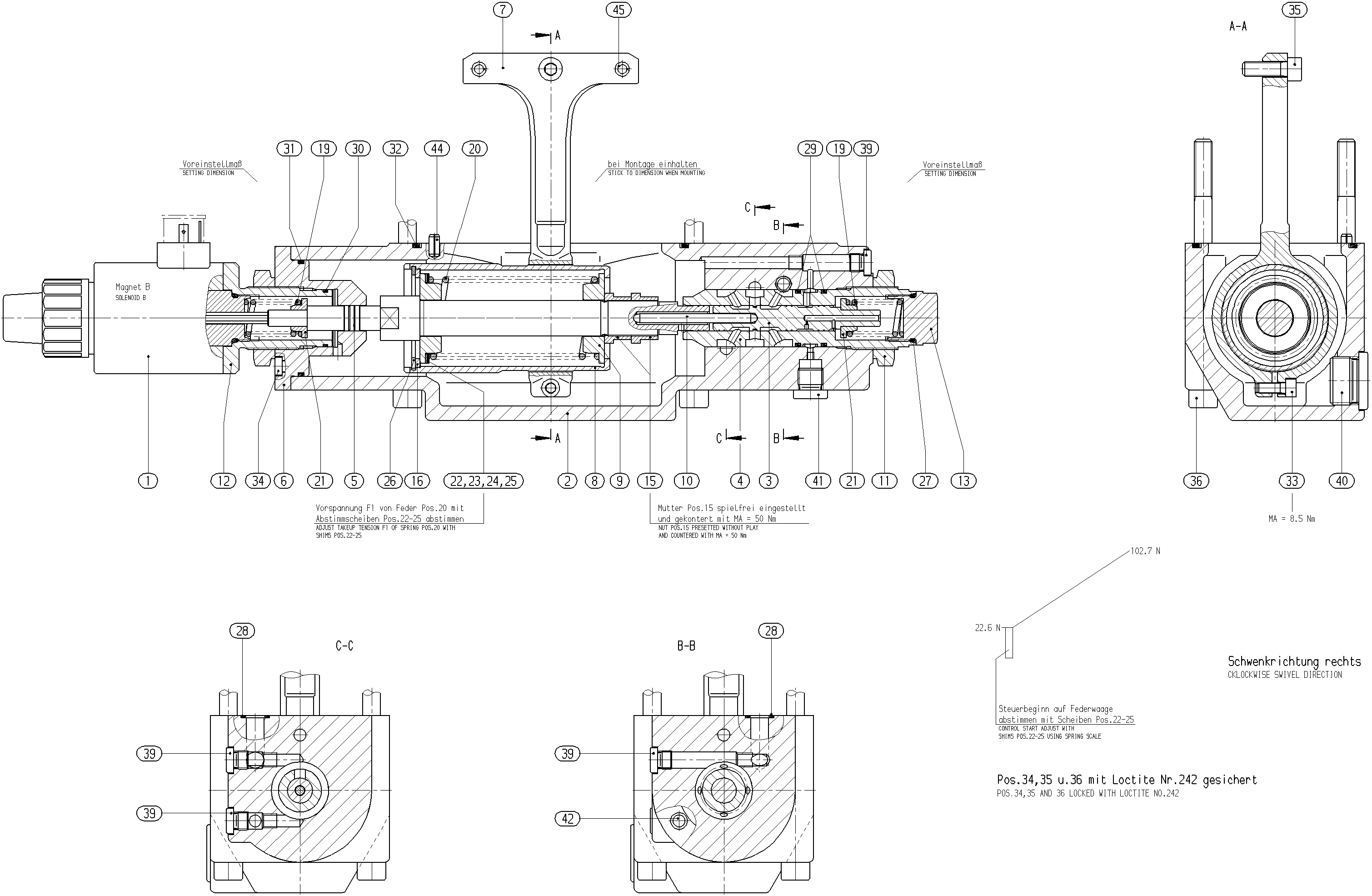

CONTROL MODULER902494341
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902434970 | PROPORTIONAL SOLENOID | 1 | ||
| R902403705 | CONTROL HOUSING | 1 | ||
| R902435675 | CONTROL PISTON | 1 | ||
| R902402777 | CONTROL SLEEVE | 1 | ||
| R902435676 | PRESSURE PISTON | 1 | ||
| R902402779 | CONTROL COVER | 1 | ||
| R910918275 | LEVER | 1 | ||
| R910916055 | SPRING SLEEV | 1 | ||
| R910916045 | SPRING DISK | 2 | ||
| R910917119 | STRAIGHT PIN | 1 | ||
| R910906125 | NUT | 2 | ||
| R902403317 | THREADED FASTENER | 1 | ||
| R902493760 | SCREW PLUG | 1 | ||
| R902403561 | NUT | 2 | ||
| R910916050 | SUPPORTING DISC | 1 | ||
| R902408595 | COMPRESSION SPRING | 2 | ||
| R902428205 | COMPRESSION SPRING | 1 | ||
| R902415603 | SPRING DISK | 2 | ||
| R910127671 | SHIM RING | 1 | ||
| R910127663 | SHIM RING | 1 | ||
| R910534838 | SHIM RING | 2 | ||
| R910514764 | SHIM RING | 2 | ||
| R910106003 | RETAINING RING | 1 | ||
| R910515256 | O-RING | 1 | ||
| R910080543 | O-RING | 2 | ||
| R910531243 | O-RING | 2 | ||
| R910916166 | O-RING | 1 | ||
| R910514411 | O-RING | 1 | ||
| R910919986 | O-RING | 1 | ||
| R910109282 | SOCKET HEAD CAP SCREW | 1 | ||
| R910126586 | SOCKET HEAD CAP SCREW | 4 | ||
| R910109479 | SOCKET HEAD CAP SCREW | 1 | ||
| R910399957 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUG | 4 | ||
| R909156984 | SCREW PLUG | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R900002645 | SLOTTED SPRING PIN | 2 | ||
| R910117676 | SLOTTED SPRING PIN | 2 |
