Baugruppe

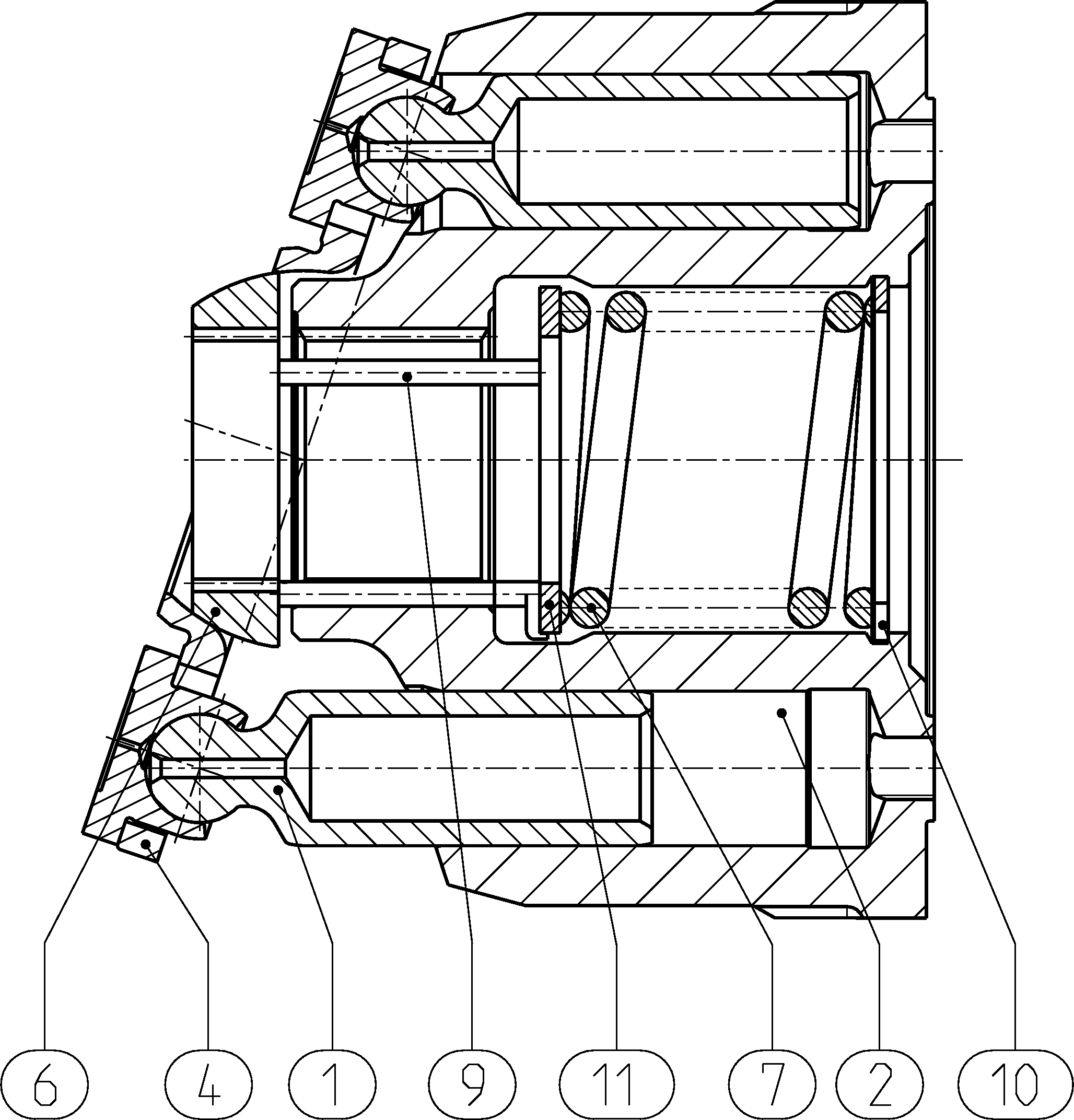

ROTARY GROUPR902505648
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902418043 | PISTON PAD | 9 | ||
| R902505637 | CYLINDER | 1 | ||
| R902503255 | RETAINING PLATE | 1 | ||
| R910979801 | RETAINING BALL | 1 | ||
| R902400732 | COMPRESSION SPRING | 1 | ||
| R902400741 | PRESSURE PIN | 3 | ||
| R909156218 | RETAINING RING | 1 | ||
| R902400742 | SUPPORTING DISC | 1 |
