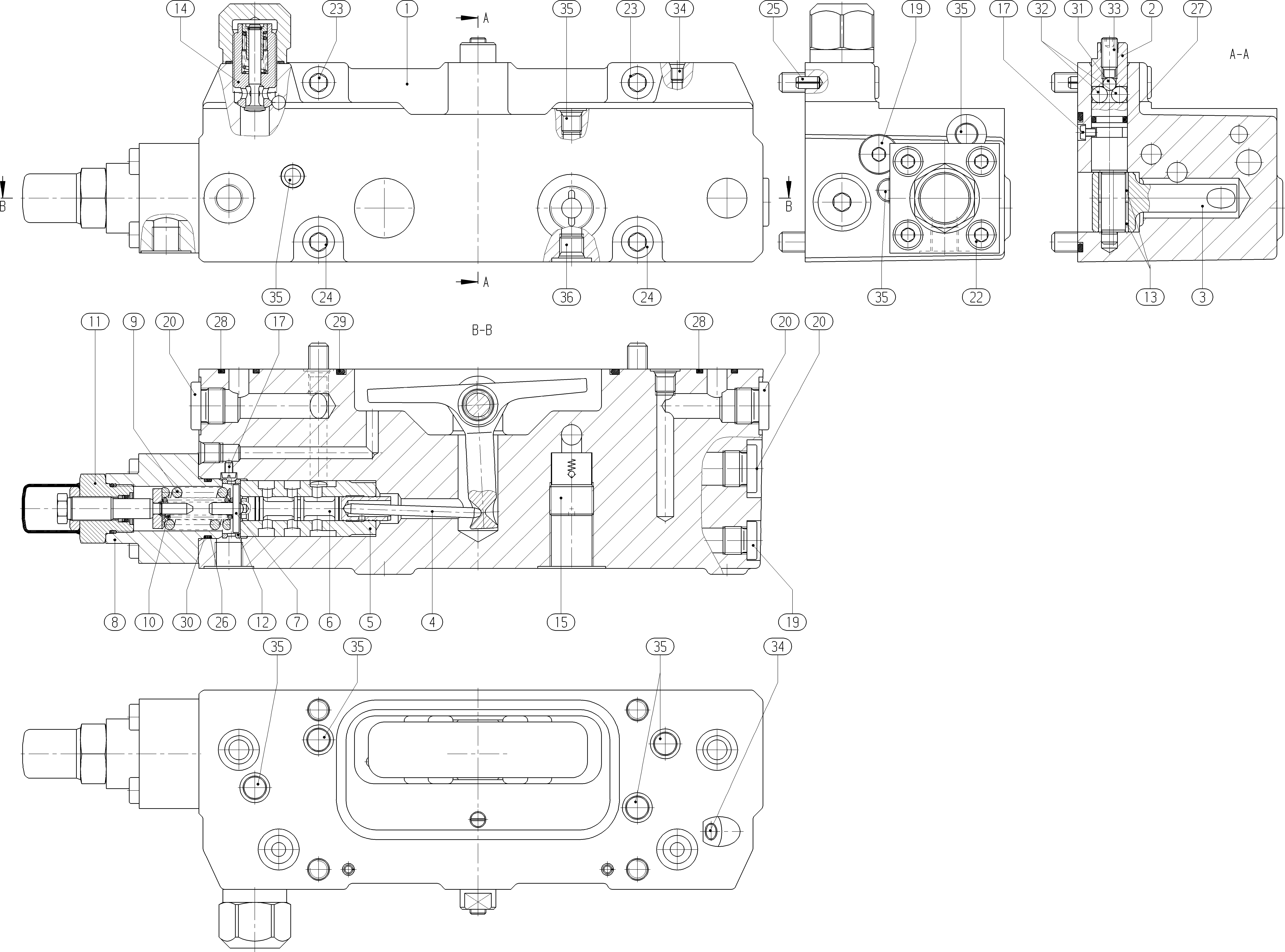

Baugruppe
VALVER902517722
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910983987 | VALVE HOUSING | 1 | ||
| R910917017 | ECCENTRIC PIN | 1 | ||
| R910917051 | LEVER | 1 | ||
| R910917119 | STRAIGHT PIN | 1 | ||
| R910917120 | CONTROL SLEEVE | 1 | ||
| R910914305 | VALVE SPOOL | 1 | ||
| R910914306 | SPRING DISK | 1 | ||
| R910999331 | SPRING HOUSING | 1 | ||
| R910927035 | COMPRESSION SPRING | 1 | ||
| R910927034 | COMPRESSION SPRING | 1 | ||
| R902532285 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R910929747 | RING | 1 | ||
| R910909603 | NEEDLE-ROLLER ASSEMBLY | 2 | ||
| R902417140 | CHECK VALVED | 1 | ||
| R910979807 | CHECK VALVE | 1 | ||
| R910945471 | SOCKET HEAD CAP SCREW | 2 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R909156651 | SCREW PLUGD | 3 | ||
| R910806668 | SOCKET HEAD CAP SCREW | 4 | ||
| R910119091 | SOCKET HEAD CAP SCREW | 2 | ||
| R910911816 | SOCKET HEAD CAP SCREW | 2 | ||
| R900002645 | SLOTTED SPRING PIN | 2 | ||
| R910902854 | O-RINGD | 1 | ||
| R910518336 | O-RINGD | 1 | ||
| R913028089 | AXIAL SEALD | 4 | ||
| R910919986 | O-RINGD | 1 | ||
| R910921451 | BACKUP RINGD | 1 | ||
| R910977244 | BALL | 1 | ||
| R910101559 | BALL | 2 | ||
| R909083516 | SETSCREW | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 2 |
