Baugruppe

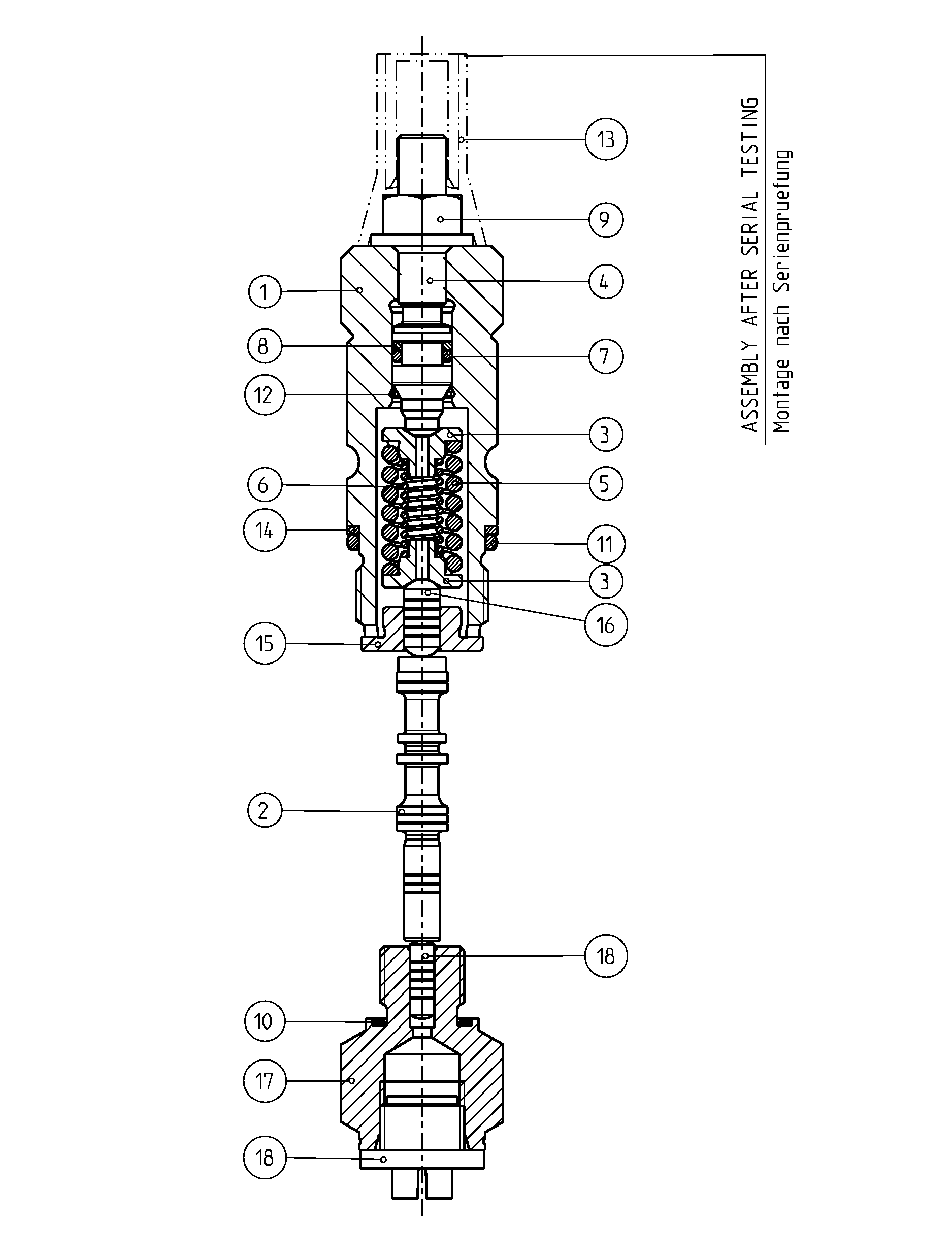

CONTROL ELEMENTR902517908
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902514432 | SCREW PLUG | 1 | ||
| R902514433 | VALVE SPOOL | 1 | ||
| R902465399 | SPRING DISK | 2 | ||
| R902548796 | STUD BOLT | 1 | ||
| R902565661 | COMPRESSION SPRING | 1 | ||
| R902561423 | COMPRESSION SPRING | 1 | ||
| R910080519 | O-RING | 1 | ||
| R910946269 | BACKUP RING | 1 | ||
| R910783307 | DUMMY | 1 | ||
| R902602257 | SEAL RING | 1 | ||
| R910530352 | O-RING | 1 | ||
| R909154421 | SNAP RING | 1 | ||
| R909154494 | SAFETY CAP | 1 | ||
| R913004199 | BACKUP RING | 1 | ||
| R902514434 | BUSHING | 1 | ||
| R902514435 | CONTROL PISTON | 1 | ||
| R902518309 | THREADED PART | 1 | ||
| R902518310 | CONTROL PISTON | 1 | ||
| R902602008 | SEAL SCREW | 1 |
