Baugruppe

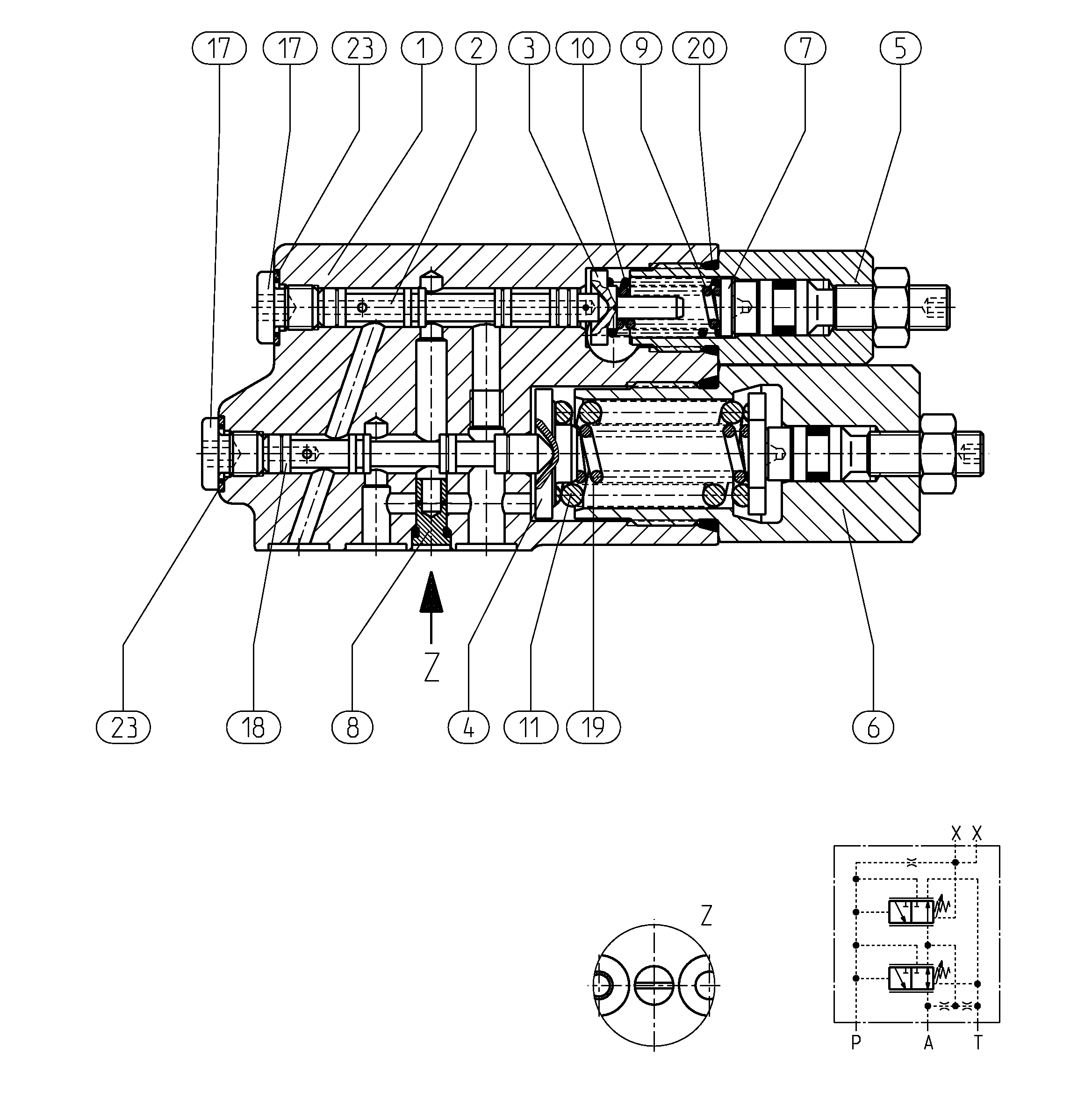

CONTROL VALVER902532689
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910961378 | VALVE HOUSING | 1 | ||
| R910913047 | VALVE SPOOL | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902449500 | SPRING DISK | 1 | ||
| R902532690 | SERVO UNIT Stückliste der Baugruppe →L | 1 | ||
| R902532691 | SERVO UNIT Stückliste der Baugruppe →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902532692 | ORIFICE | 1 | ||
| R910924695 | COMPRESSION SPRING | 1 | ||
| R910924709 | COMPRESSION SPRING | 1 | ||
| R910707031 | COMPRESSION SPRING | 1 | ||
| R910933812 | SCREW PLUG | 2 | ||
| R910900311 | VALVE SPOOL | 1 | ||
| R910911509 | COMPRESSION SPRING | 1 | ||
| R910918134 | BONDED SEAL RING | 2 |
