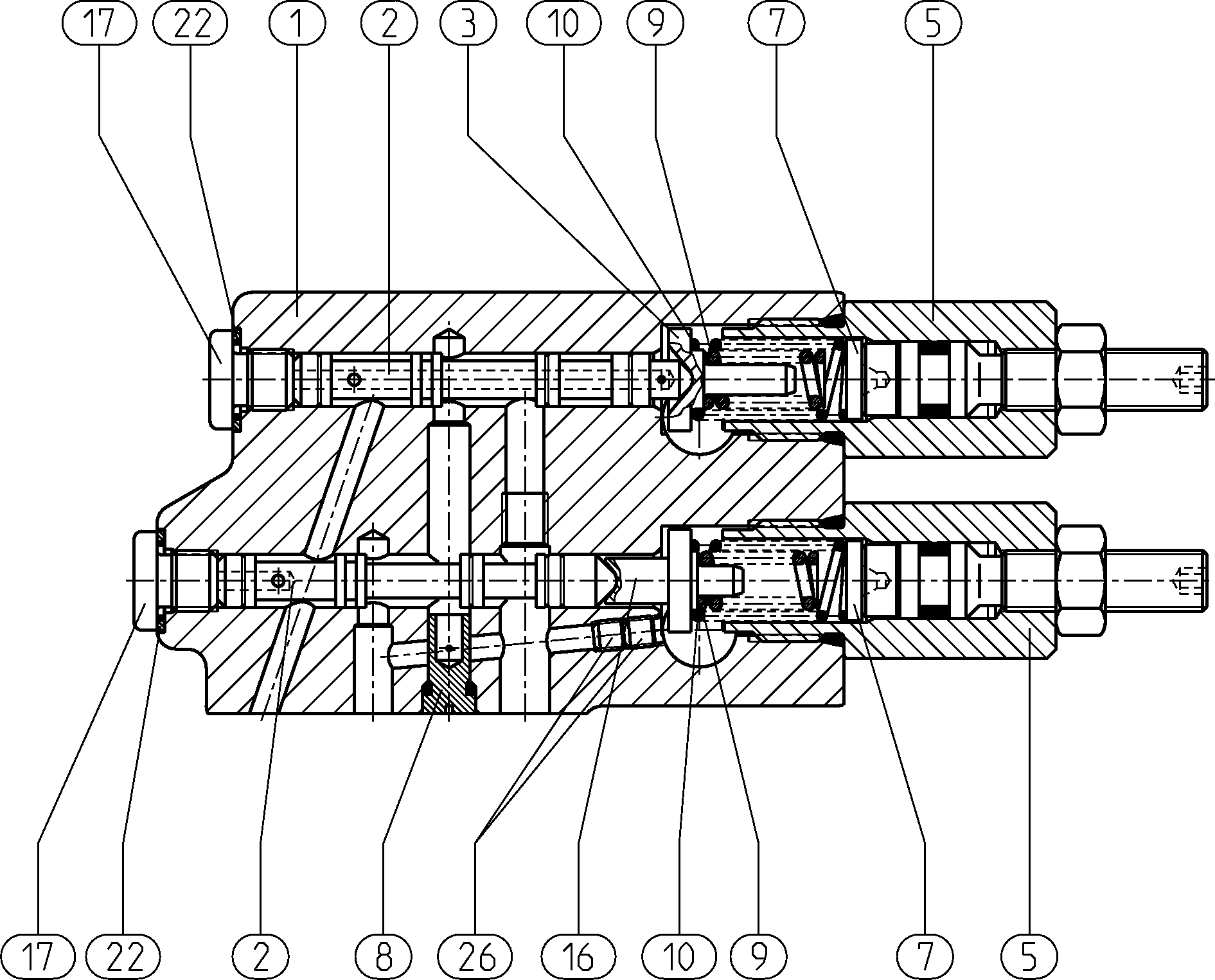

Baugruppe
CONTROL VALVER902533313
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902447608 | VALVE HOUSING | 1 | ||
| R910913047 | VALVE SPOOL | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902477202 | SERVO UNIT Stückliste der Baugruppe →L | 2 | ||
| R910900362 | WASHER | 2 | ||
| R902451582 | ORIFICE Stückliste der Baugruppe →L | 1 | ||
| R910924695 | COMPRESSION SPRING | 2 | ||
| R910924709 | COMPRESSION SPRING | 2 | ||
| R910914826 | SPRING DISK | 1 | ||
| R910933812 | SCREW PLUG | 2 | ||
| 18 | R910900311 | VALVE SPOOL | 1 | |
| R910642827 | BONDED SEAL RINGD | 2 | ||
| R910914741 | SETSCREW | 2 |
