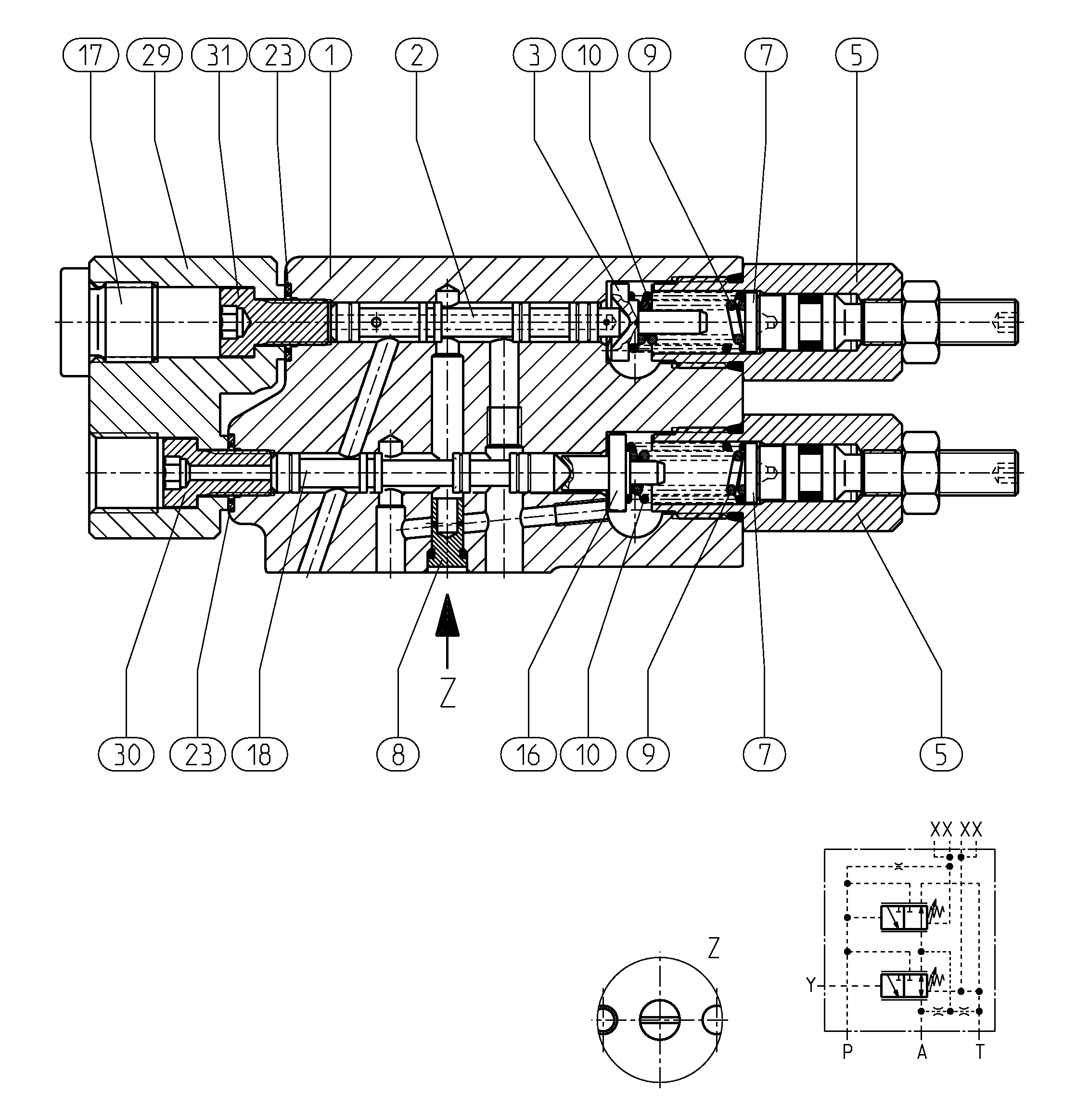

Baugruppe
CONTROL VALVER902533465
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902447608 | VALVE HOUSING | 1 | ||
| R910913047 | VALVE SPOOL | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902477202 | SERVO UNIT Stückliste der Baugruppe →L | 2 | ||
| R910900362 | WASHER | 2 | ||
| R902451582 | ORIFICE Stückliste der Baugruppe →L | 1 | ||
| R910924695 | COMPRESSION SPRING | 2 | ||
| R910924709 | COMPRESSION SPRING | 2 | ||
| R910914826 | SPRING DISK | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R910900495 | VALVE SPOOL | 1 | ||
| 22 | R910642827 | BONDED SEAL RINGD | 2 | |
| R910972820 | DOUBLE ADAPTER | 1 | ||
| R910965426 | HOLLOW BOLT | 1 | ||
| R902423290 | SCREW | 1 |
