Baugruppe

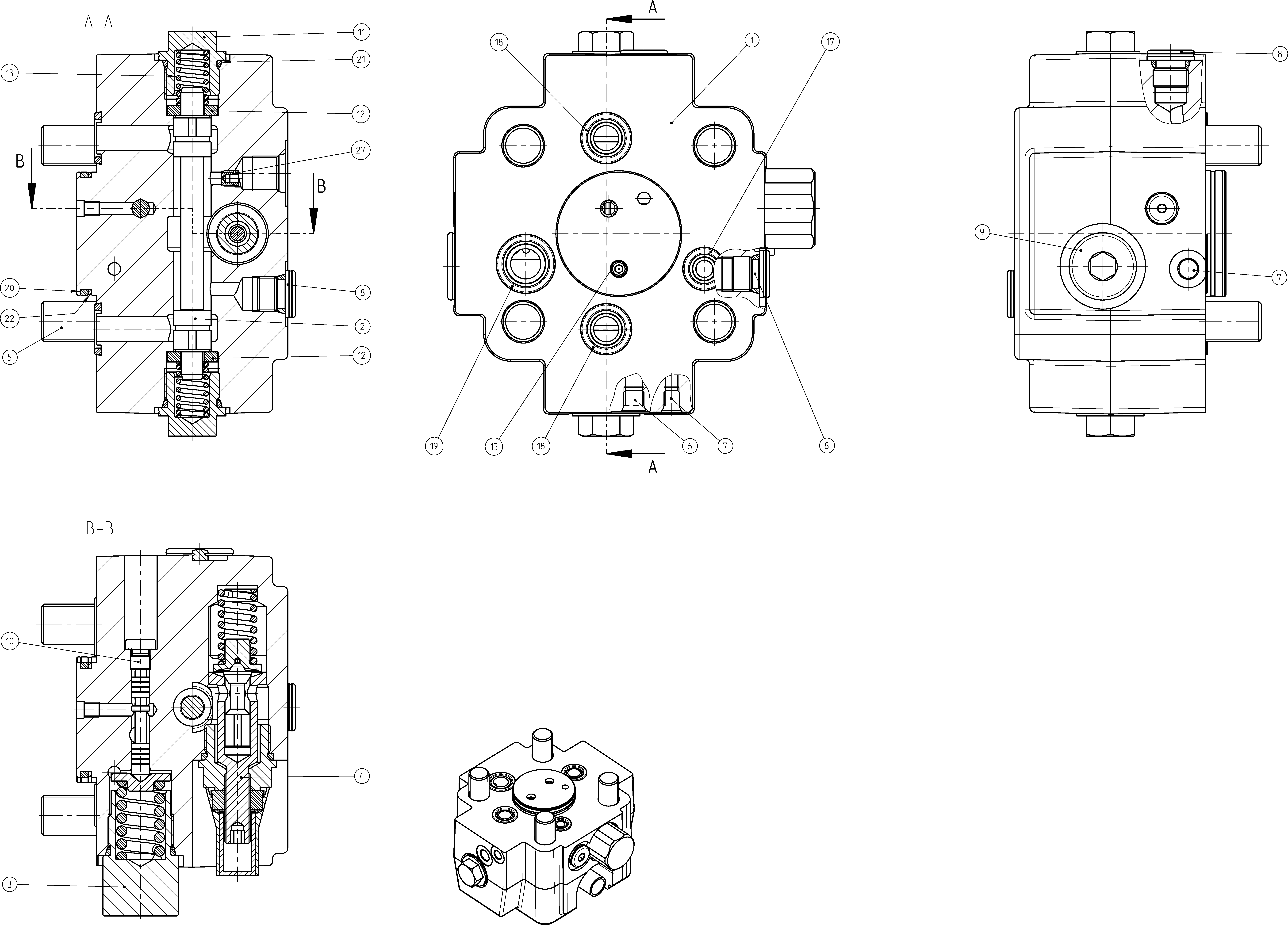

COVERR902538034
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902535289 | COVER Stückliste der Baugruppe →L | 1 | ||
| R902455443 | FLUSHING PISTON | 1 | ||
| R910988553 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | ||
| R902215659 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | ||
| R909083139 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909157039 | SCREW PLUG | 3 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R909156863 | SCREW PLUG | 1 | ||
| R902124381 | SCREW PLUG | 2 | ||
| R902182251 | WASHER | 2 | ||
| R902492930 | COMPRESSION SPRING | 2 | ||
| R910436941 | NOZZLE | 1 | ||
| R910518336 | O-RING | 1 | ||
| R910302139 | O-RING | 2 | ||
| R910545155 | O-RING | 1 | ||
| R910929855 | O-RING | 1 | ||
| R902600738 | O-RING | 2 | ||
| R910929791 | BACKUP RING | 1 | ||
| R909156493 | NOZZLE | 1 |
