Baugruppe

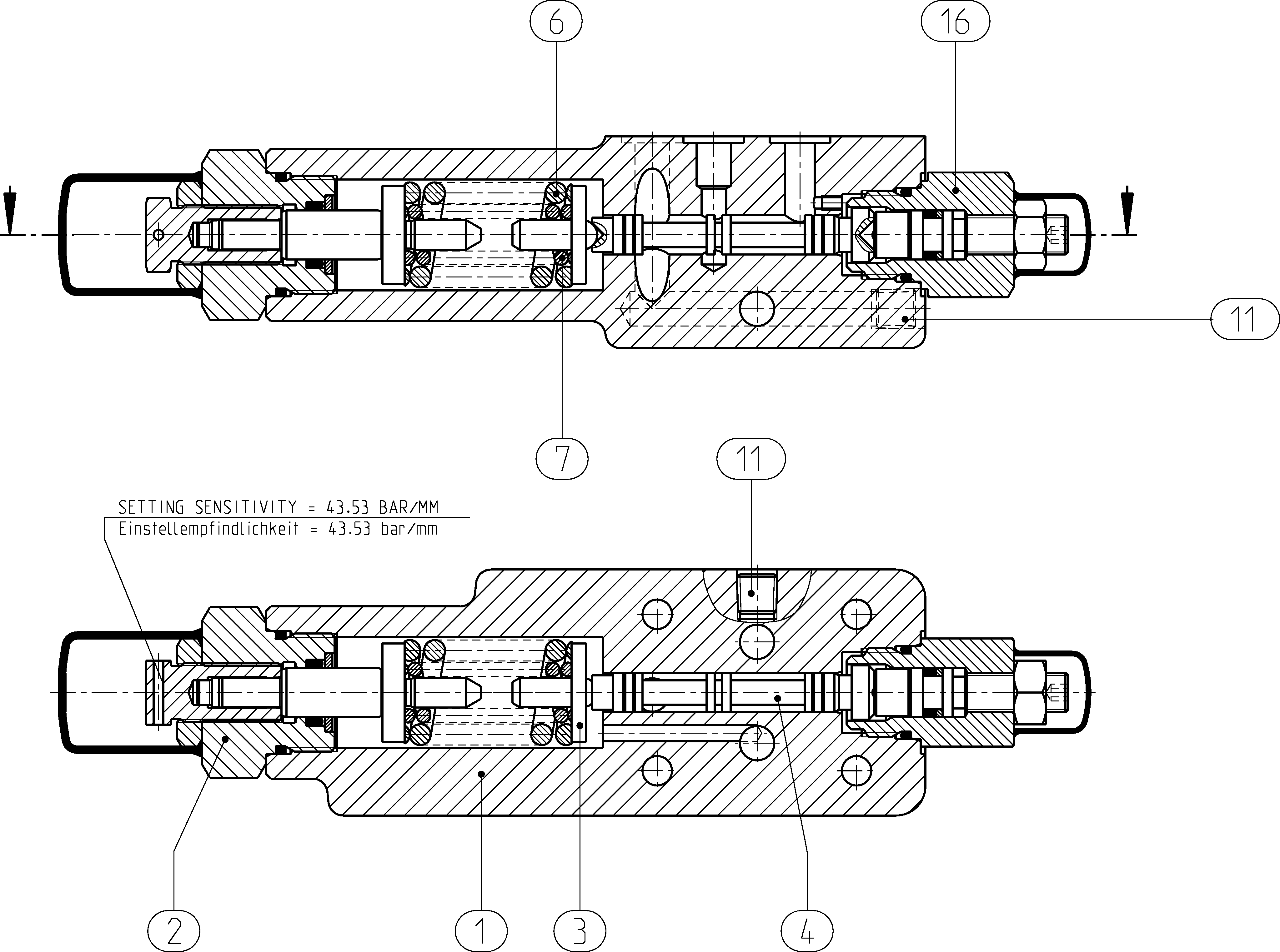

CONTROL VALVER902539092
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R910921088 | VALVE HOUSING | 1 | ||
| R902532286 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R910799793 | SPRING DISK | 1 | ||
| R910921026 | VALVE SPOOL | 1 | ||
| R910771139 | COMPRESSION SPRING | 1 | ||
| R910771147 | COMPRESSION SPRING | 1 | ||
| R910230545 | SCREW PLUG | 2 | ||
| R910960006 | STROKE LIMITER Stückliste der Baugruppe →L | 1 | ||
| 61 | — | PLATE | 1 | |
| 91 | R902556829 | NAMEPLATE | 1 | |
| 92 | — | GROOVED NAIL | 2 |
