Baugruppe

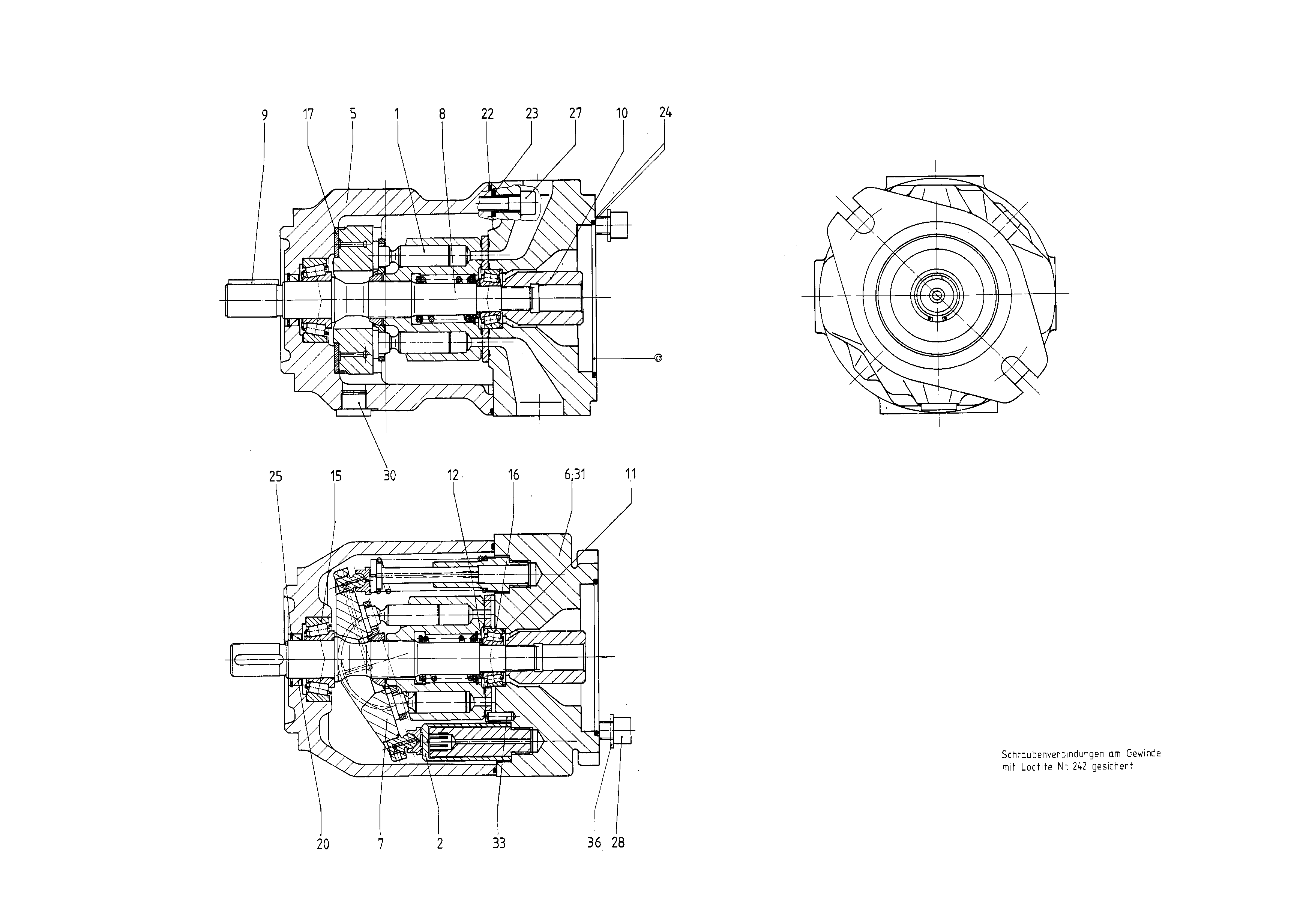

BASE UNITR902541308
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902439597 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R910916304 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902550216 | PUMP HOUSING | 1 | ||
| 6 | R910995904 | CONNECTION PLATE | 1 | |
| R910960813 | SWASH PLATE | 1 | ||
| R902415913 | DRIVE SHAFT | 1 | ||
| R910125539 | PARALLEL KEY | 1 | ||
| R902436199 | SPLINED COUPLING | 1 | ||
| 12 | R902400789 | ADJUSTMENT SHIM | 1 | |
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| R910976090 | O-RINGD | 1 | ||
| R913052104 | R-RINGD | 4 | ||
| R910357049 | O-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| 31 | R910942668 | BREAK-OFF PLUG | 2 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 |
