Baugruppe

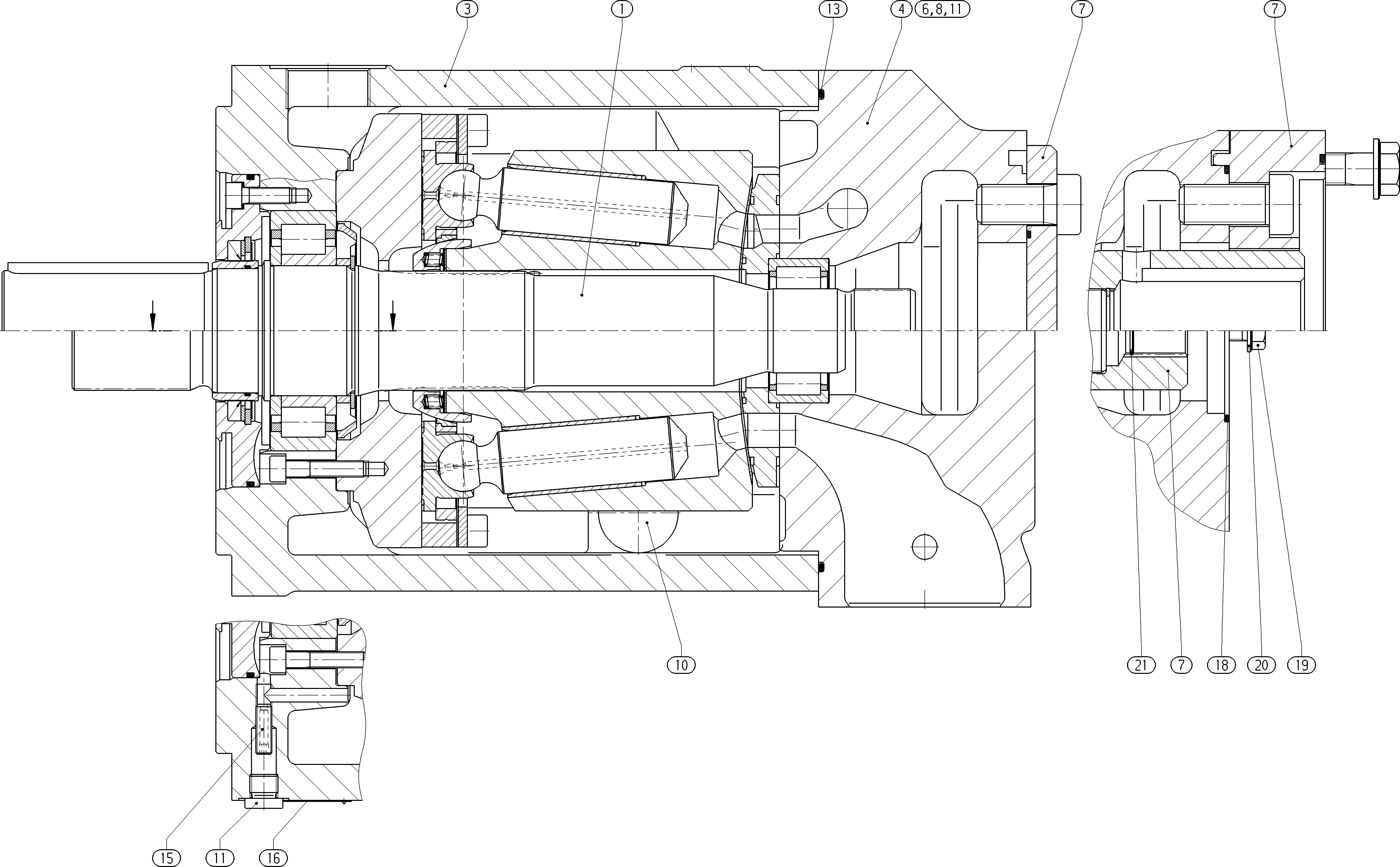

AXIAL-PISTON PUMPR902543419
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902413432 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R910992888 | PUMP HOUSING | 1 | ||
| R902465910 | CONNECTION PLATE | 1 | ||
| R910983698 | BLANK FLANGE | 1 | ||
| R902447007 | ATTACHMENT KIT | 1 | ||
| R902572930 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R910513776 | O-RINGD | 1 | ||
| R910979785 | THROTTLE SCREW | 1 | ||
| R910979852 | REFERENCE PLATE | 1 | ||
| 27 | R902651071 | O-RING | 1 | |
| 61 | R902805709 | SHIPPING PROTECTION | 1 | |
| 62 | R902602206 | SEAL SCREW | 1 | |
| 63 | R902564145 | SHIPPING PROTECTION | 1 | |
| 71 | R902568998 | FLANGE COVER Stückliste der Baugruppe →L | 1 |
