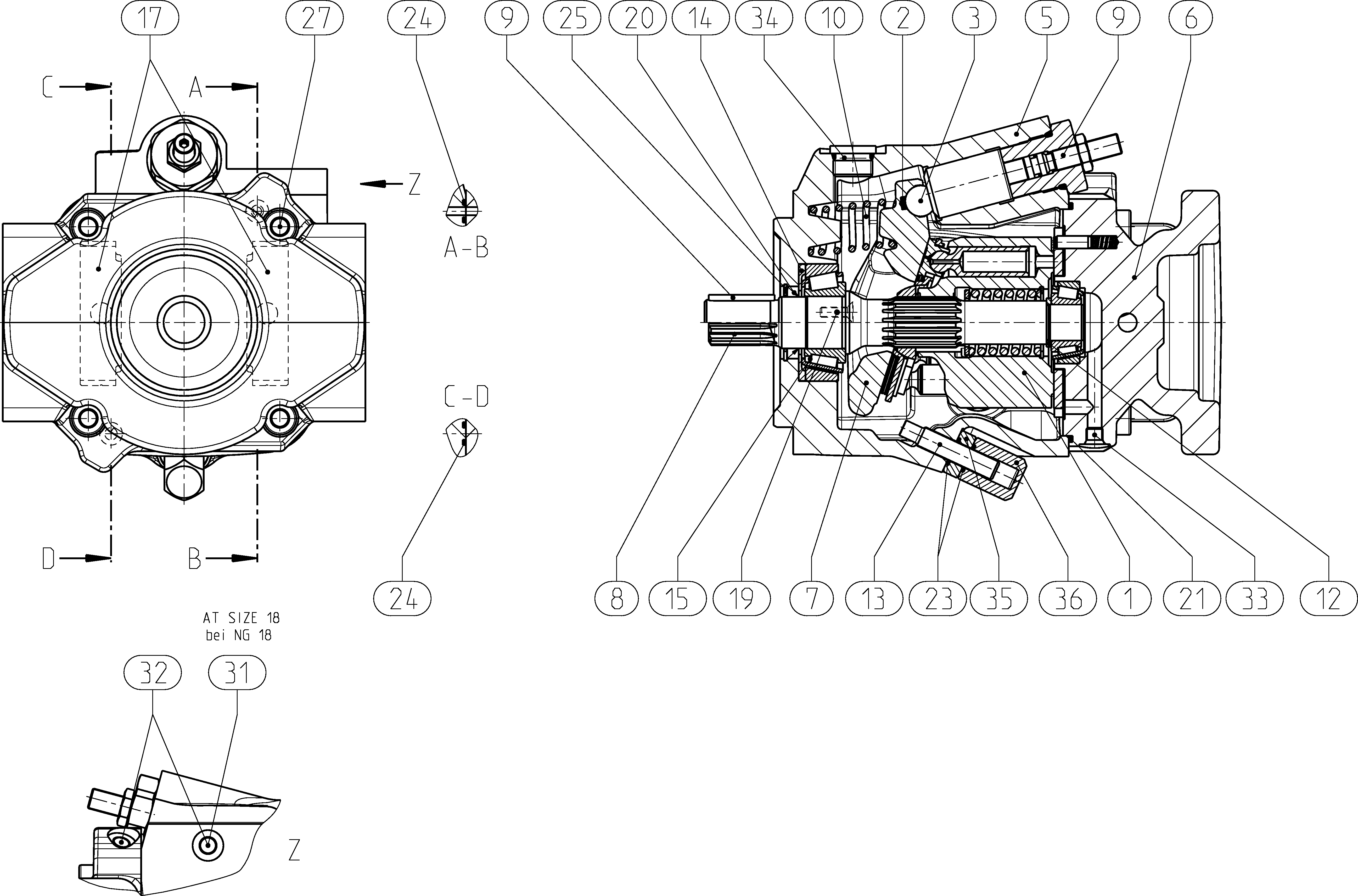

Baugruppe
BASE UNITR902543626
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902543728 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R902473753 | COMPRESSION SPRING | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902544066 | PUMP HOUSING | 1 | ||
| R902535095 | CONNECTION PLATE | 1 | ||
| R902543578 | SWASH PLATE | 1 | ||
| R902413744 | DRIVE SHAFT | 1 | ||
| R902543627 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| R902455142 | COMPRESSION SPRING | 1 | ||
| R902400729 | ADJUSTMENT SHIM | 1 | ||
| R902464777 | STOP SCREW | 1 | ||
| R902545736 | STOP RING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| 16 | R909086994 | TAPERED-ROLLER BEARING | 1 | |
| R902454900 | BEARING SHELL | 1 | ||
| 18 | R902454899 | BEARING SHELL | 1 | |
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R910900853 | SHAFT SEALING RING | 1 | ||
| R910404209 | O-RING | 1 | ||
| R910642827 | BONDED SEAL RING | 2 | ||
| R910940735 | R-RING | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910806668 | SOCKET HEAD CAP SCREW | 4 | ||
| 30 | R910901969 | SCREW PLUG | 2 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910757519 | STRAIGHT PIN | 1 | ||
| R910913806 | NUT | 1 | ||
| R910913805 | CAP NUT | 1 | ||
| 37 | R909152074 | SLOTTED SPRING PIN | 1 |
