Baugruppe

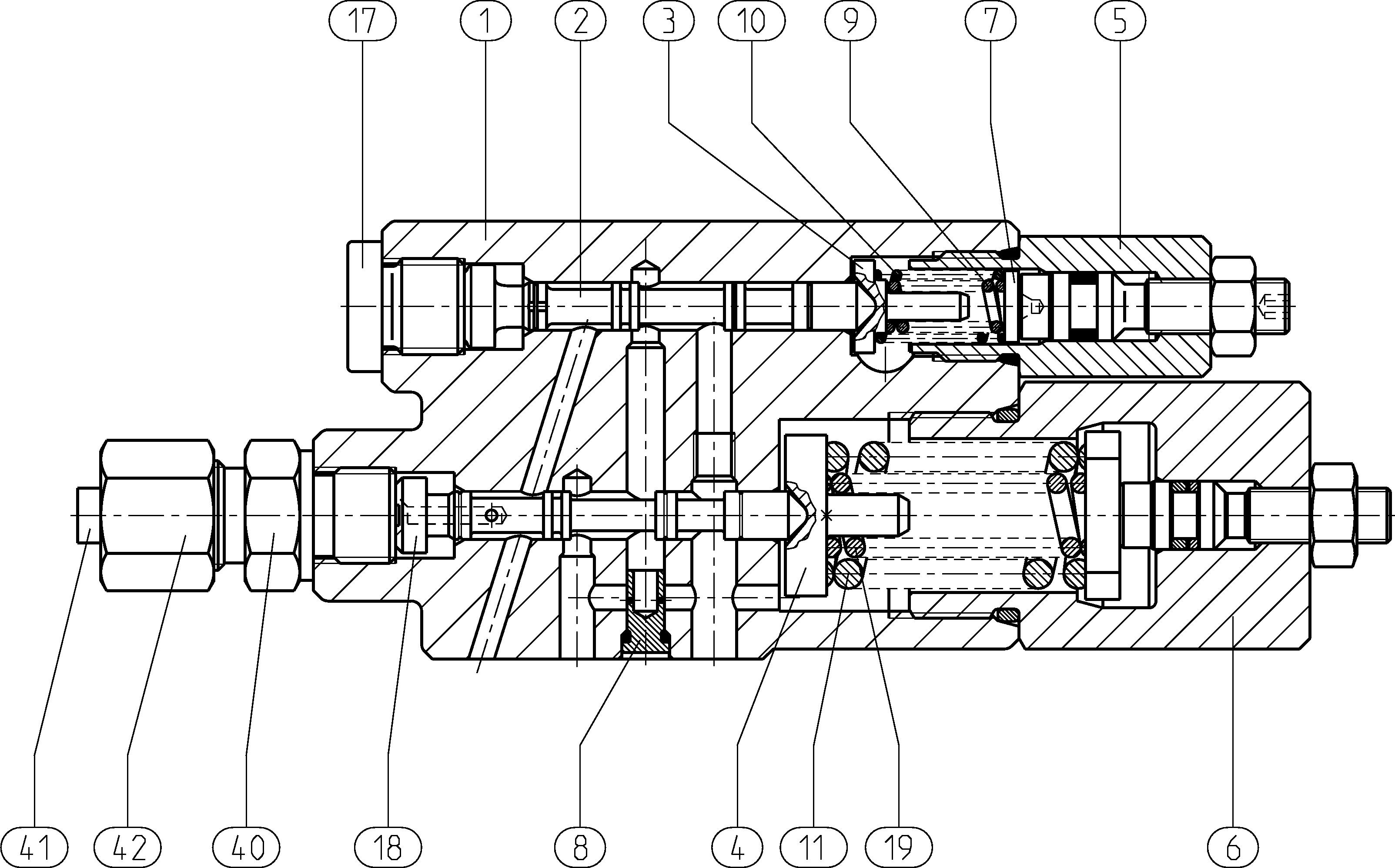

CONTROL VALVER902544354
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902466252 | VALVE HOUSING | 1 | ||
| R902466253 | VALVE SPOOL | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R902447810 | SPRING DISK | 1 | ||
| R902451578 | SERVO UNIT Stückliste der Baugruppe →L | 1 | ||
| R902456405 | SERVO UNIT Stückliste der Baugruppe →L | 1 | ||
| R910900362 | WASHER | 1 | ||
| R902451582 | ORIFICE Stückliste der Baugruppe →L | 1 | ||
| R910924695 | COMPRESSION SPRING | 1 | ||
| R910924709 | COMPRESSION SPRING | 1 | ||
| R910771139 | COMPRESSION SPRING | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R902447807 | VALVE SPOOL | 1 | ||
| R910771147 | COMPRESSION SPRING | 1 | ||
| R900763038 | MALE CONNECTOR | 1 | ||
| R900012979 | PLUG | 1 | ||
| R900029703 | UNION NUT | 1 |
