Baugruppe

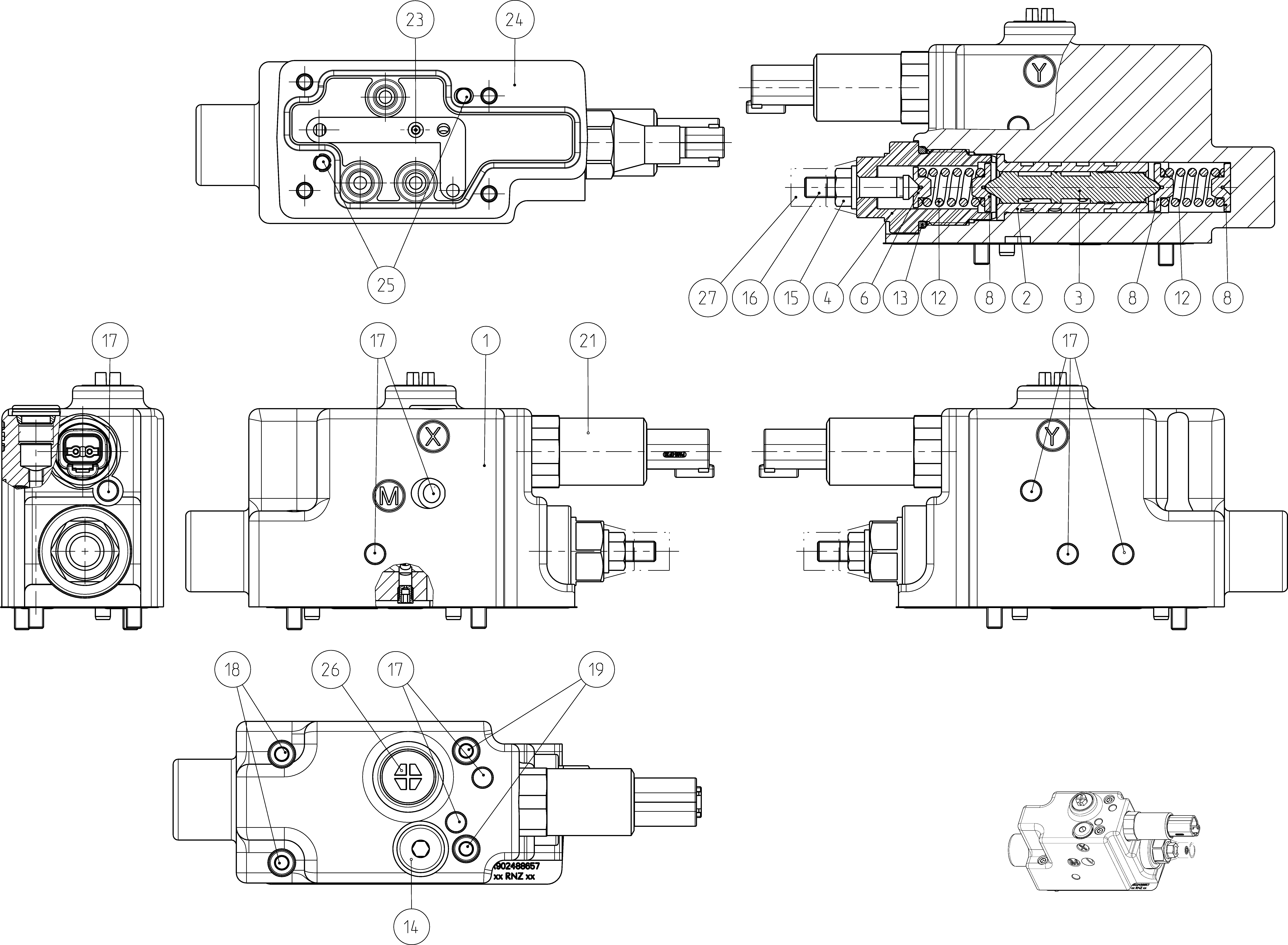

CONTROL VALVER902546249
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902546248 | VALVE HOUSING | 1 | ||
| R902521589 | CONTROL SLEEVE | 1 | ||
| R902520344 | CONTROL PISTON | 1 | ||
| R902553197 | CONTROL COVER | 1 | ||
| R902520401 | SPRING DISK | 1 | ||
| R902521178 | SPRING DISK | 3 | ||
| R902520389 | COMPRESSION SPRING | 2 | ||
| R913009081 | O-RING | 1 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R910783307 | DUMMY | 1 | ||
| R902551478 | SETSCREW | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R910110159 | SOCKET HEAD CAP SCREW | 2 | ||
| R910359491 | SOCKET HEAD CAP SCREW | 2 | ||
| R901385144 | PRESSURE REDUCING VALVE | 1 | ||
| R909156494 | NOZZLE | 1 | ||
| R902531395 | FLAT GASKET | 1 | ||
| R900716536 | STRAIGHT PIN | 2 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R909154493 | SAFETY CAP | 1 |
