Baugruppe

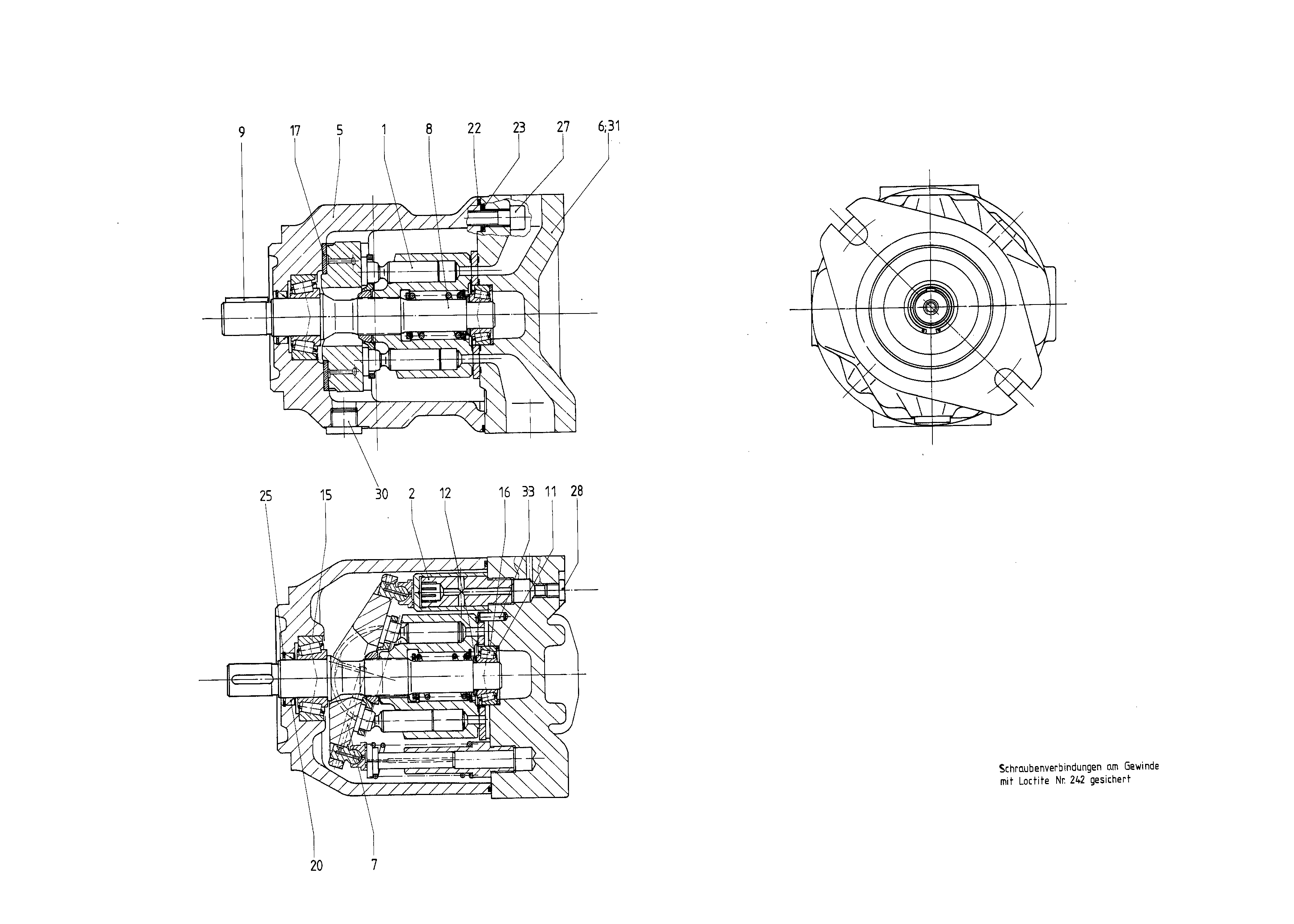

BASE UNITR902548660
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R902439596 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| R910915210 | ADJUSTING PIECE Stückliste der Baugruppe →L | 1 | ||
| 5 | R902550216 | PUMP HOUSING | 1 | |
| 6 | R910989771 | CONNECTION PLATE | 1 | |
| R910960999 | SWASH PLATE | 1 | ||
| 8 | R902415569 | DRIVE SHAFT | 1 | |
| R910125539 | PARALLEL KEY | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| 16 | R902438110 | TAPERED-ROLLER BEARING | 1 | |
| R910902778 | BEARING SHELL | 2 | ||
| R910794325 | SHAFT SEALING RINGD | 1 | ||
| R910976090 | O-RINGD | 1 | ||
| R913052104 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| 28 | R909156649 | SCREW PLUGD | 2 | |
| R909156651 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R902533908 | STRAIGHT PIN | 1 |
